$7,901.84

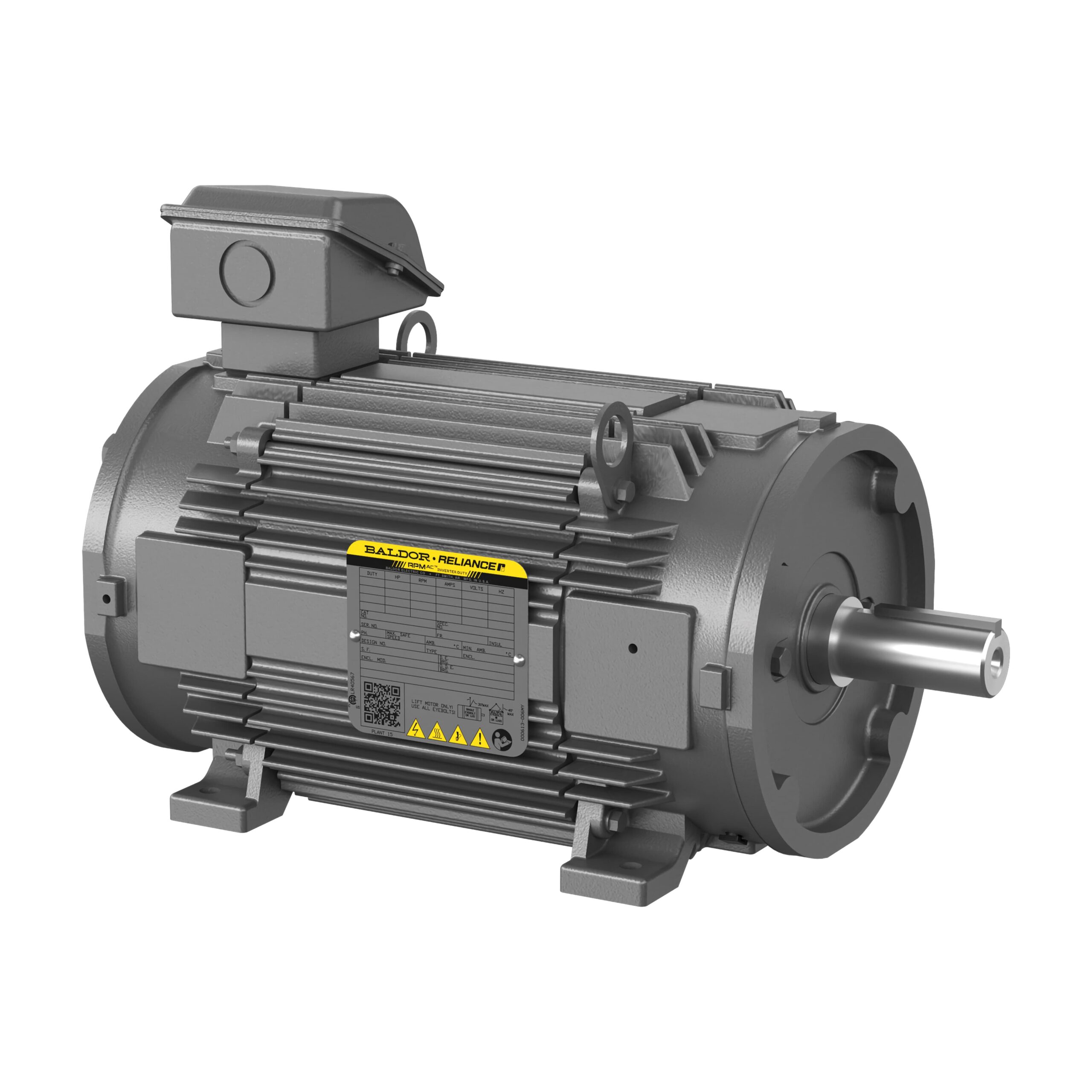

The Baldor-Reliance 1000:1 Turndown ZDNRPM18054C motor delivers exceptional performance and efficiency for demanding industrial, commercial, and HVAC applications. Built with 3 phase, 5 HP, 460 Voltage Rating, 1800 RPM Speed, 1838C Frame, C-Face / Rigid mounting, 7.4 Amps, H Insulation Class, Continuous Duty, TENV Enclosure Type, this motor ensures dependable power and long-term reliability.
Featuring a 3, TENV, and C-Face / Rigid, this Baldor motor runs cooler, quieter, and longer—making it ideal for continuous operation in pumps, fans, compressors, conveyors, and gear reducers.
Whether used in manufacturing, agriculture, or HVAC systems, the Baldor-Reliance 1000:1 Turndown ZDNRPM18054C provides the durability and performance professionals trust worldwide.
| Brand | Baldor |
|---|---|
| General Category | Motors > 1000:1 Turndown |
| Product Category | Motors > 1000:1 Turndown |
| Horsepower | 5 |
| Voltage | 460 |
| RPM | 1800 |
| Amps | 7.4 |
| Frequency | 60 Hz |
| Frame | 1838C |
| Enclosure | TENV |
| Rotation | Reversible |
| Mounting | C-Face / Rigid |
| Phases | 3 |
| Motor Orientation | Horizontal |
| Duty Cycle | Continuous |
| Insulation Class | H |
| Power Factor | 74.5 |
| Service Factor | 1 |
| De Bearing Type | 45BC02JPP30A |
| Ode Bearing Type | 35BC02JPP30A |
| Shaft Diameter | 1.125" |
| Shaft Extension | 2.62" |
| C Dim | 17.87" |
| Frame Material | Aluminum |
| Weight | 143lb |
| Url-datapack | x |
| Ambient Temp | 40 °C |
| Grease | Polyrex EM |
| Greasable | Yes |
| Spec Number | P18T0369 |
| Rpm Actual | 1800 |
| Double Drilled | No |
| Baldor Datapack | https://www.baldor.com/api/products/ZDNRPM18054C/infopacket |
Enter your email and we’ll confirm availability for this item before you place your order.
Baldor-Reliance Motors is a trusted manufacturer of IEC electric motors designed for reliability, energy efficiency, and long service life. Our three‑phase TEFC motors are engineered for industrial performance in pumps, fans, compressors, conveyors, and HVAC systems. With a strong focus on innovation, sustainability, and global customer support, Baldor delivers motors that meet international standards (IE1, IE2, IE3) and provide dependable power for every application.
Matched products based on similar HP, RPM, Frame, Voltage, and Enclosure type.
HP: 5, RPM: 1800, Frame: 1838C, Voltage: 460, Enclosure: TENV
