XM14242T Explosion Proof by Baldor

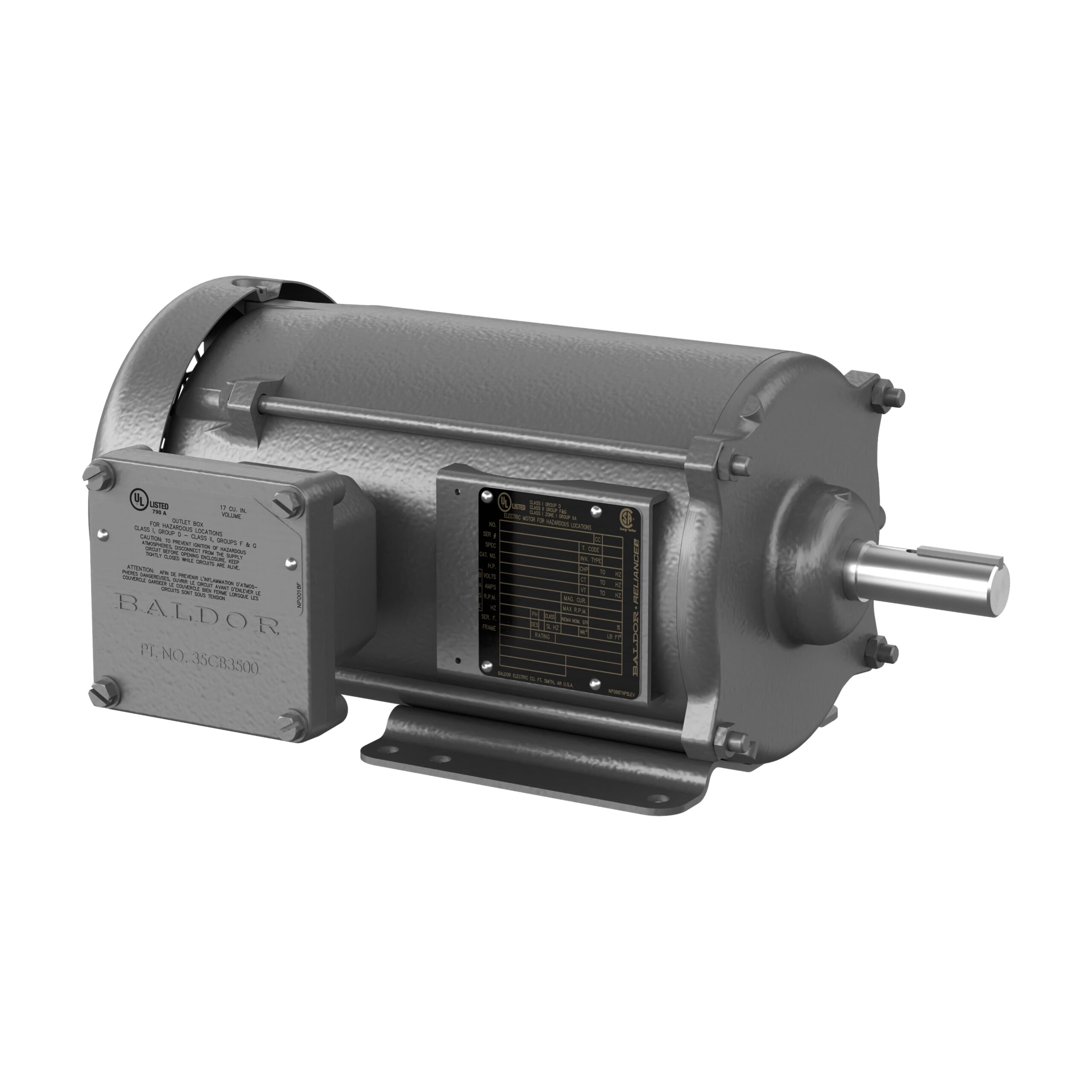

Baldor XM14242T 2 HP 230, 460V 1800 RPM 145T TEFC-XP 3-Phase Motor

Name: Baldor XM14242T 2 HP 230, 460V 1800 RPM 145T TEFC-XP 3-Phase Motor
Brand: Baldor
SKU: XM14242T
Price: 1720.39 CAD
Availability: LimitedAvailability

Explosion Proof Motor

Brand: Baldor

Category: Explosion Proof, Motors

$1,720.39

2HP

230, 460Voltage

1800RPM

145TFrame

The Baldor-Reliance Explosion Proof XM14242T motor delivers exceptional performance and efficiency for demanding industrial, commercial, and HVAC applications. Built with 3 phase, 2 HP, 230, 460 Voltage Rating, 1800 RPM Speed, 145T Frame, Rigid mounting, 5.0/5.40/2.50/2.70 Amps, F Insulation Class, Continuous Duty, TEFC-XP Enclosure Type, this motor ensures dependable power and long-term reliability.

Featuring a 3, TEFC-XP, and Rigid, this Baldor motor runs cooler, quieter, and longer—making it ideal for continuous operation in pumps, fans, compressors, conveyors, and gear reducers.

Whether used in manufacturing, agriculture, or HVAC systems, the Baldor-Reliance Explosion Proof XM14242T provides the durability and performance professionals trust worldwide.

Authorized Canadian distributorExpert tech support (phone & email)30-day return policy

Brand	Baldor
General Category	Motors > Explosion Proof
Product Category	Motors > Explosion Proof
Horsepower	2
Voltage	230, 460
RPM	1800
Amps	5.0/5.40/2.50/2.70
Frequency	60 Hz
Frame	145T
Enclosure	TEFC-XP
Rotation	Reversible
Mounting	Rigid
Phases	3
Motor Orientation	Horizontal
Number Of Poles	4
Duty Cycle	Continuous
Efficiency	86.5
Insulation Class	F
KVA Code	J
NEMA Design	B
Speeds	1 Speed
Power Factor	80
Service Factor	1
Shaft Diameter	0.875"
Shaft Extension	2.25"
C Dim	16.09"
Frame Material	Rolled Steel
Weight	59lb
Url-datapack	x
Warranty	3-Year
Connection Box Location	F1Configuration
Ambient Temp	40°C
Grease	Polyrex EM
Greasable	No
Spec Number	35-0000-1136
Rpm Actual	1755
Double Drilled	No
Baldor Datapack	https://www.baldor.com/api/products/XM14242T/infopacket

Enter your email and we’ll confirm availability for this item before you place your order.

Product Info

Brand: Baldor

HP: 2

Voltage: 230, 460

RPM: 1800

Amperage: 5.0/5.40/2.50/2.70

Frame: 145T

Enclosure: TEFC-XP

Phase: 3

Efficiency Rating: 86.5

Mounting Type: Rigid

Insulation Class: F

Service Factor: 1

Duty Cycle: Continuous

Ambient Temperature Rating: 40°C

Baldor-Reliance Motors is a trusted manufacturer of IEC electric motors designed for reliability, energy efficiency, and long service life. Our three‑phase TEFC motors are engineered for industrial performance in pumps, fans, compressors, conveyors, and HVAC systems. With a strong focus on innovation, sustainability, and global customer support, Baldor delivers motors that meet international standards (IE1, IE2, IE3) and provide dependable power for every application.
