$5,193.12

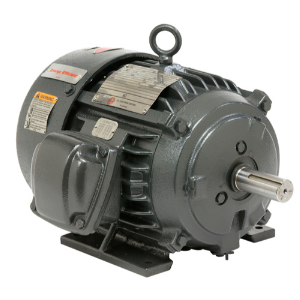

The TECO Westinghouse Explosion Proof XH05045 motor delivers legendary power and modern performance for demanding industrial, marine, and utility applications. Built with 3 phase, 50 HP, 575 Voltage Rating, 1800 RPM Speed, 326T Frame, Rigid mounting, 46.4 Amps, F Insulation Class, Continuous Duty, TEFC-XP Enclosure Type, this motor ensures exceptional reliability, high torque output, and long operational life, even in the harshest environments. Featuring a 3, TEFC-XP, and Rigid, the TECO Westinghouse motor is engineered for efficiency and endurance, utilizing Thermalastic® insulation systems that resist moisture, heat, and thermal stress.
Its robust AC and DC designs, coupled with precision-balanced rotors and heavy-duty bearings, make it ideal for continuous-duty applications such as pumps, compressors, conveyors, fans, and marine drives.
Each unit is built to meet or exceed NEMA and IEC standards, supporting both direct-on-line and inverter-duty systems. Whether used in steel mills, petrochemical facilities, mining operations, or power generation, the TECO Westinghouse Explosion Proof XH05045 motor delivers the durability, efficiency, and performance trusted by professionals worldwide.
Looking for expert help selecting the right TECO Westinghouse motor? Contact Electracore, your trusted Canadian TECO Westinghouse supplier, for genuine products, technical support, and fast nationwide shipping.
| Total Sales | 0 |
|---|---|
| Brand | TECO-Westinghouse |
| General Category | Motors > Explosion Proof |
| Horsepower | 50 |
| Voltage | 575 |
| RPM | 1800 |
| Amps | 46.4 |
| Frequency | 60 Hz |
| Frame | 326T |
| Enclosure | TEFC-XP |
| Rotation | Reversible |
| Mounting | Rigid |
| Phases | 3 |
| Motor Orientation | Horizontal |
| Number Of Poles | 4 |
| Duty Cycle | Continuous |
| Efficiency | 94.5 |
| Insulation Class | F |
| KVA Code | G |
| NEMA Design | C |
| Power Rating In Kw | 37.3 |
| Speeds | 1 Speed |
| Power Factor | 85.5 |
| Service Factor | 1.15 |
| De Bearing Size | 6312 |
| Ode Bearing Size | 6212 |
| Shaft Diameter | 2.125" |
| Shaft Extension | 5.15" |
| C Dim | 31.42" |
| Frame Material | Cast Iron |
| Weight | 354.195 |
| Warranty | 3-Year |
| Locked Rotor Current | 290 AMP |
| Leads | 3 |
| Connection | Delta |
| Variable Torque Ratio | 20:01 |
| Constant Torque Ratio | 10:01 |
| Connection Box Location | F1 |
| Ambient Temp | -40 to 40 °C |
| Temp Code | T3B |
| Grease | Polyrex EM |
| Greasable | Yes |
| Temp Code Sine Wave Power | T3B |
| Dim Unit | cm |
| Length | 79 |
| Width | 64 |
| Height | 41 |
| Weight Unit | kg |
| Teco Datapack Link | /product-pdf/TECO-DATAPACK/tSbQdv9b-g8d-50-9.pdf |
| Teco Manual Link | /product-pdf/TECO-MANUALS/t9Tm7OMRj_ik-36-15.pdf |
| Teco Brochure Link | /product-pdf/TECO_BROCHURE/tyrSwERcD99u-31-9.pdf |
| Teco Features Link | /product-pdf/TECO-FEATURESHEET/t9Tm6AtSGn9F-47-1.pdf |
| Ref Product Title 1 | x50p2g |
| Product 1 Url | /product/x50p2g |
| Ref Product Title 2 | hx050504npw21x |
| Product 2 Url | /product/hx050504npw21x |
| Ref Product Title 3 | u032a |
| Product 3 Url | /product/u032a |
| Product 4 Url | /product/ |
| Teco Datapack | tSbQdv9b-g8d-50-9.pdf |
| Teco Manual | t9Tm7OMRj_ik-36-15.pdf |
| Teco Brochure | tyrSwERcD99u-31-9.pdf |
| Teco Features | t9Tm6AtSGn9F-47-1.pdf |
