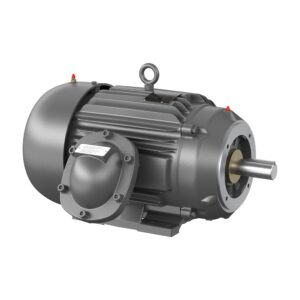

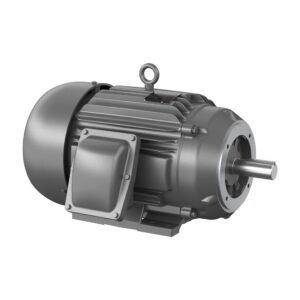

TECO-Westinghouse XC0204C 20 HP 230, 460V 1800 RPM 256TC TEFC-XP 3-Phase Motor

The TECO Westinghouse Explosion Proof XC0204C motor delivers legendary power and modern performance for demanding industrial, marine, and utility applications. Built with 3 phase, 20 HP, 230, 460 Voltage Rating, 1800 RPM Speed, 256TC Frame, C-Face / Rigid mounting, 47.1/23.6 Amps, F Insulation Class, Continuous Duty, TEFC-XP Enclosure Type, this motor ensures exceptional reliability, high torque output, and long operational life, even in the harshest environments. Featuring a 3, TEFC-XP, and C-Face / Rigid, the TECO Westinghouse motor is engineered for efficiency and endurance, utilizing Thermalastic® insulation systems that resist moisture, heat, and thermal stress.

Its robust AC and DC designs, coupled with precision-balanced rotors and heavy-duty bearings, make it ideal for continuous-duty applications such as pumps, compressors, conveyors, fans, and marine drives.

Each unit is built to meet or exceed NEMA and IEC standards, supporting both direct-on-line and inverter-duty systems. Whether used in steel mills, petrochemical facilities, mining operations, or power generation, the TECO Westinghouse Explosion Proof XC0204C motor delivers the durability, efficiency, and performance trusted by professionals worldwide.

Looking for expert help selecting the right TECO Westinghouse motor? Contact Electracore, your trusted Canadian TECO Westinghouse supplier, for genuine products, technical support, and fast nationwide shipping.
