XC0104 Explosion Proof by TECO-Westinghouse Motors

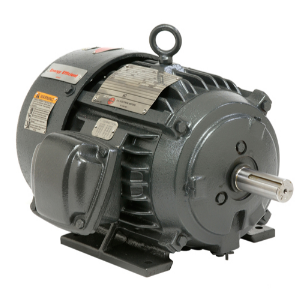

TECO-Westinghouse XC0104 10 HP 230, 460V 1800 RPM 215T TEFC-XP 3-Phase Motor

Name: TECO-Westinghouse XC0104 10 HP 230, 460V 1800 RPM 215T TEFC-XP 3-Phase Motor
Brand: TECO-Westinghouse
SKU: XC0104
Price: 1499.16 CAD
Availability: InStock

Explosion Proof Motor

Brand: TECO-Westinghouse Motors

Category: Explosion Proof, Motors

$1,499.16

The TECO Westinghouse Explosion Proof XC0104 motor delivers legendary power and modern performance for demanding industrial, marine, and utility applications. Built with 3 phase, 10 HP, 230, 460 Voltage Rating, 1800 RPM Speed, 215T Frame, Rigid mounting, 23.3/11.7 Amps, F Insulation Class, Continuous Duty, TEFC-XP Enclosure Type, this motor ensures exceptional reliability, high torque output, and long operational life, even in the harshest environments. Featuring a 3, TEFC-XP, and Rigid, the TECO Westinghouse motor is engineered for efficiency and endurance, utilizing Thermalastic® insulation systems that resist moisture, heat, and thermal stress.

Its robust AC and DC designs, coupled with precision-balanced rotors and heavy-duty bearings, make it ideal for continuous-duty applications such as pumps, compressors, conveyors, fans, and marine drives.

Each unit is built to meet or exceed NEMA and IEC standards, supporting both direct-on-line and inverter-duty systems. Whether used in steel mills, petrochemical facilities, mining operations, or power generation, the TECO Westinghouse Explosion Proof XC0104 motor delivers the durability, efficiency, and performance trusted by professionals worldwide.

Looking for expert help selecting the right TECO Westinghouse motor? Contact Electracore, your trusted Canadian TECO Westinghouse supplier, for genuine products, technical support, and fast nationwide shipping.

Free Canadian Shipping on orders 499+Authorized Canadian distributorExpert tech support (phone & email)30-day return policy

Total Sales	0
Brand	TECO-Westinghouse
General Category	Motors > Explosion Proof
Horsepower	10
Voltage	230, 460
RPM	1800
Amps	23.3/11.7
Frequency	60 Hz
Frame	215T
Enclosure	TEFC-XP
Rotation	Reversible
Mounting	Rigid
Phases	3
Motor Orientation	Horizontal
Number Of Poles	4
Duty Cycle	Continuous
Efficiency	91.7
Insulation Class	F
KVA Code	H
NEMA Design	C
Power Rating In Kw	7.5
Speeds	1 Speed
Power Factor	87.5
Service Factor	1.15
De Bearing Size	6308ZZ
Ode Bearing Size	6306ZZ
Frame Material	Cast Iron
Weight	95.692
Warranty	3-Year
Locked Rotor Current	162.00/81.00 AMP
Motor Fl Current	25.91 AMP
Leads	1
Connection	Delta
Variable Torque Ratio	20:01
Constant Torque Ratio	10:01
Connection Box Location	F1
Ambient Temp	-40 to 40 °C
Temp Code	T3B
Grease	Multemp SRL
Greasable	No
Temp Code Sine Wave Power	T3B
Dim Unit	cm
Length	51
Width	41
Height	28
Weight Unit	kg
Teco Datapack Link	/product-pdf/TECO-DATAPACK/tSbQdv9b-g8d-13-11.pdf
Teco Manual Link	/product-pdf/TECO-MANUALS/t9Tm7OMRj_ik-2-45.pdf
Teco Brochure Link	/product-pdf/TECO_BROCHURE/tyrSwERcD99u-7-18.pdf
Teco Features Link	/product-pdf/TECO-FEATURESHEET/t9Tm6AtSGn9F-16-1.pdf
Ref Product Title 1	x10p2b
Product 1 Url	/product/x10p2b
Ref Product Title 2	hx010404npw21x
Product 2 Url	/product/hx010404npw21x
Ref Product Title 3	xm21142t
Product 3 Url	/product/xm21142t
Ref Product Title 4	cpx21146t
Product 4 Url	/product/cpx21146t
Teco Datapack	tSbQdv9b-g8d-13-11.pdf
Teco Manual	t9Tm7OMRj_ik-2-45.pdf
Teco Brochure	tyrSwERcD99u-7-18.pdf
Teco Features	t9Tm6AtSGn9F-16-1.pdf

Enter your email and we’ll confirm availability for this item before you place your order.

Product Info

Brand: TECO-Westinghouse

HP: 10

Voltage: 230, 460

RPM: 1800

Amperage: 23.3/11.7

Frame: 215T

Enclosure: TEFC-XP

Phase: 3

Efficiency Rating: 91.7

Mounting Type: Rigid

Insulation Class: F

Service Factor: 1.15

Duty Cycle: Continuous

Ambient Temperature Rating: -40 to 40 °C

TECO-Westinghouse, born from the heritage of Westinghouse and TECO innovation, delivers electric motors and power solutions from fractional duty to 100,000 HP.

Their products, power pumps, compressors, grinders, marine systems, and mining equipment, are used across various industries worldwide, built for rugged use in petrochemical, utility, steel, and marine environments.

As a trusted Canadian supplier and dealer, Electracore brings TECO-Westinghouse’s full line to your doorstep. We offer genuine products, expert support, and fast shipping to customers across Canada.
