VEM3559 General Purpose by Baldor

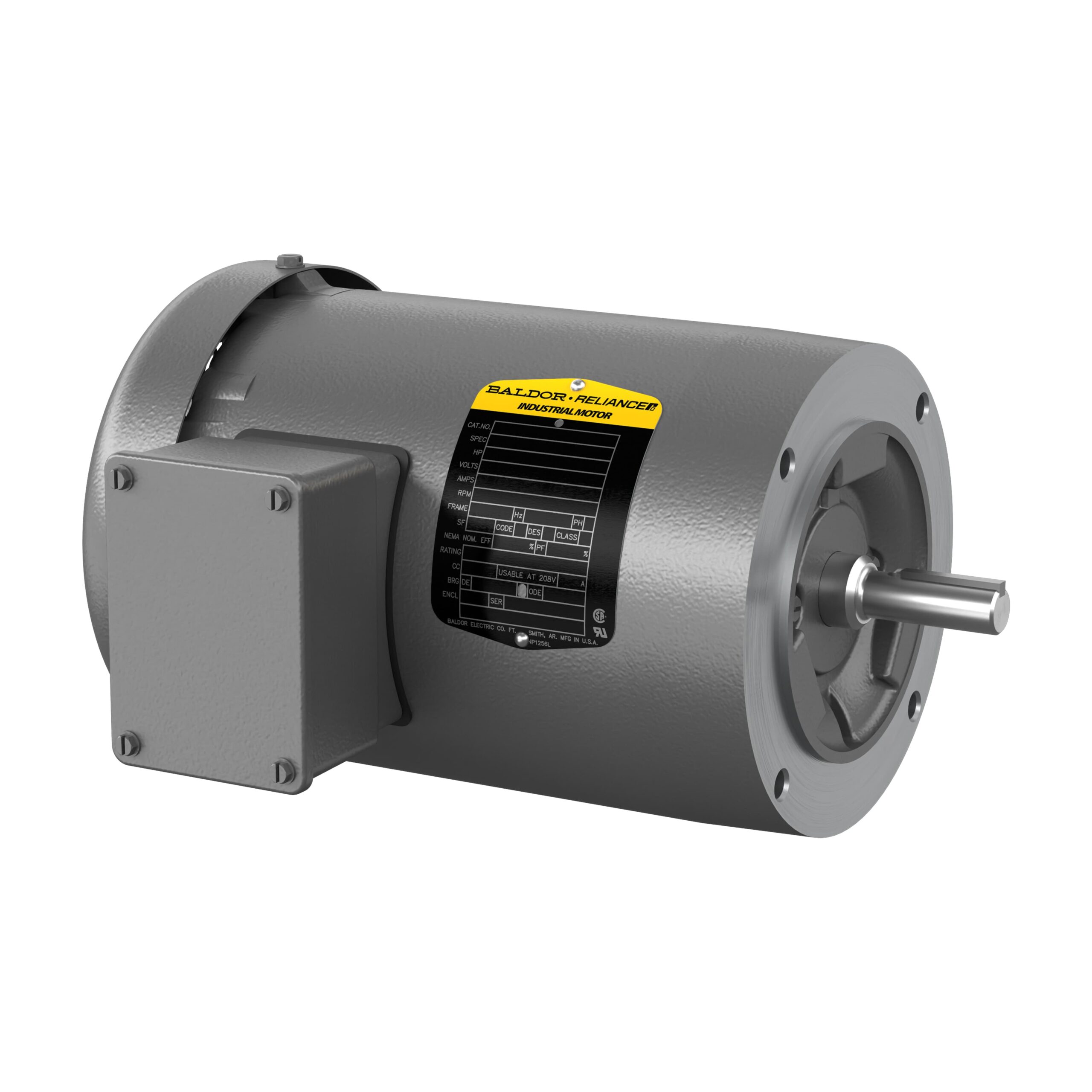

Baldor VEM3559 3 HP 230, 460V 3600 RPM 56C TEFC 3-Phase Motor

Name: Baldor VEM3559 3 HP 230, 460V 3600 RPM 56C TEFC 3-Phase Motor
Brand: Baldor
SKU: VEM3559
Availability: LimitedAvailability

General Purpose Motor

Brand: Baldor

Category: General Purpose, Motors

The Baldor-Reliance General Purpose VEM3559 motor delivers exceptional performance and efficiency for demanding industrial, commercial, and HVAC applications. Built with 3 phase, 3 HP, 230, 460 Voltage Rating, 3600 RPM Speed, 56C Frame, C-Face / Round Body mounting, 7.2/3.6 Amps, F Insulation Class, Continuous Duty, TEFC Enclosure Type, this motor ensures dependable power and long-term reliability.

Featuring a 3, TEFC, and C-Face / Round Body, this Baldor motor runs cooler, quieter, and longer—making it ideal for continuous operation in pumps, fans, compressors, conveyors, and gear reducers.

Whether used in manufacturing, agriculture, or HVAC systems, the Baldor-Reliance General Purpose VEM3559 provides the durability and performance professionals trust worldwide.

Authorized Canadian distributorExpert tech support (phone & email)30-day return policy

Brand	Baldor
General Category	Motors > General Purpose
Product Category	Motors > General Purpose
Horsepower	3
Voltage	230, 460
RPM	3600
Amps	7.2/3.6
Frequency	60 Hz
Frame	56C
Enclosure	TEFC
Rotation	Reversible
Mounting	C-Face / Round Body
Phases	3
Number Of Poles	2
Duty Cycle	Continuous
Efficiency	86.5
Insulation Class	F
KVA Code	L
NEMA Design	B
Power Factor	92
Service Factor	1.15
De Bearing Type	6206
Ode Bearing Type	6205
Shaft Diameter	0.625"
Shaft Extension	1.875"
C Dim	14.1"
Frame Material	Rolled Steel
Weight	50lb
Url-datapack	x
Warranty	3-Year
Ambient Temp	40°C
Grease	Polyrex EM
Greasable	Yes
Spec Number	35A013Q060G1
Rpm Actual	3450
Full Load Amps	7.9
Lead Qty	9
Double Drilled	No
Baldor Datapack	https://www.baldor.com/api/products/VEM3559/infopacket

Enter your email and we’ll confirm availability for this item before you place your order.

Product Info

Brand: Baldor

HP: 3

Voltage: 230, 460

RPM: 3600

Amperage: 7.2/3.6

Frame: 56C

Enclosure: TEFC

Phase: 3

Efficiency Rating: 86.5

Mounting Type: C-Face / Round Body

Insulation Class: F

Service Factor: 1.15

Duty Cycle: Continuous

Ambient Temperature Rating: 40°C

Baldor-Reliance Motors is a trusted manufacturer of IEC electric motors designed for reliability, energy efficiency, and long service life. Our three‑phase TEFC motors are engineered for industrial performance in pumps, fans, compressors, conveyors, and HVAC systems. With a strong focus on innovation, sustainability, and global customer support, Baldor delivers motors that meet international standards (IE1, IE2, IE3) and provide dependable power for every application.
