$430.14

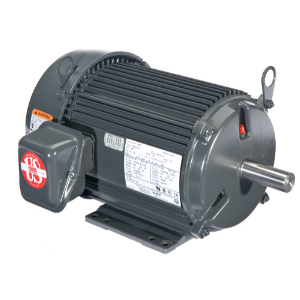

Designed for performance and built to last, the U.S. Motors General Purpose U1P2D offers dependable power and energy-efficient operation across industrial, commercial, and HVAC systems. With specifications including 3 phase, 1 HP, 208-230 , 460 Voltage Rating, 1800 RPM Speed, 143T Frame, Rigid mounting, 3.1/3.0/1.5 Amps, F Insulation Class, Continuous Duty, TEFC Enclosure Type, it’s designed to meet the toughest demands while minimizing maintenance and downtime.
Equipped with 3, TEFC, and Rigid, this motor combines durable cast-iron construction, sealed bearings, and high-grade insulation to deliver consistent performance in both general-purpose and severe-duty environments.
Its inverter-duty capability supports variable-speed control, making it ideal for applications such as pumps, blowers, compressors, conveyors, and fans.
Many models are NEMA Premium® and EISA compliant, ensuring top-tier energy efficiency and long-term cost savings. From agriculture to industrial manufacturing, the U.S. Motors General Purpose U1P2D stands out for its reliability, flexibility, and proven engineering quality.
Looking for the right motor solution?
Partner with Electracore, your trusted Canadian U.S. Motors dealer, for authentic products, expert guidance, and quick nationwide delivery.
| Brand | US Motors |
|---|---|
| General Category | Motors > General Purpose |
| Horsepower | 1 |
| Voltage | 208-230 , 460 |
| RPM | 1800 |
| Amps | 3.1/3.0/1.5 |
| Frequency | 60 |
| Frame | 143T |
| Enclosure | TEFC |
| Rotation | Reversible |
| Mounting | Rigid |
| Max Ambient | 40 °C |
| Phases | 3 |
| Assemblybox Mounting | F1 |
| Motor Orientation | Horizontal |
| Number Of Poles | 4 |
| Duty Cycle | Continuous |
| Efficiency | 85.5 |
| Insulation Class | F |
| KVA Code | M |
| NEMA Design | B |
| Power Rating In Kw | 0.75 |
| Speeds | 1 Speed |
| Service Factor | 1.25 |
| De Bearing Size | 6205-2Z-J/C3 |
| De Bearing Type | BALL |
| Ode Bearing Size | 6203-2Z-J/C3 |
| Shaft Diameter | 0.875" |
| Shaft Extension | 2.25" |
| C Dim | 13.1" |
| Frame Material | Rolled Steel |
| Weight | 30lb |
| Pdf 1 Link | /product-pdf/USM/tz5KTTROzJaT-213-29.pdf |
| Warranty | 3-Year |
| Full Load Amps | 3.1 |
| Full Load Temp | 80°C RISE/[email protected] |
| Model Number | FD18 |
| Overview | General Purpose Three Phase TEFC STEEL EDGE |
| Approvals | CSA & CE |
| Greasable | No |
| Rpm Actual | 1755 |
| Warranty Details | 3-Year |
| Pdf 2 Link | /product-pdf/USM/ |
| Ref Product Title 1 | rf0014 |
| Product 1 Url | /product/rf0014 |
| Ref Product Title 2 | pdh0014 |
| Product 2 Url | /product/pdh0014 |
| Ref Product Title 3 | ec0014 |
| Product 3 Url | /product/ec0014 |
| Ref Product Title 4 | mqp-2 |
| Product 4 Url | /product/mqp-2 |
| Ref Product Title 5 | ht000404npw01 |
| Product 5 Url | /product/ht000404npw01 |
| Ref Product Title 6 | elp1p2d |
| Product 6 Url | /product/elp1p2d |
| Pdf 3 Link | tWg38mj4Q6a0-18-13.pdf |
| Pdf 4 Link | tWg38mj4Q6a0-18-18.pdf |
| Pdf 6 Link | tWg38mj4Q6a0-18-19.pdf |
| Pdf 7 Link | tWg38mj4Q6a0-18-17.pdf |
| Pdf Catalog Page | tz5KTTROzJaT-213-29.pdf |
| Pdf Dimension Print | tWg38mj4Q6a0-18-13.pdf |
| Pdf Vfd | tWg38mj4Q6a0-18-18.pdf |
| Pdf Manual | tWg38mj4Q6a0-18-19.pdf |
| Pdf Wiring Diagram | tWg38mj4Q6a0-18-17.pdf |
