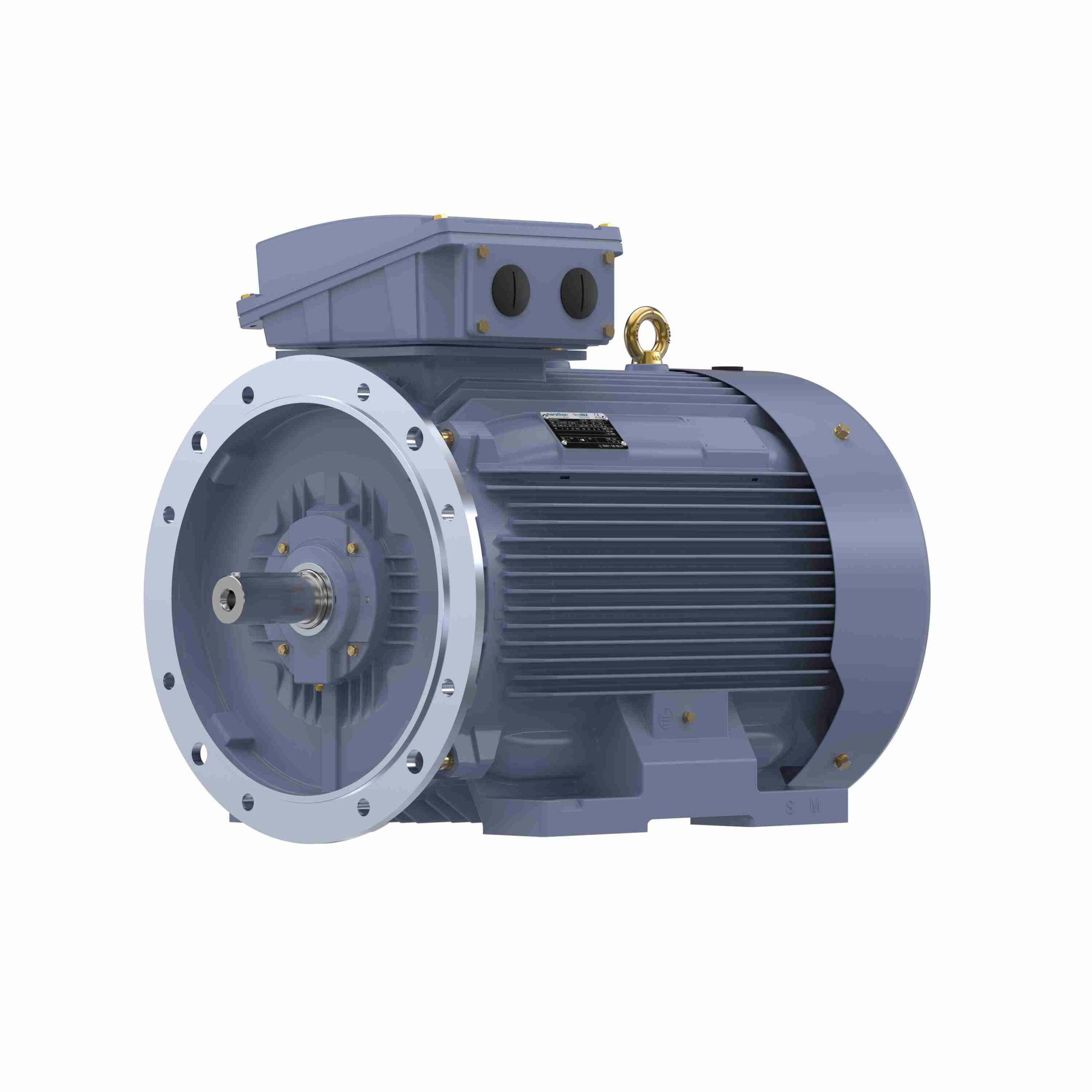

Powered by Marathon’s century-long heritage of American engineering excellence, the Marathon TCA0904AF131GAC010 General Purpose, Cast Iron Motors is built to deliver robust performance, high efficiency, and consistent torque across demanding industrial and commercial applications. With key specifications including 120 HP, 380 V, 750 RPM, a durable 315L frame, and 200.6 Amps, this motor provides reliable, stable operation from the moment it is installed.
Constructed using premium materials and Class F insulation, the TCA0904AF131GAC010 features a rugged TEFC enclosure designed to withstand harsh environments, including high-moisture, dusty, and heavy-load conditions. Engineered for continuous S1 duty, it delivers reduced thermal stress, lower vibration, and long-lasting durability, even in severe-duty or inverter-driven applications.
Designed for versatility, the Marathon TCA0904AF131GAC010 General Purpose, Cast Iron Motors performs exceptionally well in pumps, compressors, HVAC systems, conveyors, material-handling equipment, agricultural machinery, and OEM industrial systems. Its B35 configuration and broad NEMA/IEC compatibility make integration simple for both new installations and direct replacement scenarios.
Backed by Marathon’s reputation for durability, energy efficiency, and industry-proven reliability, this motor offers an excellent balance of performance and long service life. Electracore is your trusted Canadian supplier of genuine Marathon motors, providing expert technical guidance and fast nationwide delivery.
| Brand | Marathon |
|---|---|
| General Category | Motors > General Purpose > Cast Iron Motors |
| Product Category | General Purpose Motors |
| Sub Category | Cast Iron Motors |
| Horsepower | 120 |
| Voltage | 380 |
| RPM | 750 |
| Amps | 200.6 |
| Frequency | 50 |
| Frame | 315L |
| Enclosure | TEFC |
| Rotation | Bi-Directional |
| Mounting | B35 |
| Max Ambient | 40°C |
| Phases | 3 |
| Assemblybox Mounting | Top |
| Motor Orientation | Horizontal |
| Motor Type | Squirrel Cage |
| Number Of Poles | 8 |
| CSA Certified | No |
| CE Certified | Yes |
| Duty Cycle | S1 |
| Efficiency | 93.4 |
| Insulation Class | F |
| IP Rating | 55 |
| Starting Type | Direct On Line |
| Overload Protector | No Protection |
| Power Rating In Kw | 90.0 |
| Speeds | 1 |
| Power Factor | 0.73 |
| Service Factor | 1 |
| Speed2 | 743 |
| De Bearing Size | 6319 |
| De Bearing Type | C3 |
| Ode Bearing Size | 6319 |
| Ode Bearing Type | C3 |
| Dim Unit | MM |
| Length | 1,490.00 |
| Width | 840.00 |
| Height | 1,130.00 |
| Shaft Diameter In Mm | 80 |
| Shaft Extension In Mm | 170 |
| Shaft Type | Keyed |
| C Dim In Mm | 1317 |
| Frame Length In Mm | 840 |
| Frame Material | Cast Iron |
| Weight Unit | KG |
| Weight | 938.00 |
| Url-3d Cad | https://ids.regalbeloit.com/CnxDocRequest/PublishedPDF/2017/documents/0231500896_RevB.zip |
| Url-datapack | https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4590/Article_TCA0904AF131GAC010_DataPack_9.pdf |
| Connection Drawing No | 8442000085 |
| Outline Drawing No | 0231500896 |
| Ul | No |
| Manufacturer | Regal Beloit |
| Part ID | TCA0904AF131GAC010 |
| UPC | 722856082374 |
| Supersedes | N/A |
| Features | Confirms to IEC 60034 Class F insulation and Class B rise Bi-directional fan Ambient 40°C Suitable for Variable Torque Duty (10:1) Mounting IM B3, IM B5, IM, IM B35, IM V1 (Special mounting on request) Protection IP55 Captive screws for Terminal Box cover |
