SCA1103A1111GAA001 General Purpose, Cast Iron Motors by Marathon Motors

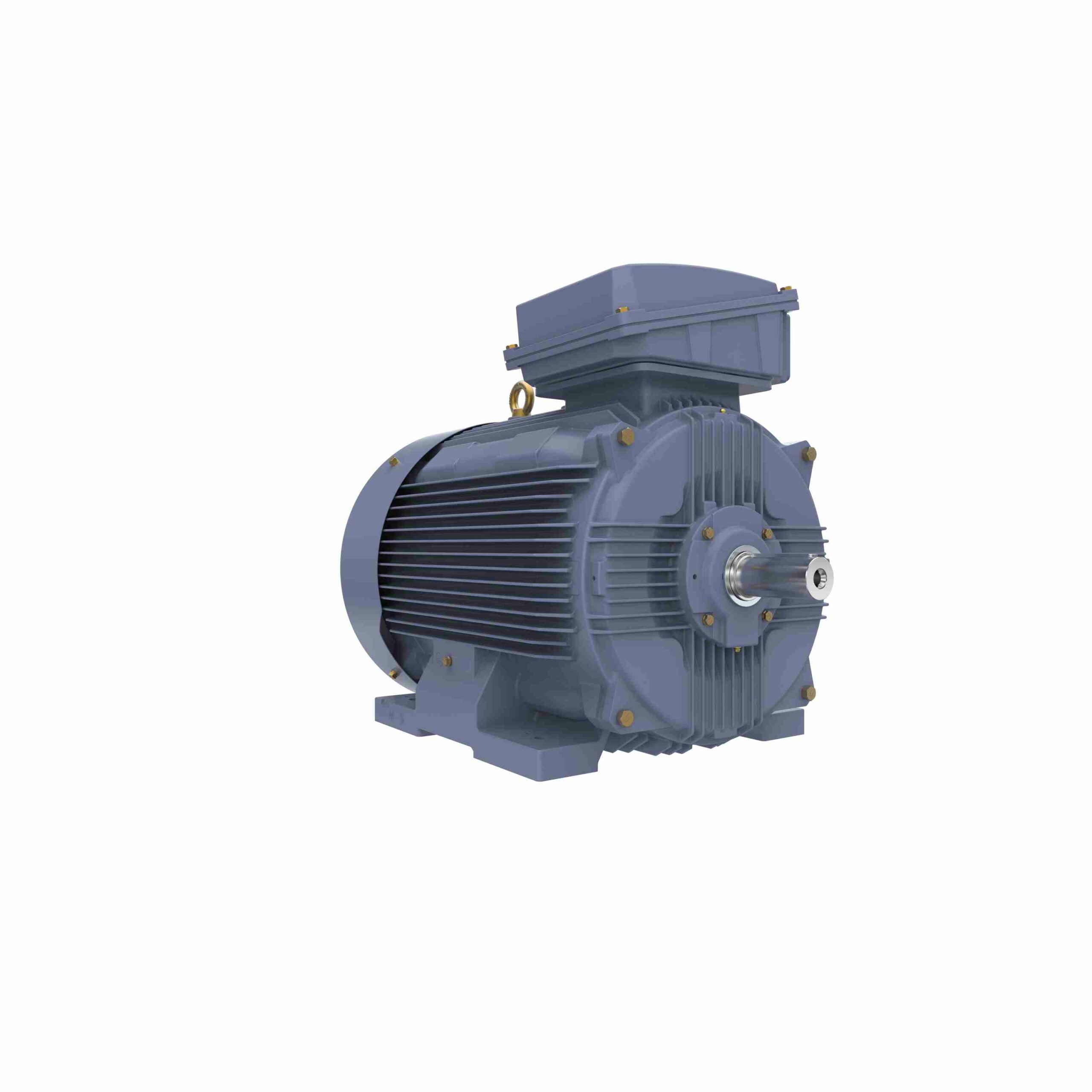

Marathon SCA1103A1111GAA001 150 HP 400V 1000 RPM 315L TEFC 3-Phase Motor

Name: Marathon SCA1103A1111GAA001 150 HP 400V 1000 RPM 315L TEFC 3-Phase Motor
Brand: Marathon
SKU: SCA1103A1111GAA001
Availability: LimitedAvailability

General Purpose Motor

Brand: Marathon Motors

Category: General Purpose, Cast Iron Motors, Motors

Powered by Marathon’s century-long heritage of American engineering excellence, the Marathon SCA1103A1111GAA001 General Purpose, Cast Iron Motors is built to deliver robust performance, high efficiency, and consistent torque across demanding industrial and commercial applications. With key specifications including 150 HP, 400 V, 1000 RPM, a durable 315L frame, and 200.4 Amps, this motor provides reliable, stable operation from the moment it is installed.

Constructed using premium materials and Class F insulation, the SCA1103A1111GAA001 features a rugged TEFC enclosure designed to withstand harsh environments, including high-moisture, dusty, and heavy-load conditions. Engineered for continuous S1 duty, it delivers reduced thermal stress, lower vibration, and long-lasting durability, even in severe-duty or inverter-driven applications.

Designed for versatility, the Marathon SCA1103A1111GAA001 General Purpose, Cast Iron Motors performs exceptionally well in pumps, compressors, HVAC systems, conveyors, material-handling equipment, agricultural machinery, and OEM industrial systems. Its B3 configuration and broad NEMA/IEC compatibility make integration simple for both new installations and direct replacement scenarios.

Backed by Marathon’s reputation for durability, energy efficiency, and industry-proven reliability, this motor offers an excellent balance of performance and long service life. Electracore is your trusted Canadian supplier of genuine Marathon motors, providing expert technical guidance and fast nationwide delivery.

Authorized Canadian distributorExpert tech support (phone & email)30-day return policy

Brand	Marathon
General Category	Motors > General Purpose > Cast Iron Motors
Product Category	General Purpose Motors
Sub Category	Cast Iron Motors
Horsepower	150
Voltage	400
RPM	1000
Amps	200.4
Frequency	50
Frame	315L
Enclosure	TEFC
Rotation	Bi-Directional
Mounting	B3
Max Ambient	40°C
Phases	3
Assemblybox Mounting	Top
Motor Orientation	Horizontal
Motor Type	Squirrel Cage
Number Of Poles	6
CSA Certified	No
CE Certified	Yes
Duty Cycle	S1
Efficiency	94.3
Insulation Class	F
IP Rating	55
Starting Type	Direct On Line
Overload Protector	No Protection
Power Rating In Kw	110.0
Speeds	1
Power Factor	0.84
Service Factor	1
Speed2	990
De Bearing Size	6319
De Bearing Type	C3
Ode Bearing Size	6319
Ode Bearing Type	C3
Length	1,490.00
Width	840.00
Height	1,080.00
Shaft Diameter In Mm	80
Shaft Extension In Mm	170
Shaft Type	Keyed
C Dim In Mm	1317
Frame Length In Mm	840
Frame Material	Cast Iron
Weight Unit	KG
Weight	1,012.00
Url-3d Cad	https://ids.regalbeloit.com/CnxDocRequest/PublishedPDF/2017/documents/0231500895_RevC.zip
Url-datapack	https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4596/Article_SCA1103A1111GAA001_DataPack_9.pdf
Connection Drawing No	8442000085
Outline Drawing No	0231500895
Ul	No
Manufacturer	Regal Beloit
Part ID	SCA1103A1111GAA001
UPC	722856161901
Supersedes	N/A
Features	Confirms to IEC 60034 Class F insulation and Class B rise Bi-directional fan Ambient 40°C Suitable for Variable Torque Duty (10:1) Mounting IM B3, IM B5, IM, IM B35, IM V1 (Special mounting on request) Protection IP55 Captive screws for Terminal Box cover

Enter your email and we’ll confirm availability for this item before you place your order.

Product Info

Confirms to IEC 60034 Class F insulation and Class B rise Bi-directional fan Ambient 40°C Suitable for Variable Torque Duty (10:1) Mounting IM B3, IM B5, IM, IM B35, IM V1 (Special mounting on request) Protection IP55 Captive screws for Terminal Box cover

Brand: Marathon

HP: 150

Voltage: 400

RPM: 1000

Amperage: 200.4

Frame: 315L

Enclosure: TEFC

Phase: 3

Efficiency Rating: 94.3

Mounting Type: B3

Insulation Class: F

Service Factor: 1

Duty Cycle: S1

-

Marathon Motors provides durable, energy-efficient electric motors designed for industrial and commercial applications, including pumps, HVAC systems, compressors, conveyors, and material-handling equipment. Built for long service life and dependable performance, Marathon’s NEMA and IEC motors are trusted worldwide. Electracore is your reliable Canadian supplier of authentic Marathon products with fast delivery and technical guidance.
