$362.59
Driven by MaxMotion’s commitment to reliable Canadian-engineered performance, the MaxMotion MM2512FC Dc Low Voltage Motors is designed to deliver consistent torque, high efficiency, and dependable operation across industrial, food-production, and OEM applications. With key specifications including 1/4 HP, 12 V, 1800 RPM, and a durable 56C frame, this motor provides stable, long-lasting performance from the moment it is installed.
Built with high-quality materials and Class, the MM2512FC features a rugged TEFC enclosure designed to withstand washdown conditions, industrial environments, and continuous operation. It maintains cooler internal temperatures, minimizes mechanical wear, and ensures reliable performance even under demanding production schedules.
Versatile by design, the MaxMotion MM2512FC Dc Low Voltage Motors excels in food-processing equipment, conveyor systems, closed-coupled pumps, belted fans, material-handling machinery, and general OEM-built systems. Its 1800 configuration and availability in both NEMA T-Frame and IEC metric styles make installation simple in new equipment builds or direct-replacement applications.
Aligned with MEP Inc.’s decades-long reputation for quality and nationwide support, MaxMotion motors deliver long service life, broad horsepower options, and compatibility with a wide range of industrial applications. Electracore is your trusted Canadian supplier for genuine MaxMotion motors, offering expert technical assistance and fast, reliable delivery across Canada.

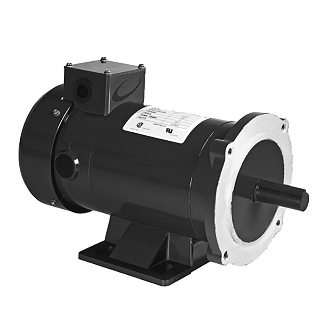

MaxMotion MM2512FC 1/4 HP, 12V V, 1800 RPM, 56C frame, TEFC, DC-phase motor for demanding industrial applications.
| Horsepower | 1/4 |
|---|---|
| RPM | 1800 |
| Voltage | 12V |
| Frame | 56C |
| Phases | DC |
| Enclosure | TEFC |
| Amps | 21 AMP |
| Service Factor | 1 |
| Frequency | 60 Hz |
| Mounting | C-Face / Removable Base, C-Face / Rigid, C-Face / Round Body |
| Weight | 21lb |
| Frame Material | Rolled Steel |
| C Dimension | 11.625" |
| Insulation Class | H |
| Rotation | Reversible |
| Duty | Continuous |
| Removable Feet | No |
| Orientation | Horizontal |
| Ambient Temp | 40°C |
| Shaft Diameter | 0.625" |
| Shaft Length | 1.875" |
| Greaseable | No |
| Approvals | CSA & UL |
| Warranty | 18-Month |
