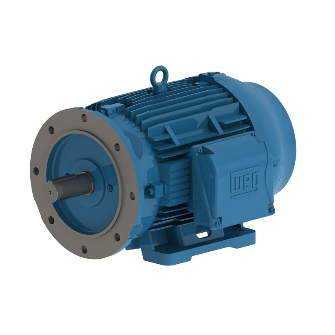

Harnessing the power of a global leader in industrial electrical engineering, the WEG Motors IEC Motor MA015502W22160M is engineered for maximum operational uptime and superior energy efficiency across demanding applications. With primary specifications including 15 HP, 575 Voltage Rating, 3600 RPM Speed, 160MD Frame, D-Flange / Rigid mounting, F Insulation Class, Continuous Duty, TEFC Enclosure Type, this motor delivers sustainable, reliable power right out of the box.
Built with premium cast-iron construction and high-grade F insulation, the motor features a TEFC enclosure for superior protection in harsh environments. Its Inverter Duty capability is standard, combined with WEG’s focus on innovative features and unwavering reliability, ensuring seamless variable-speed control, reduced energy waste, and extended motor life.
Designed to excel in core industrial processes, the WEG IEC Motor MA015502W22160M is the motor of choice for water treatment pumps, specialised compressors, heavy-duty conveyors, and high-performance fans. Its robust construction is particularly suited for severe-duty industries like Mining, Oil & Gas, and Pulp & Paper, where dependability is non-negotiable.
As a commitment to long-term value, WEG models are highly rated, guaranteeing top-tier performance and the lowest total cost of ownership. Partner with Electracore, your certified Canadian WEG supplier, for expert selection advice, authentic products, and fast, reliable delivery.
| Brand | WEG |
|---|---|
| General Category | Motors > IEC Motor |
| Horsepower | 15 |
| Voltage | 575 |
| RPM | 3600 |
| Frequency | 60 Hz |
| Frame | 160MD |
| Enclosure | TEFC |
| Rotation | Reversible |
| Mounting | D-Flange / Rigid |
| Max Ambient | 40°C |
| Motor Orientation | Horizontal |
| Number Of Poles | 2 |
| Duty Cycle | Continuous |
| Efficiency | 91.7 |
| Insulation Class | F |
| IP Rating | IP55 |
| NEMA Design | N |
| Service Factor | 1.25 |
| De Bearing Size | 6309-ZZ |
| Ode Bearing Size | 6209-ZZ |
| Shaft Diameter | 42mm |
| Shaft Extension | 110mm |
| C Dim | 598mm |
| Frame Material | Cast Iron |
| Weight | 254lb |
| Url-datapack | x |
| Warranty | 2-Year |
| Grease | Polyrex EM |
| Greasable | Yes |
| Approvals | CSA |
| Removable Feet | No |
| Warranty Details | 2-Year |
| Weg Datapack | tGCDeoX8hmTL-41-6.pdf |
