Full technical specifications appear below this section.
Typical applications include industrial machinery, HVAC systems, pumps, fans, conveyors, and general-purpose commercial equipment. Consult with our technical team for application-specific recommendations.
Contact us at [email protected] for datasheets, drawings, and technical documentation.
Our motor experts will help you pick the right unit for your application - no obligation.
Get Expert HelpEmail Us

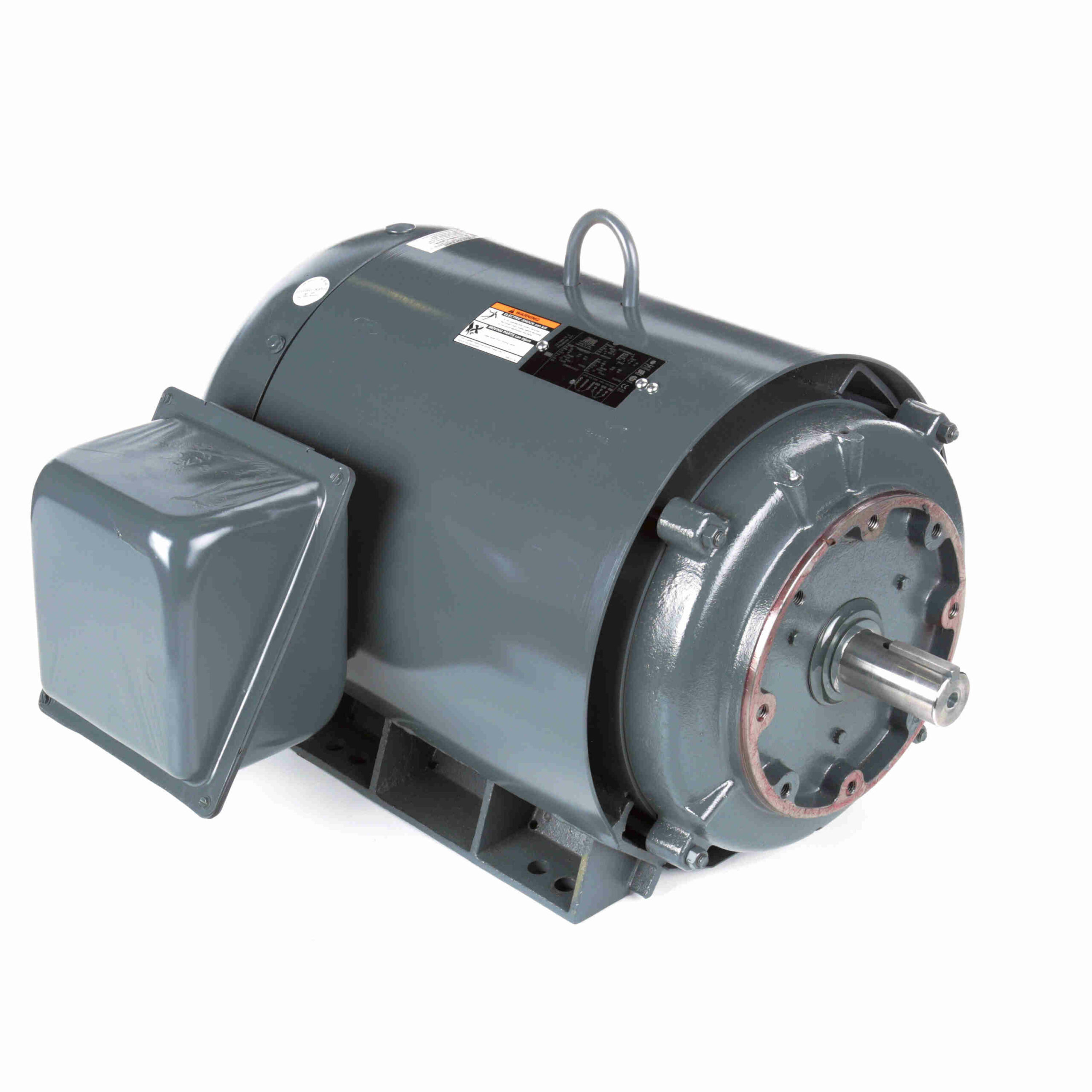

Powered by LEESON’s long-standing reputation for rugged American engineering, the LEESON LM32659 General Purpose is built to deliver reliable performance, steady torque output, and high operational efficiency across demanding industrial and agricultural applications. With key specifications including 3 phase, 100 HP, 230/460 Voltage Rating, 1800 RPM Speed, 405TSC Frame, Rigid Base mounting, 244.0/122.0 Amps, F Insulation Class, Continuous Duty, TEFC Enclosure Type this motor ensures consistent power delivery and dependable operation from the moment it is installed.
Constructed with high-strength materials and Class F insulation, the LM32659 features a robust TEFC designed to withstand dust, moisture, heavy starts, and harsh work environments. Engineered for continuous Continuous, it maintains cooler operating temperatures, minimizes internal wear, and delivers reliable performance during long, uninterrupted duty cycles.
Optimized for versatility, the LEESON LM32659 General Purpose excels in farm equipment, grain handling systems, ventilation fans, compressors, conveyors, and general-purpose industrial machinery. Its Rigid Base configuration and practical NEMA-based design ensure easy installation and seamless integration into new builds or replacement setups.
Backed by LEESON’s commitment to durability, energy efficiency, and industry-ready performance, this motor is an ideal choice for users seeking long service life and low total cost of ownership. Electracore is your trusted Canadian LEESON supplier, offering genuine products, expert motor selection guidance, and fast, reliable nationwide delivery.
| Brand | Leeson |
|---|---|
| General Category | AC Motors – NEMA |
| Product Category | General Purpose Motors |
| Horsepower | 100 |
| Voltage | 230/460 |
| RPM | 1800 |
| Amps | 244.0/122.0 |
| Frequency | 60 |
| Frame | 405TSC |
| Enclosure | TEFC |
| Rotation | Reversible |
| Mounting | Rigid Base |
| Max Ambient | 40°C |
| Phases | 3 |
| Assemblybox Mounting | F1/F2 CAPABLE |
| Motor Orientation | Horizontal |
| Motor Type | Squirrel Cage Induction Run |
| Number Of Poles | 4 |
| CSA Certified | YES |
| CE Certified | YES |
| Duty Cycle | Continuous |
| Efficiency | 95.4 |
| Insulation Class | F |
| IP Rating | 43 |
| KVA Code | G |
| NEMA Design | B |
| Starting Type | Wye Start Delta Run |
| Overload Protector | No Protection |
| Power Rating In Kw | 75 |
| Speeds | 1 |
| Power Factor | 80.5 |
| Service Factor | 1.15 |
| Resistance Main | 0.042 |
| Speed2 | 1785 |
| De Bearing Size | 315 |
| De Bearing Type | Ball |
| Ode Bearing Size | 313 |
| Ode Bearing Type | Ball |
| Dim Unit | IN |
| Length | 37 |
| Width | 33 |
| Height | 26.72 |
| Shaft Diameter | 2.125 |
| Shaft Extension | 4.25 |
| Shaft Type | TS |
| C Dim | 33.87 |
| Frame Length | 19.46 |
| Frame Material | Rolled Steel |
| Weight Unit | LB |
| Weight | 1,048.00 |
| Url-datapack | https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/3260/Article_LM32659_DataPack_9.pdf |
| Connection Drawing No | EE7308AA-LN |
| Outline Drawing No | XJ2F1SC2-1946 |
| Ul | Recognized |
| Manufacturer | Regal Beloit |
| Part ID | LM32659 |
| UPC | 691720065815 |
| Supersedes | N/A |
| Features | Premium efficient ratings Inverter-rated; Continuous duty Class F insulation system – 140 frame and higher Class F insulation system – 140 frame and higher Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications Dynamically balanced rotors Torques exceed NEMA performance standards; UL recognized and CSA certified |
| Overview | Hundreds of "off-the-shelf" industrial motor options, including totally enclosed and drip-proof enclosures, rolled steel and cast iron frames, and single or three phase motors. LEESON® general purpose motors can be utilized in a variety of applications such as compressors, conveyors, pumps, and fans, among others. Premium efficient ratings Inverter-rated; Continuous duty Class F insulation system – 140 frame and higher Class F insulation system – 140 frame and higher Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications Dynamically balanced rotors Torques exceed NEMA performance standards; UL recognized and CSA certified |
