Full technical specifications appear below this section.
Typical applications include industrial machinery, HVAC systems, pumps, fans, conveyors, and general-purpose commercial equipment. Consult with our technical team for application-specific recommendations.
Contact us at [email protected] for datasheets, drawings, and technical documentation.
Our motor experts will help you pick the right unit for your application - no obligation.
Get Expert HelpEmail Us
$2,811.79
Driven by MaxMotion’s commitment to reliable Canadian-engineered performance, the MaxMotion IJA132M2-2-59 Metric Motors is designed to deliver consistent torque, high efficiency, and dependable operation across industrial, food-production, and OEM applications. With key specifications including 15 HP, 575 V, 3600 RPM, and a durable 132M frame, this motor provides stable, long-lasting performance from the moment it is installed.
Built with high-quality materials and Class, the IJA132M2-2-59 features a rugged TEFC enclosure designed to withstand washdown conditions, industrial environments, and continuous operation. It maintains cooler internal temperatures, minimizes mechanical wear, and ensures reliable performance even under demanding production schedules.
Versatile by design, the MaxMotion IJA132M2-2-59 Metric Motors excels in food-processing equipment, conveyor systems, closed-coupled pumps, belted fans, material-handling machinery, and general OEM-built systems. Its 3600 configuration and availability in both NEMA T-Frame and IEC metric styles make installation simple in new equipment builds or direct-replacement applications.
Aligned with MEP Inc.’s decades-long reputation for quality and nationwide support, MaxMotion motors deliver long service life, broad horsepower options, and compatibility with a wide range of industrial applications. Electracore is your trusted Canadian supplier for genuine MaxMotion motors, offering expert technical assistance and fast, reliable delivery across Canada.

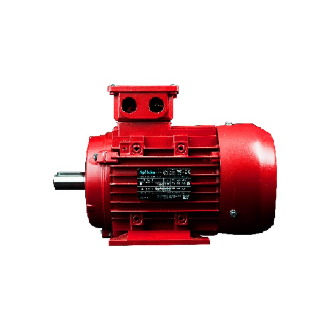

MaxMotion IJA132M2-2-59 15 HP, 575V / 990V V, 3600 RPM, 132MB3 frame, TEFC, 3-phase motor for demanding industrial applications.
| Horsepower | 15 |
|---|---|
| RPM | 3600 |
| Voltage | 575V, 990V |
| Frame | 132MB3 |
| Phases | 3 |
| Enclosure | TEFC |
| Amps | 13.60/7.92 AMP |
| Poles | 2 |
| Service Factor | 1.15 |
| Efficiency | 91 |
| Power Factor | 0.89 |
| Leads | 6 |
| Frequency | 60 Hz |
| Mounting | B3 |
| Weight | 137lb |
| Frame Material | Aluminum |
| C Dimension | 490 mm |
| NEMA Design | N |
| Insulation Class | H |
| Rotation | Reversible |
| Duty | S1 |
| Removable Feet | Yes |
| Orientation | Horizontal |
| Ambient Temp | 40 |
| DE Bearing | 6308-ZZ-C3 |
| ODE Bearing | 6208-ZZ-C3 |
| Shaft Diameter | 38 mm |
| Shaft Length | 80 mm |
| Grease Type | Polyrex EM |
| Greaseable | Yes |
| Approvals | CE, cUL & cRUus |
| Warranty | 3-Year |
Enter your email and we’ll confirm availability for this item before you place your order.
MaxMotion delivers rugged, efficient electric motors engineered for food production, material handling, pumps, fans, and OEM machinery. With options ranging from fractional to 350 HP and available in NEMA T-Frame, IEC metric, and washdown designs, MaxMotion motors support versatile industrial needs. Electracore proudly offers genuine MaxMotion electric motors across Canada with fast shipping and technical assistance.
Matched products based on similar HP, RPM, Frame, Voltage, and Enclosure type.
HP: 15, RPM: 3600, Frame: 132MB3, Voltage: 575, 990, Enclosure: TEFC
