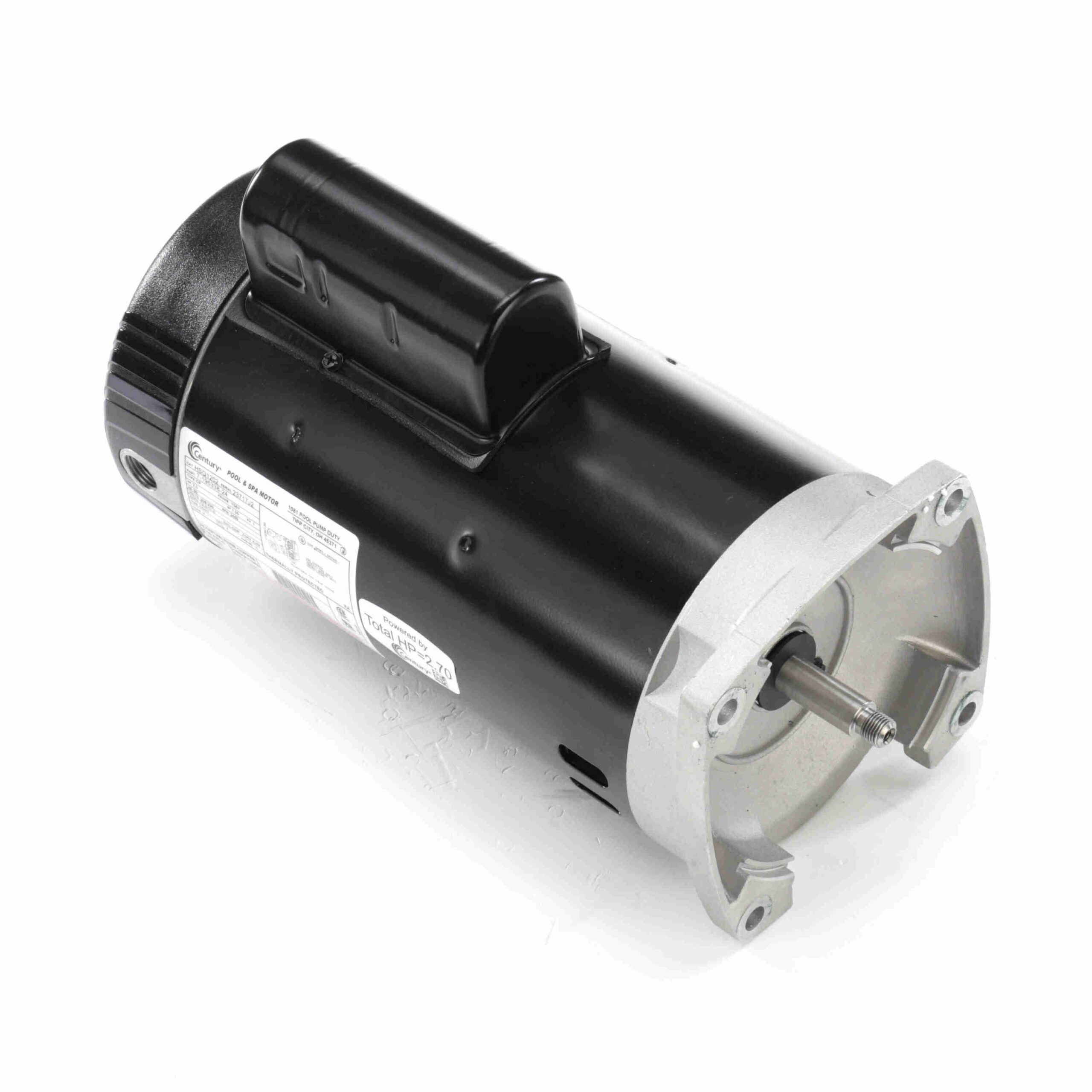

Our selection of Century Motors Pool Pump Motors HSQ1202 drives offers reliable variable speed control for Pool Pump Motors applications. Select a drive rated for 2-rated motors, with a wide range of input and output voltage options.
They feature 1 phase, 2 HP, 208-230 Voltage Rating, 3600 RPM Speed, Round mounting, 12.0-11.0 Amps, F Insulation Class, Continuous Duty, ODP Enclosure Type. As trusted Century Motors motor suppliers and dealers, we make it easy to find the right model for industrial, commercial, or HVAC use.
The Century Motors is perfect for fans, blowers, furnaces, and air conditioners, providing a reliable, direct replacement that ensures consistent airflow and long system life.
Need help selecting the right motor speed controller or finding a legacy replacement? Contact our motor experts today.
| Total Sales | 0 |
|---|---|
| Brand | Century |
| General Category | AC Motors – NEMA |
| Product Category | Pump Motors |
| Sub Category | Pool Pump Motors |
| Horsepower | 2 |
| Voltage | 208-230 |
| RPM | 3600 |
| Amps | 12.0-11.0 |
| Frequency | 60 |
| Enclosure | ODP |
| Rotation | Counterclockwise Pump End |
| Mounting | Round |
| Max Ambient | 60°C |
| Phases | 1 |
| Motor Orientation | Horizontal |
| Motor Type | Capacitor Start, Capacitor Run, Single Or Dual Voltage |
| Number Of Poles | 2 |
| CSA Certified | Y |
| Duty Cycle | Continuous |
| Insulation Class | F |
| Overload Protector | Thermally Protected |
| Power Rating In Kw | 1.5 |
| Speeds | 1 |
| Service Factor | 1.35 |
| Speed2 | 3450 |
| De Bearing Type | Ball |
| Ode Bearing Type | Ball |
| Dim Unit | IN |
| Length | 16.00 |
| Width | 9.50 |
| Height | 11.00 |
| Shaft Diameter | 0.625 |
| Shaft Extension | 0.91 |
| Shaft Type | 1/2 Threaded |
| C Dim | 14.13 |
| Frame Length | 9.75 |
| Frame Material | Rolled Steel |
| Weight Unit | LB |
| Weight | 38.00 |
| Url-datapack | https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4595/Article_HSQ1202_DataPack_9.pdf |
| Connection Drawing No | 17536730.PCX |
| Outline Drawing No | HSQ1202-S01 |
| Ul | Recognized |
| Manufacturer | Regal Beloit |
| Part ID | HSQ1202 |
| UPC | 786674025234 |
| Supersedes | N/A |
| Features | 60°C Ambient Energy Efficient Capacitor Start/Capacitor Run Sealed Ball Bearings UL 1081 Design Open Dripproof 303 Stainless Steel Shaft Hayward Tristar Replacement Replaces SP3220Z1BE |
