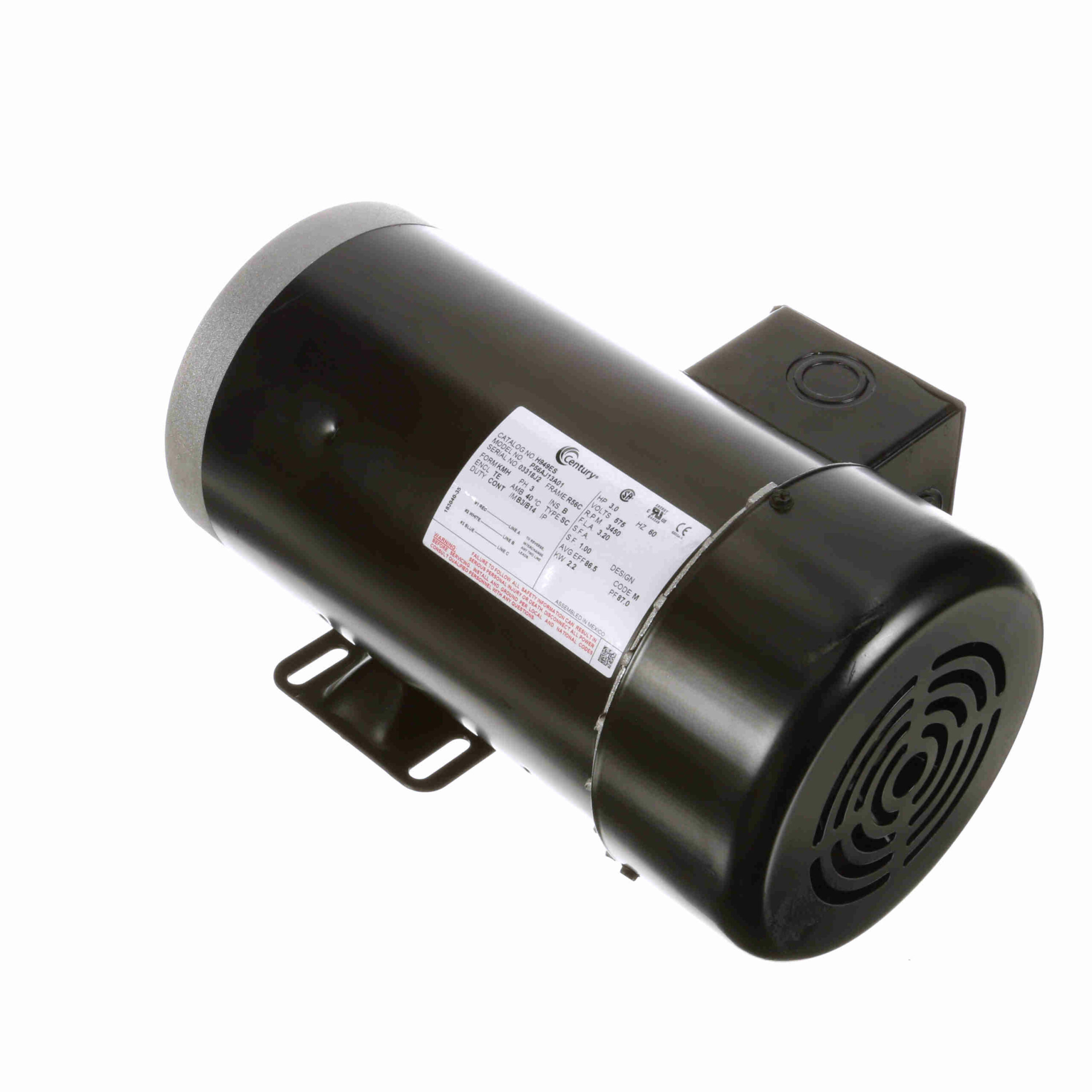

Our selection of Century Motors General Purpose H949ES drives offers reliable variable speed control for General Purpose applications. Select a drive rated for 3-rated motors, with a wide range of input and output voltage options.
They feature 3 phase, 3 HP, 575 Voltage Rating, 3600 RPM Speed, Round mounting, 3.20 Amps, B Insulation Class, Continuous Duty, TEFC Enclosure Type. As trusted Century Motors motor suppliers and dealers, we make it easy to find the right model for industrial, commercial, or HVAC use.
The Century Motors is perfect for fans, blowers, furnaces, and air conditioners, providing a reliable, direct replacement that ensures consistent airflow and long system life.
Need help selecting the right motor speed controller or finding a legacy replacement? Contact our motor experts today.
| Total Sales | 0 |
|---|---|
| Brand | Century |
| General Category | AC Motors – NEMA |
| Product Category | General Purpose Motors |
| Horsepower | 3 |
| Voltage | 575 |
| RPM | 3600 |
| Amps | 3.20 |
| Frequency | 60 |
| Enclosure | TEFC |
| Rotation | Reversible Counterclockwise |
| Mounting | Round |
| Max Ambient | 40°C |
| Phases | 3 |
| Motor Type | Polyphase, Induction Type, Single Or Dual Voltage |
| Number Of Poles | 2 |
| CSA Certified | Y |
| CE Certified | Y |
| Duty Cycle | Continuous |
| Insulation Class | B |
| Starting Type | Across The Line |
| Overload Protector | No Protection |
| Power Rating In Kw | 2.2 |
| Speeds | 1 |
| Service Factor | 1 |
| Speed2 | 3450 |
| De Bearing Type | Ball |
| Ode Bearing Type | Ball |
| Dim Unit | IN |
| Length | 17.00 |
| Width | 11.00 |
| Height | 11.00 |
| Shaft Diameter | 0.625 |
| Shaft Extension | 2.07 |
| Shaft Type | Keyed |
| C Dim | 15.02 |
| Frame Length | 8.75 |
| Frame Material | Rolled Steel |
| Weight Unit | LB |
| Weight | 40.00 |
| Url-datapack | https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4596/Article_H949ES_DataPack_9.pdf |
| Connection Drawing No | 18304035.PCX |
| Outline Drawing No | H949ES-S01 |
| Ul | Recognized |
| Manufacturer | Regal Beloit |
| Part ID | H949ES |
| UPC | 786674072924 |
| Cross Reference | 056T34F15676 |
| Supersedes | N/A |
| Features | UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications. Continuous duty cycle design allows maximum operation at the rated power specifications. Class B or F Insulation protects motor for a maximum temperature rating. Permanently lubricated, double-sealed bearings extend the lifetime of the motor. |
Enter your email and we’ll confirm availability for this item before you place your order.
Century Motors Motors For over 100 years, Century® has led the electric motor industry with breakthrough solutions across heating, ventilation, air conditioning (HVAC), recreational water, and industrial sectors. As a trusted partner to global clients, Century delivers high-performance, energy-efficient, and durable motor systems designed to meet evolving demand in commercial, industrial, residential, and recreational applications.
Whether your project requires an HVAC blower, pool pump motor, or heavy-duty industrial drive, Century continues to push boundaries, providing trusted, future-ready solutions for modern systems.
Matched products based on similar HP, RPM, Frame, Voltage, and Enclosure type.
HP: 3, RPM: 3600, Frame: R56C, Voltage: 575, Enclosure: TEFC
