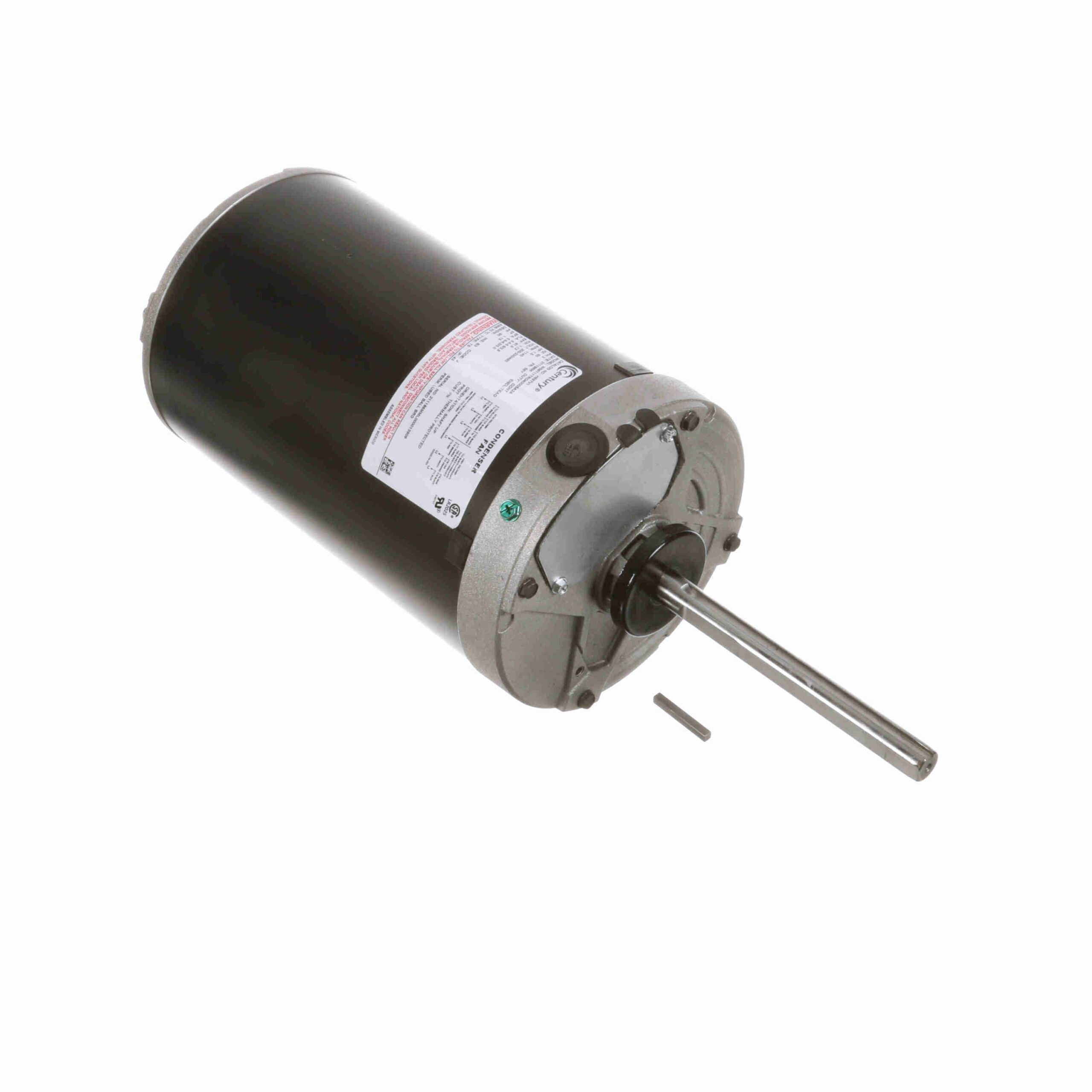

H697V1 Condenser Fans

H697V1

Name: H697V1 Condenser Fans
Brand: Electracore
SKU: H697V1
Rating: 4.7 (15 reviews)

Condenser Fans HVAC Motors

Category: HVAC Motors, Condenser Fans

Condenser Fans Motor, 1.5 HP, 3 Ph, 60 Hz, 200-230/460 V, 1200 RPM, 56Y Frame, TEAO

Enter your email and we’ll confirm availability for this item before you place your order.

Product Info

Automatic reset thermal protector prevents overheating. Permanently lubricated, double-sealed bearings extend the lifetime of the motor. Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications. Vertical/horizontal mounting for proper placement of the fan within airflow.

Brand: Century

HP: 1 1/2

Voltage: 200, 230, 460

RPM: 1200

Amperage: 5.4-5.6/2.8

Frame: 56Y

Enclosure: TEAO

Phase: 3

Efficiency Rating: 81.5

Mounting Type: Round

Insulation Class: B

Service Factor: 1.15

Duty Cycle: Continuous

-

Downloads

H697V1

Matching Products

Matched products based on similar HP, RPM, Frame, Voltage, and Enclosure type.

HP: 1 1/2, RPM: 1200, Frame: 56Y, Voltage: 200, 230, 460, Enclosure: TEAO

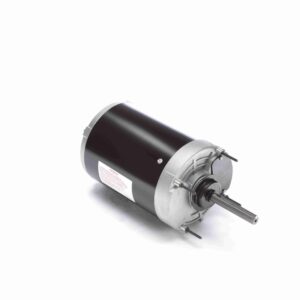

FY3156
Century Motors
HP 1 1/2
RPM 1200
VOLTAGE 200, 230, 460
FRAME 56Y
PHASE 3
ENCLOSURE TEAO
Read more

View all matching products

H697V1

Product Info

Brand: Century

HP: 1 1/2

Voltage: 200, 230, 460

RPM: 1200

Amperage: 5.4-5.6/2.8

Frame: 56Y

Enclosure: TEAO

Phase: 3

Efficiency Rating: 81.5

Mounting Type: Round

Insulation Class: B

Service Factor: 1.15

Duty Cycle: Continuous

-

Downloads

H697V1

Matching Products

FY3156
