H667V1 Condenser Fans by Century Motors

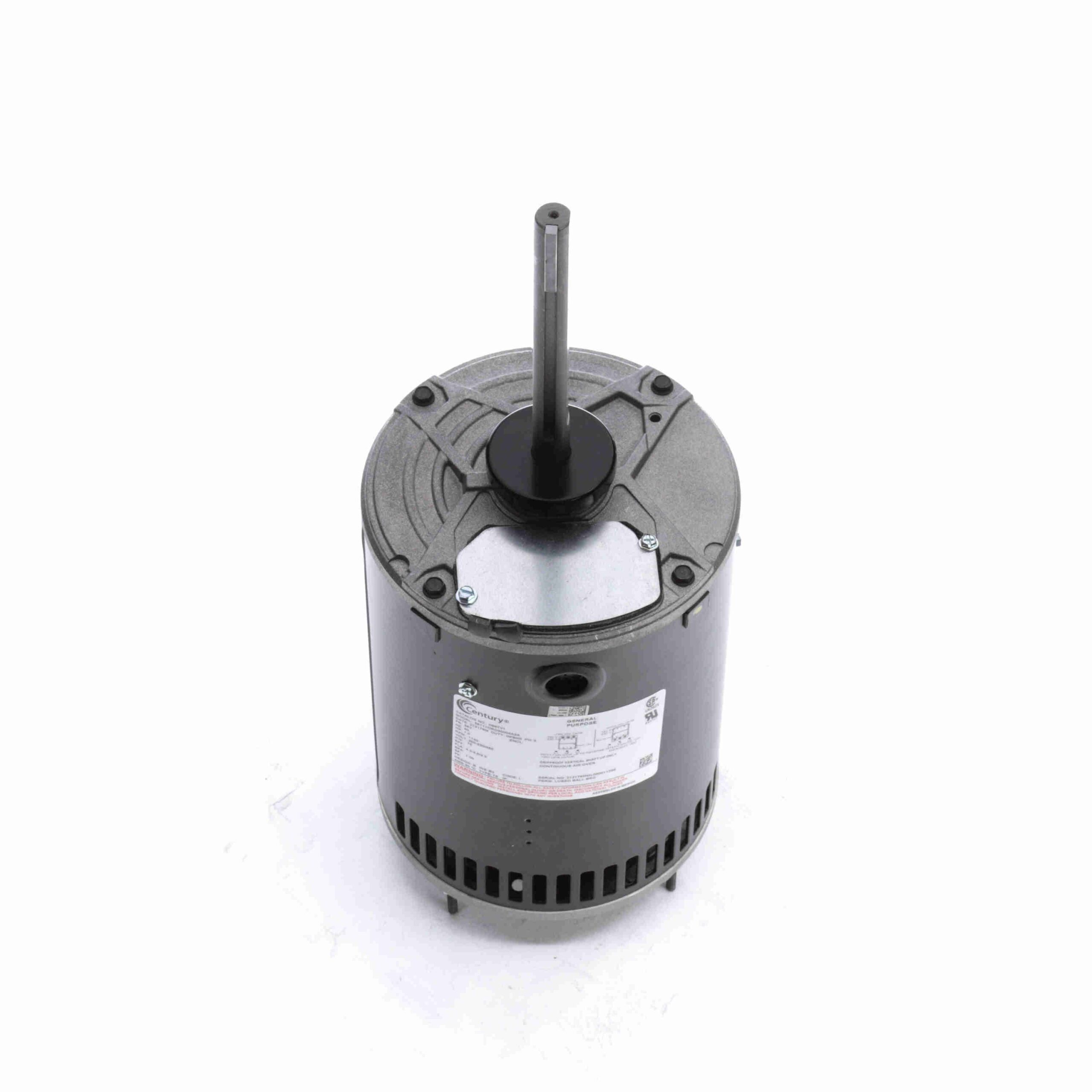

Century H667V1 1 HP 200-230/460V 1200 RPM OAO 3-Phase Motor

Name: Century H667V1 1 HP 200-230/460V 1200 RPM OAO 3-Phase Motor
Brand: Century
SKU: H667V1

Condenser Fans HVAC Motors

Brand: Century Motors

Category: Condenser Fans, HVAC Motors

Our selection of Century Motors Condenser Fans H667V1 drives offers reliable variable speed control for Condenser Fans applications. Select a drive rated for 1-rated motors, with a wide range of input and output voltage options.

They feature 3 phase, 1 HP, 200-230/460 Voltage Rating, 1200 RPM Speed, Round mounting, 4.3-4.6/2.3 Amps, B Insulation Class, Continuous Duty, OAO Enclosure Type. As trusted Century Motors motor suppliers and dealers, we make it easy to find the right model for industrial, commercial, or HVAC use.

The Century Motors is perfect for fans, blowers, furnaces, and air conditioners, providing a reliable, direct replacement that ensures consistent airflow and long system life.

Need help selecting the right motor speed controller or finding a legacy replacement? Contact our motor experts today.

Free Canadian Shipping on orders 499+Authorized Canadian distributorExpert tech support (phone & email)30-day return policy

Total Sales	0
Brand	Century
General Category	AC Motors – NEMA
Product Category	HVAC/R Motors
Sub Category	Condenser Fans Motors
Horsepower	1
Voltage	200-230/460
RPM	1200
Amps	4.3-4.6/2.3
Frequency	60
Enclosure	OAO
Rotation	Reversible
Mounting	Round
Max Ambient	60°C
Phases	3
Motor Type	Three Phase
Number Of Poles	6
CSA Certified	Y
CE Certified	Y
Duty Cycle	Continuous
Insulation Class	B
Starting Type	Across The Line
Overload Protector	Thermally Protected
Power Rating In Kw	0.75
Speeds	1
Service Factor	1
Speed2	1140
De Bearing Type	Ball
Ode Bearing Type	Ball
Dim Unit	IN
Length	19.00
Width	8.00
Height	8.00
Shaft Diameter	0.625
Shaft Extension	6.06
Shaft Type	Keyed
C Dim	16.52
Frame Length	8.15
Frame Material	Rolled Steel
Weight Unit	LB
Weight	31.00
Url-3d Cad	https://ids.regalbeloit.com/CnxDocRequest/PublishedPDF/2017/documents/OL56100077-001_RevA.zip
Url-datapack	https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4564/Article_H667V1_DataPack_9.pdf
Connection Drawing No	DD10027-001
Outline Drawing No	OL56100077-001
Ul	Recognized
Manufacturer	Regal Beloit
Part ID	H667V1
UPC	786674074126
Supersedes	N/A
Features	Automatic reset thermal protector prevents overheating. Permanently lubricated, double-sealed bearings extend the lifetime of the motor. Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications. Vertical/horizontal mounting for proper placement of the fan within airflow.

Enter your email and we’ll confirm availability for this item before you place your order.

Product Info

Automatic reset thermal protector prevents overheating. Permanently lubricated, double-sealed bearings extend the lifetime of the motor. Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications. Vertical/horizontal mounting for proper placement of the fan within airflow.

Brand: Century

HP: 1

Voltage: 200, 230, 460

RPM: 1200

Amperage: 4.3-4.6/2.3

Frame: 56Y

Enclosure: OAO

Phase: 3

-

Mounting Type: Round

Insulation Class: B

Service Factor: 1

Duty Cycle: Continuous

-

Century Motors Motors For over 100 years, Century® has led the electric motor industry with breakthrough solutions across heating, ventilation, air conditioning (HVAC), recreational water, and industrial sectors. As a trusted partner to global clients, Century delivers high-performance, energy-efficient, and durable motor systems designed to meet evolving demand in commercial, industrial, residential, and recreational applications.

Whether your project requires an HVAC blower, pool pump motor, or heavy-duty industrial drive, Century continues to push boundaries, providing trusted, future-ready solutions for modern systems.
