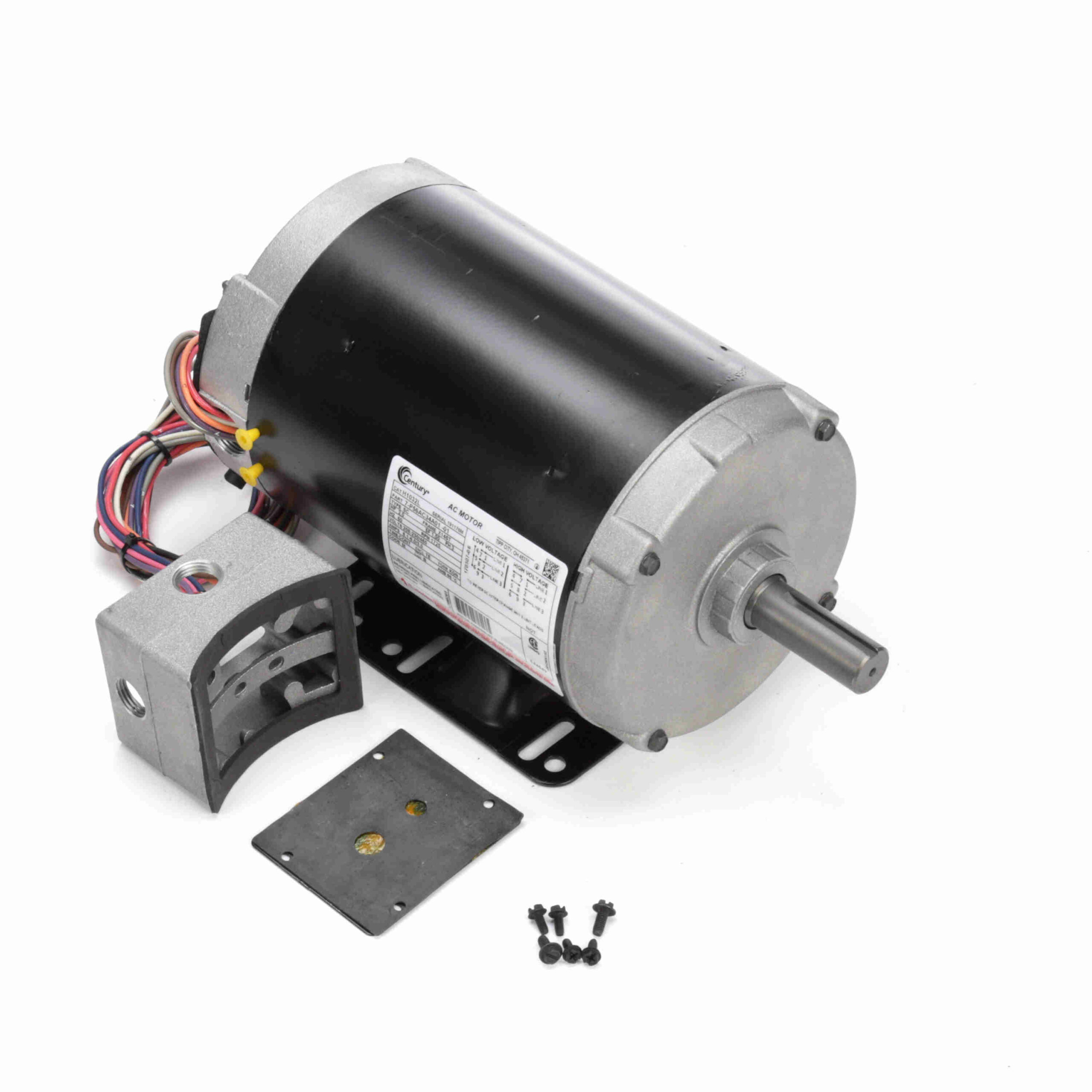

Our selection of Century Motors General Purpose H1032L drives offers reliable variable speed control for General Purpose applications. Select a drive rated for 2-rated motors, with a wide range of input and output voltage options.
They feature 3 phase, 2 HP, 208-230/460 Voltage Rating, 1800 RPM Speed, Rigid Base mounting, 6.1-6.0/3.0 Amps, B Insulation Class, Continuous Duty, TEAO Enclosure Type. As trusted Century Motors motor suppliers and dealers, we make it easy to find the right model for industrial, commercial, or HVAC use.
The Century Motors is perfect for fans, blowers, furnaces, and air conditioners, providing a reliable, direct replacement that ensures consistent airflow and long system life.
Need help selecting the right motor speed controller or finding a legacy replacement? Contact our motor experts today.
| Total Sales | 0 |
|---|---|
| Brand | Century |
| General Category | AC Motors – NEMA |
| Product Category | General Purpose Motors |
| Horsepower | 2 |
| Voltage | 208-230/460 |
| RPM | 1800 |
| Amps | 6.1-6.0/3.0 |
| Frequency | 60 |
| Enclosure | TEAO |
| Rotation | Reversible Counterclockwise |
| Mounting | Rigid Base |
| Max Ambient | 65°C |
| Phases | 3 |
| Motor Type | Polyphase, Induction Type, Single Or Dual Voltage |
| Number Of Poles | 4 |
| CSA Certified | Y |
| CE Certified | N |
| Duty Cycle | Continuous |
| Insulation Class | B |
| Starting Type | Across The Line |
| Overload Protector | No Protection |
| Power Rating In Kw | 1.5 |
| Speeds | 1 |
| Service Factor | 1 |
| Speed2 | 1725 |
| De Bearing Type | Ball |
| Ode Bearing Type | Ball |
| Dim Unit | IN |
| Length | 17.00 |
| Width | 11.00 |
| Height | 11.00 |
| Shaft Diameter | 0.875 |
| Shaft Extension | 2.31 |
| Shaft Type | Keyed |
| C Dim | 13.31 |
| Frame Length | 7.5 |
| Frame Material | Rolled Steel |
| Weight Unit | LB |
| Weight | 47.00 |
| Url-datapack | https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4596/Article_H1032L_DataPack_9.pdf |
| Connection Drawing No | 17050706.PCX |
| Outline Drawing No | H1032L-S01 |
| Ul | Recognized |
| Manufacturer | Regal Beloit |
| Part ID | H1032L |
| UPC | 786674056153 |
| Cross Reference | 145T17TRR40001A2 |
| Supersedes | N/A |
| Features | Meets or exceeds all USA mandated efficiencies Heavy-duty, rolled steel construction ensures motor durability. Continuous air over duty design allows consistent operation at the rated power. specifications Double-shielded bearings extend the service life of the motor. |
