Full technical specifications appear below this section.
Typical applications include industrial machinery, HVAC systems, pumps, fans, conveyors, and general-purpose commercial equipment. Consult with our technical team for application-specific recommendations.
Contact us at [email protected] for datasheets, drawings, and technical documentation.
Our motor experts will help you pick the right unit for your application - no obligation.
Get Expert HelpEmail Us

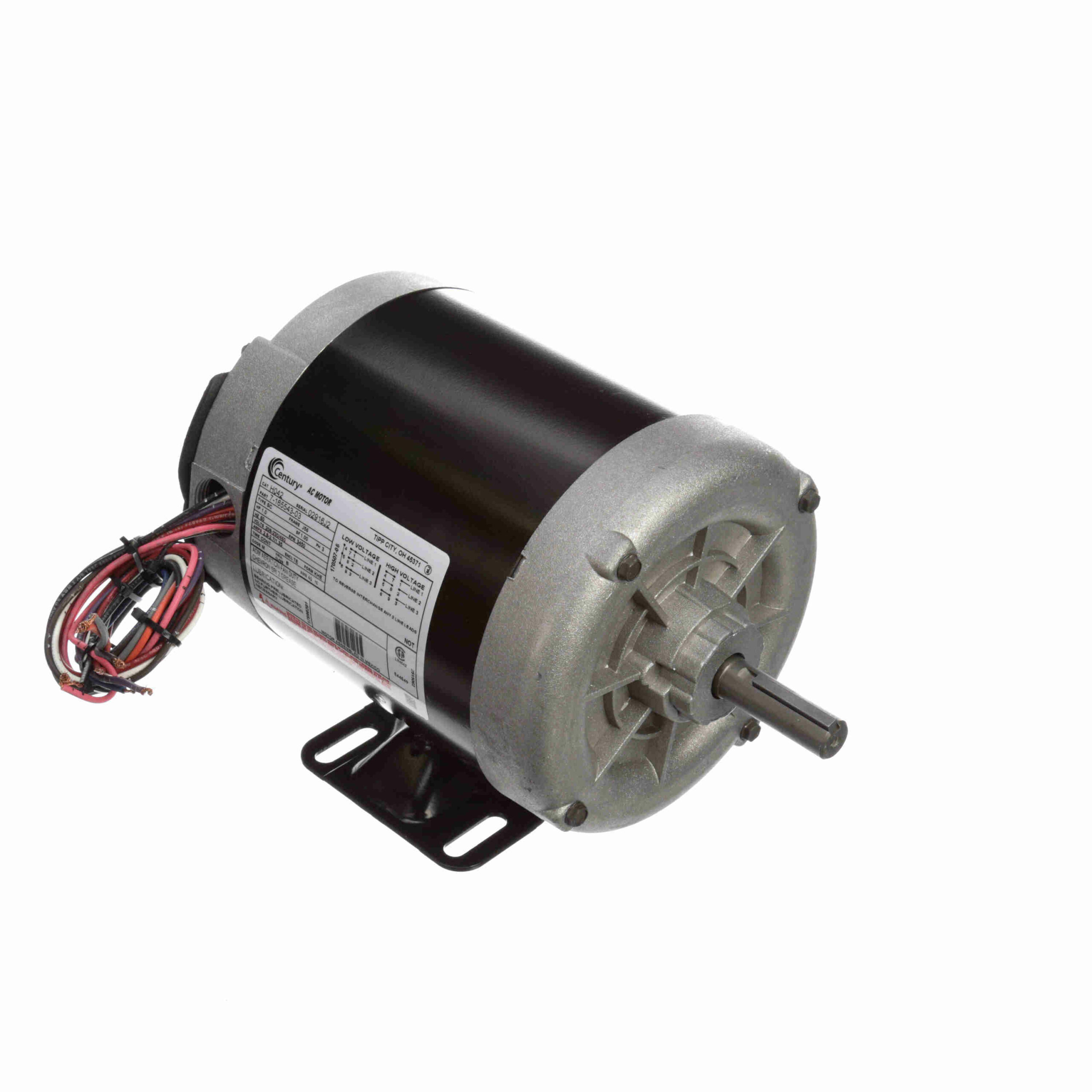

Our selection of Century Motors Aeration Fan Motors, Farm Duty H042 drives offers reliable variable speed control for Aeration Fan Motors, Farm Duty applications. Select a drive rated for 1-rated motors, with a wide range of input and output voltage options.
They feature 3 phase, 1 HP, 208-230/460 Voltage Rating, 3600 RPM Speed, Rigid Base mounting, 2.8-2.7/1.35 Amps, B Insulation Class, Continuous Duty, TEAO Enclosure Type. As trusted Century Motors motor suppliers and dealers, we make it easy to find the right model for industrial, commercial, or HVAC use.
The Century Motors is perfect for fans, blowers, furnaces, and air conditioners, providing a reliable, direct replacement that ensures consistent airflow and long system life.
Need help selecting the right motor speed controller or finding a legacy replacement? Contact our motor experts today.
| Brand | Century |
|---|---|
| General Category | AC Motors – NEMA |
| Product Category | Farm and Agriculture Motors |
| Sub Category | Aeration Fan Motors |
| Horsepower | 1 |
| Voltage | 208-230/460 |
| RPM | 3600 |
| Amps | 2.8-2.7/1.35 |
| Frequency | 60 |
| Enclosure | TEAO |
| Rotation | Reversible Counterclockwise |
| Mounting | Rigid Base |
| Max Ambient | 40°C |
| Phases | 3 |
| Motor Type | Polyphase, Induction Type, Single Or Dual Voltage |
| Number Of Poles | 2 |
| CSA Certified | Y |
| CE Certified | N |
| Duty Cycle | Continuous |
| Insulation Class | B |
| Starting Type | Across The Line |
| Overload Protector | No Protection |
| Power Rating In Kw | 0.75 |
| Speeds | 1 |
| Service Factor | 1 |
| Speed2 | 3450 |
| De Bearing Type | Ball |
| Ode Bearing Type | Ball |
| Dim Unit | IN |
| Length | 16.00 |
| Width | 8.00 |
| Height | 10.00 |
| Shaft Diameter | 0.625 |
| Shaft Extension | 1.94 |
| Shaft Type | Keyed |
| C Dim | 11.07 |
| Frame Length | 5.13 |
| Frame Material | Rolled Steel |
| Weight Unit | LB |
| Weight | 28.00 |
| Url-datapack | https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4595/Article_H042_DataPack_9.pdf |
| Connection Drawing No | 17050706.PCX |
| Outline Drawing No | 174556-S01 |
| Ul | Recognized |
| Manufacturer | Regal Beloit |
| Part ID | H042 |
| UPC | 786674022141 |
| Supersedes | 111335.00 |
| Features | UL recognized component listing and CSA certification ensures the product is safe for use. Double-shielded bearings extend the service life of the motor. Automatic reset thermal protector (as noted) protects against overload. Designed for belt driven fan or fan on shaft applications. |
Enter your email and we’ll confirm availability for this item before you place your order.
Century Motors Motors For over 100 years, Century® has led the electric motor industry with breakthrough solutions across heating, ventilation, air conditioning (HVAC), recreational water, and industrial sectors. As a trusted partner to global clients, Century delivers high-performance, energy-efficient, and durable motor systems designed to meet evolving demand in commercial, industrial, residential, and recreational applications.
Whether your project requires an HVAC blower, pool pump motor, or heavy-duty industrial drive, Century continues to push boundaries, providing trusted, future-ready solutions for modern systems.
Matched products based on similar HP, RPM, Frame, Voltage, and Enclosure type.
HP: 1, RPM: 3600, Frame: J56, Voltage: 208, 230, 460, Enclosure: TEAO
