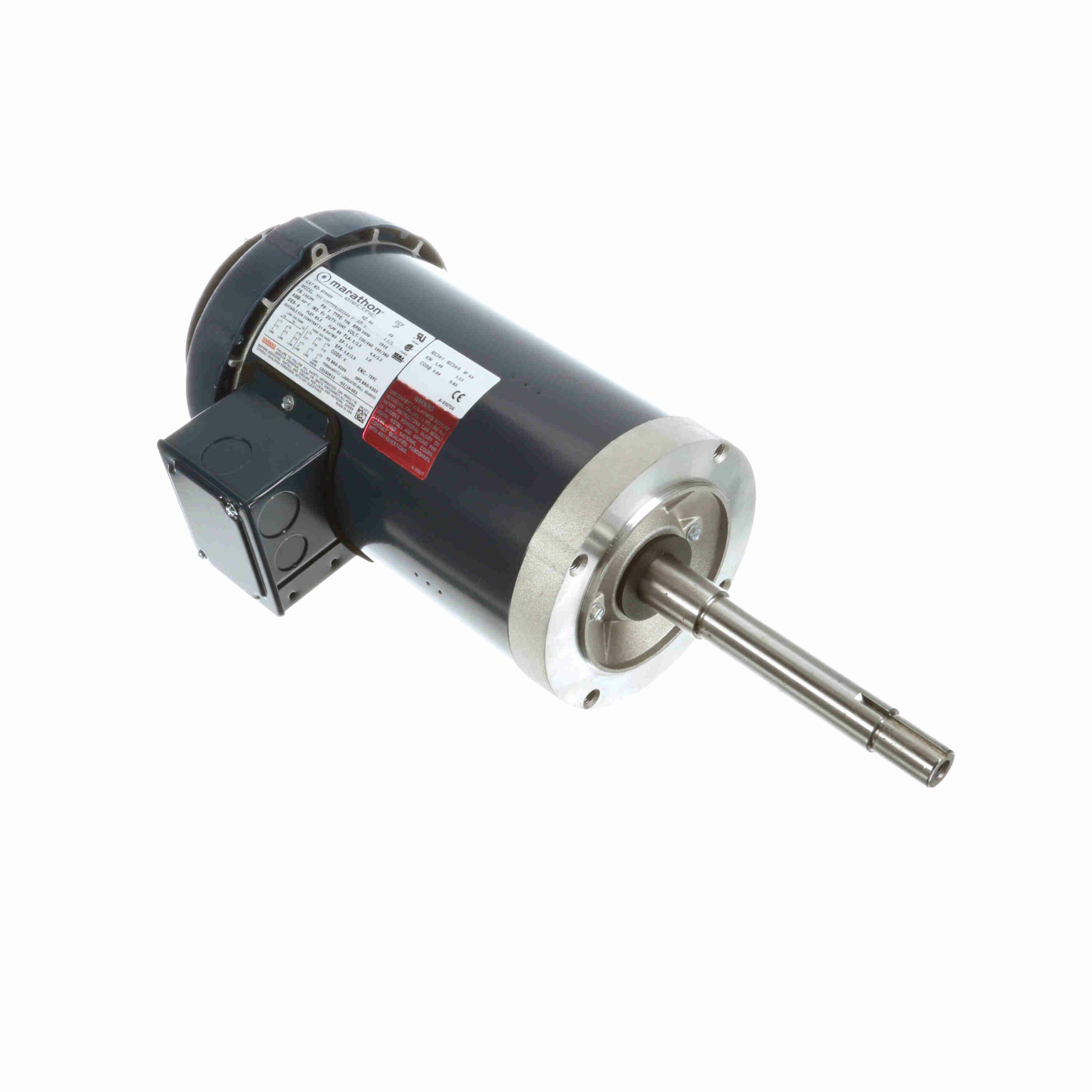

Marathon GT5406 2 HP 230/460V 3600 RPM 145JPV TEFC 3-Phase Motor

Name: Marathon GT5406 2 HP 230/460V 3600 RPM 145JPV TEFC 3-Phase Motor
Brand: Marathon
SKU: GT5406
Availability: LimitedAvailability

Close Coupled Pump Motors Pump

Brand: Marathon Motors

Category: Pump, Close Coupled Pump Motors

Powered by Marathon’s century-long heritage of American engineering excellence, the Marathon GT5406 Close Coupled Pump Motors is built to deliver robust performance, high efficiency, and consistent torque across demanding industrial and commercial applications. With key specifications including 2 HP, 230/460 V, 3600 RPM, a durable 145JPV frame, and 5.0/2.5 Amps, this motor provides reliable, stable operation from the moment it is installed.

Constructed using premium materials and Class F insulation, the GT5406 features a rugged TEFC enclosure designed to withstand harsh environments, including high-moisture, dusty, and heavy-load conditions. Engineered for continuous Continuous duty, it delivers reduced thermal stress, lower vibration, and long-lasting durability, even in severe-duty or inverter-driven applications.

Designed for versatility, the Marathon GT5406 Close Coupled Pump Motors performs exceptionally well in pumps, compressors, HVAC systems, conveyors, material-handling equipment, agricultural machinery, and OEM industrial systems. Its Round configuration and broad NEMA/IEC compatibility make integration simple for both new installations and direct replacement scenarios.

Backed by Marathon’s reputation for durability, energy efficiency, and industry-proven reliability, this motor offers an excellent balance of performance and long service life. Electracore is your trusted Canadian supplier of genuine Marathon motors, providing expert technical guidance and fast nationwide delivery.

Authorized Canadian distributorExpert tech support (phone & email)30-day return policy

Brand	Marathon
General Category	Pump > Close-Coupled Pump Motors
Product Category	Pump Motors
Sub Category	Close-Coupled Pump Motors
Horsepower	2
Voltage	230/460
RPM	3600
Amps	5.0/2.5
Frequency	60
Frame	145JPV
Enclosure	TEFC
Rotation	Reversible
Mounting	Round
Max Ambient	40°C
Phases	3
Assemblybox Mounting	F1 Only
Motor Orientation	Horizontal Or Shaft Down
Motor Type	Squirrel Cage Inverter Rated
Number Of Poles	2
CSA Certified	Yes
CE Certified	Yes
Duty Cycle	Continuous
Efficiency	85.5
Insulation Class	F
IP Rating	43
KVA Code	K
NEMA Design	B
Starting Type	Line Or Inverter
Overload Protector	No Protection
Power Rating In Kw	1.5
Speeds	1
Power Factor	86
Service Factor	1.15
Resistance Main	7.1
Speed2	3500
De Bearing Size	6206
De Bearing Type	Ball
Ode Bearing Size	6203
Ode Bearing Type	Ball
Dim Unit	IN
Length	22.50
Width	16.81
Height	14.75
Shaft Diameter	0.875
Shaft Extension	7.31
Shaft Type	JP
C Dim	20.35
Frame Length	9.6
Frame Material	Rolled Steel
Weight Unit	LB
Weight	52.00
Url-3d Cad	https://ids.regalbeloit.com/CnxDocRequest/PublishedPDF/2017/documents/100659-906_RevB.zip
Url-datapack	https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/1996/Article_145TTFR16015_DataPack_9.pdf
Connection Drawing No	A-EE7308
Outline Drawing No	B-100659-906
Ul	Recognized
Manufacturer	Regal Beloit
Part ID	145TTFR16015
UPC	722856005533
Supersedes	N/A
Features	Meets or exceeds all USA mandated efficiencies Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque Dual rated motors are nameplated 60/50 hertz, 190/380 volts at next lower HP F1 mounting only, cannot reassemble to F2 JPV frame (includes drip cover) for vertical mount without base 1.15 service factor on sinewave, 1.0 service factor on IGBT power Class F insulation UL recognized, CSA certified and CE mark

Enter your email and we’ll confirm availability for this item before you place your order.

Product Info

Meets or exceeds all USA mandated efficiencies Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque Dual rated motors are nameplated 60/50 hertz, 190/380 volts at next lower HP F1 mounting only, cannot reassemble to F2 JPV frame (includes drip cover) for vertical mount without base 1.15 service factor on sinewave, 1.0 service factor on IGBT power Class F insulation UL recognized, CSA certified and CE mark

Brand: Marathon

HP: 2

Voltage: 230, 460

RPM: 3600

Amperage: 5.0/2.5

Frame: 145JPV

Enclosure: TEFC

Phase: 3

Efficiency Rating: 85.5

Mounting Type: Round

Insulation Class: F

Service Factor: 1.15

Duty Cycle: Continuous

-

Marathon Motors provides durable, energy-efficient electric motors designed for industrial and commercial applications, including pumps, HVAC systems, compressors, conveyors, and material-handling equipment. Built for long service life and dependable performance, Marathon’s NEMA and IEC motors are trusted worldwide. Electracore is your reliable Canadian supplier of authentic Marathon products with fast delivery and technical guidance.
