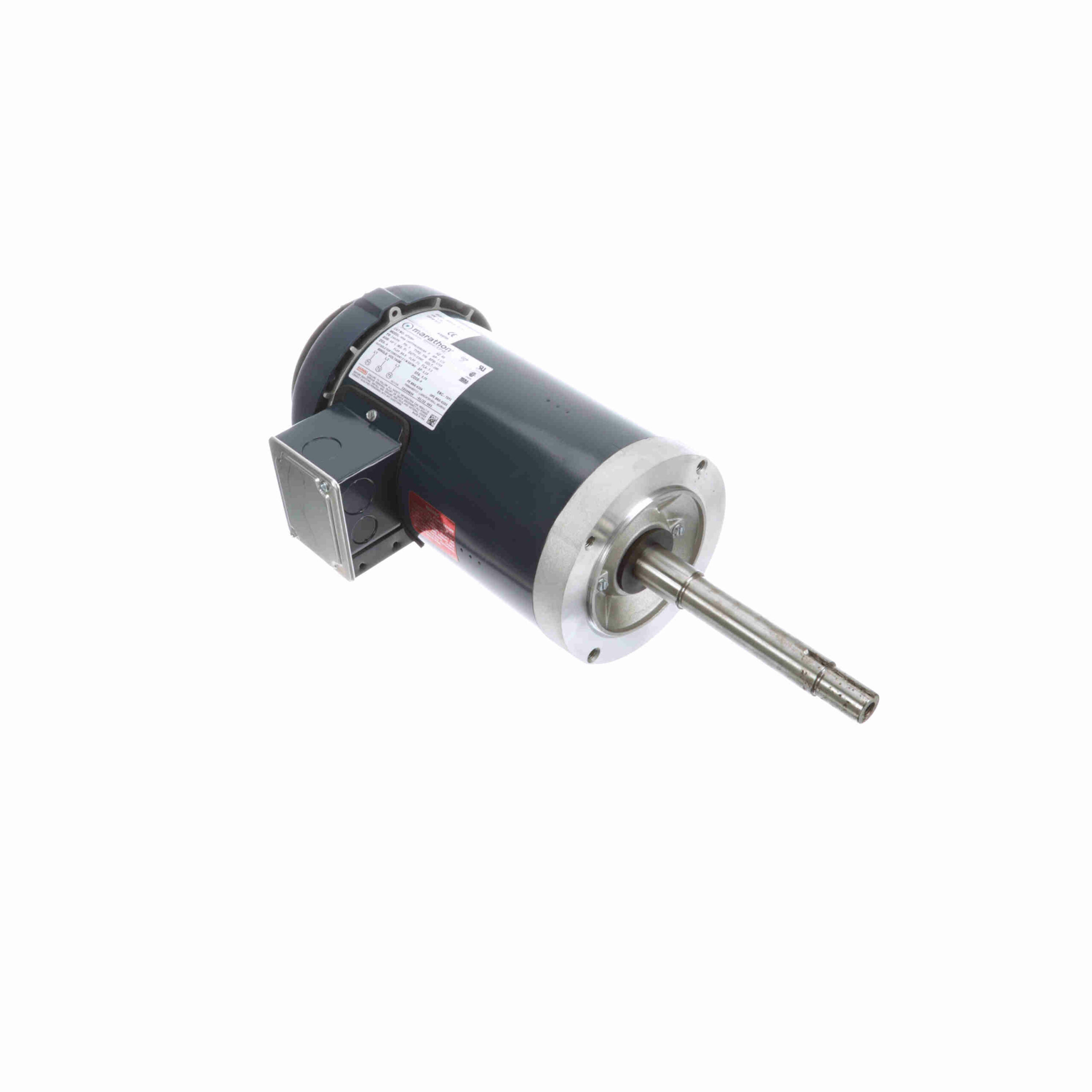

Powered by Marathon’s century-long heritage of American engineering excellence, the Marathon GT5304 Close Coupled Pump Motors is built to deliver robust performance, high efficiency, and consistent torque across demanding industrial and commercial applications. With key specifications including 1 1/2 HP, 200 V, 1800 RPM, a durable 145JPV frame, and 5.3 Amps, this motor provides reliable, stable operation from the moment it is installed.
Constructed using premium materials and Class F insulation, the GT5304 features a rugged TEFC enclosure designed to withstand harsh environments, including high-moisture, dusty, and heavy-load conditions. Engineered for continuous Continuous duty, it delivers reduced thermal stress, lower vibration, and long-lasting durability, even in severe-duty or inverter-driven applications.
Designed for versatility, the Marathon GT5304 Close Coupled Pump Motors performs exceptionally well in pumps, compressors, HVAC systems, conveyors, material-handling equipment, agricultural machinery, and OEM industrial systems. Its Round configuration and broad NEMA/IEC compatibility make integration simple for both new installations and direct replacement scenarios.
Backed by Marathon’s reputation for durability, energy efficiency, and industry-proven reliability, this motor offers an excellent balance of performance and long service life. Electracore is your trusted Canadian supplier of genuine Marathon motors, providing expert technical guidance and fast nationwide delivery.
| Brand | Marathon |
|---|---|
| General Category | Pump > Close-Coupled Pump Motors |
| Product Category | Pump Motors |
| Sub Category | Close-Coupled Pump Motors |
| Horsepower | 1 1/2 |
| Voltage | 200 |
| RPM | 1800 |
| Amps | 5.3 |
| Frequency | 60 |
| Frame | 145JPV |
| Enclosure | TEFC |
| Rotation | Reversible |
| Mounting | Round |
| Max Ambient | 40°C |
| Phases | 3 |
| Assemblybox Mounting | F1 ONLY |
| Motor Orientation | Horizontal Or Shaft Down |
| Motor Type | Squirrel Cage Inverter Rated |
| Number Of Poles | 4 |
| CSA Certified | Yes |
| CE Certified | Yes |
| Duty Cycle | Continuous |
| Efficiency | 86.5 |
| Insulation Class | F |
| IP Rating | 43 |
| KVA Code | P |
| NEMA Design | A |
| Starting Type | Line Or Inverter |
| Overload Protector | No Protection |
| Power Rating In Kw | 1.1 |
| Speeds | 1 |
| Power Factor | 71 |
| Service Factor | 1.15 |
| Resistance Main | 7.9 |
| Speed2 | 1755 |
| De Bearing Size | 6206 |
| De Bearing Type | Ball |
| Ode Bearing Size | 6203 |
| Ode Bearing Type | Ball |
| Dim Unit | IN |
| Length | 29.00 |
| Width | 13.25 |
| Height | 12.00 |
| Shaft Diameter | 0.875 |
| Shaft Extension | 7.31 |
| Shaft Type | JP |
| C Dim | 20.35 |
| Frame Length | 9.6 |
| Frame Material | Rolled Steel |
| Weight Unit | LB |
| Weight | 49.00 |
| Url-3d Cad | https://ids.regalbeloit.com/CnxDocRequest/PublishedPDF/2017/documents/100659-906_RevB.zip |
| Url-datapack | https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/2001/Article_145TTFR16061_DataPack_9.pdf |
| Connection Drawing No | A-EE7300 |
| Outline Drawing No | B-100659-906 |
| Ul | Recognized |
| Manufacturer | Regal Beloit |
| Part ID | 145TTFR16061 |
| UPC | 722856005458 |
| Cross Reference | 145TTFBD6045 |
| Supersedes | N/A |
| Features | Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007 Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque Class F Insulation F1 mounting only, cannot reassemble to F2 |
