| Total Sales | 0 |
|---|---|

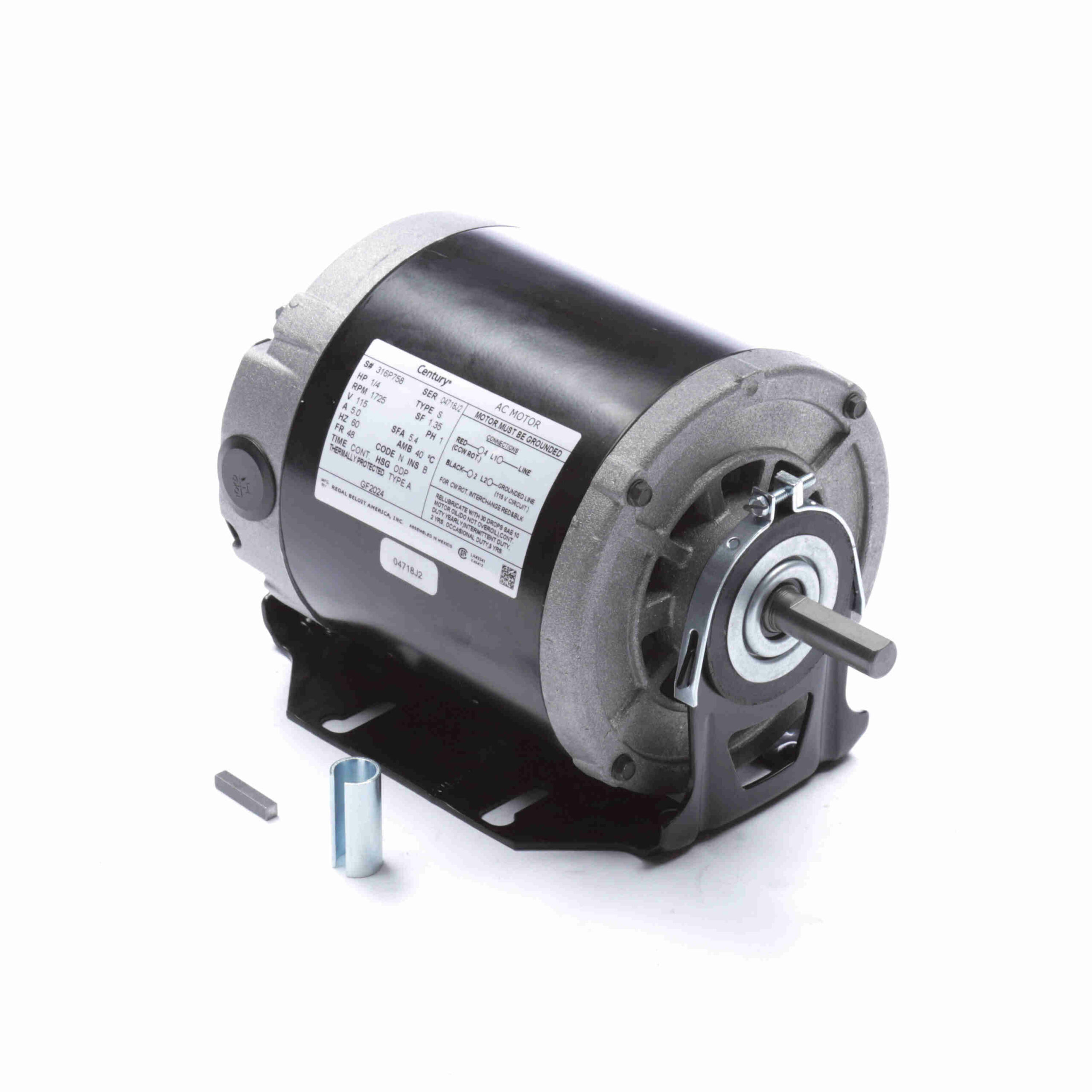

| Brand | Century |
| General Category | AC Motors – NEMA |
| Product Category | HVAC/R Motors |
| Sub Category | Fan and Blower Motors |
| Horsepower | 0.25 |
| Voltage | 115 |
| RPM | 1725 |
| Amps | 5.0 |
| Frequency | 60 |
| Enclosure | Open Drip Proof |
| Rotation | Reversible |
| Mounting | Resilient Base |
| Max Ambient | 40°C |
| Phases | 1 |
| Motor Type | Split Phase |
| Number Of Poles | 4 |
| CSA Certified | Yes |
| CE Certified | Yes |
| Duty Cycle | Continuous |
| Insulation Class | B |
| Starting Type | Across The Line |
| Overload Protector | Automatic |
| Power Rating In Kw | 0.19 |
| Speeds | 1 |
| Service Factor | 1.35 |
| Speed2 | 1725 |
| De Bearing Type | Sleeve |
| Ode Bearing Type | Sleeve |
| Dim Unit | IN |
| Length | 11.00 |
| Width | 7.50 |
| Height | 7.00 |
| Shaft Diameter | 0.625 |
| Shaft Extension | 1.5 |
| Shaft Type | Flat |
| C Dim | 8.90 |
| Frame Length | 4.69 |
| Frame Material | Rolled Steel |
| Weight Unit | LB |
| Weight | 13.00 |
| Url-datapack | https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4563/Article_GF2024_DataPack_9.pdf |
| Connection Drawing No | 621417-001A |
| Outline Drawing No | GF2024-S01 |
| Ul | No |
| Manufacturer | Regal Beloit |
| Part ID | GF2024 |
| UPC | 786674021762 |
| Supersedes | BF2024 |
| Features | Automatic reset thermal protector prevents overheating.Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.Permanently lubricated, double-sealed bearings extend the lifetime of the motor.Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.Vertical/horizontal mounting for proper placement of the fan within airflow. |
