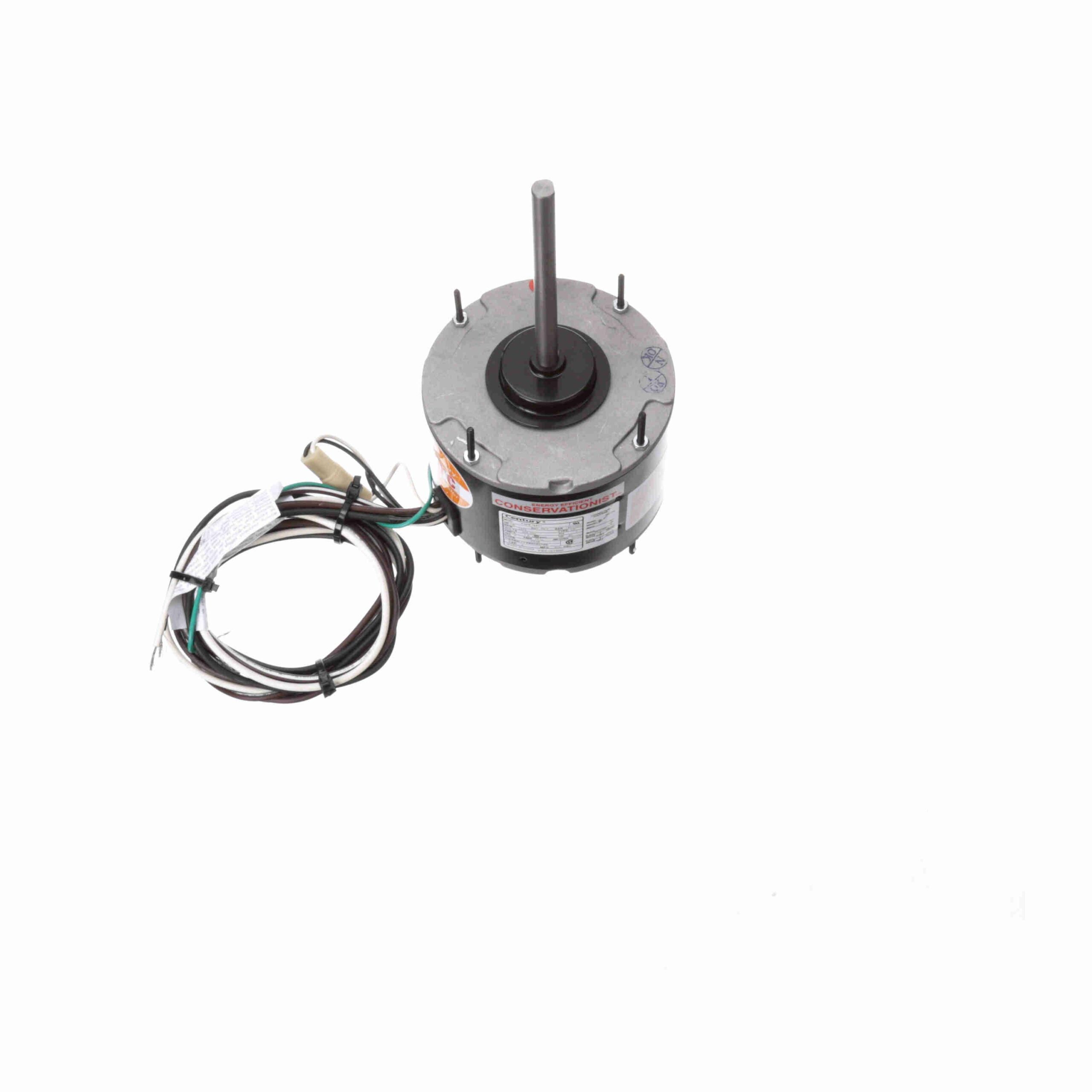

Our selection of Century Motors Condenser Fans FSE1016SF drives offers reliable variable speed control for Condenser Fans applications. Select a drive rated for 1/6-rated motors, with a wide range of input and output voltage options.
They feature 1 phase, 1/6 HP, 208-230 Voltage Rating, 1200 RPM Speed, Extended Studs mounting, 1.4 Amps, F Insulation Class, Air Over Duty, TE Enclosure Type. As trusted Century Motors motor suppliers and dealers, we make it easy to find the right model for industrial, commercial, or HVAC use.
The Century Motors is perfect for fans, blowers, furnaces, and air conditioners, providing a reliable, direct replacement that ensures consistent airflow and long system life.
Need help selecting the right motor speed controller or finding a legacy replacement? Contact our motor experts today.
| Total Sales | 0 |
|---|---|
| Brand | Century |
| General Category | AC Motors – NEMA |
| Product Category | HVAC/R Motors |
| Sub Category | Condenser Fans Motors |
| Horsepower | 1/6 |
| Voltage | 208-230 |
| RPM | 1200 |
| Amps | 1.4 |
| Frequency | 60 |
| Enclosure | TE |
| Rotation | Reversible |
| Mounting | Extended Studs |
| Max Ambient | 70°C |
| Phases | 1 |
| Motor Orientation | Any |
| Motor Type | Permanent Split Capacitor |
| Number Of Poles | 6 |
| CSA Certified | Y |
| CE Certified | N |
| Duty Cycle | Air Over |
| Insulation Class | F |
| Starting Type | Across The Line |
| Overload Protector | Automatic |
| Power Rating In Kw | 0.13 |
| Speeds | 1 |
| Service Factor | 1 |
| Speed2 | 1075 |
| De Bearing Type | Sleeve |
| Ode Bearing Type | Sleeve |
| Dim Unit | IN |
| Length | 13.78 |
| Width | 6.41 |
| Height | 6.81 |
| Shaft Diameter | 0.500 |
| Shaft Extension | 6.5 |
| Shaft Type | Double Flat |
| C Dim | 11.37 |
| Frame Length | 3.99 |
| Frame Material | Rolled Steel |
| Weight Unit | LB |
| Weight | 11.00 |
| Url-datapack | https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4563/Article_FSE1016SF_DataPack_9.pdf |
| Connection Drawing No | 614131-242 |
| Outline Drawing No | FSE1016SF-S01 |
| Ul | Recognized |
| Manufacturer | Regal Beloit |
| Part ID | FSE1016SF |
| UPC | 786674021366 |
| Cross Reference | FE1016SF |
| Supersedes | N/A |
| Features | HeatMaster – Condenser Fan – Heat Pump – Refrigeration Motor 5.6" Diameter – 48 Frame Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor) Thermally Protected Totally Enclosed Air Over Class F Insulation, 70°C Ambient Sleeve Bearing 1/2" Diameter Shaft with Double FlatИ" Leads Extended Studs Shaft and Lead End, Mounting Holes in Shell, Belly Band Mount |
