Our selection of Century Motors Condenser Fans FS1024S drives offers reliable variable speed control for Condenser Fans applications. Select a drive rated for 1/4-rated motors, with a wide range of input and output voltage options.
They feature 1 phase, 1/4 HP, 208-230 Voltage Rating, 1500 RPM Speed, Resilient Ring/Extended Studs mounting, 1.4 Amps, B Insulation Class, Air Over Duty, OAO Enclosure Type. As trusted Century Motors motor suppliers and dealers, we make it easy to find the right model for industrial, commercial, or HVAC use.
The Century Motors is perfect for fans, blowers, furnaces, and air conditioners, providing a reliable, direct replacement that ensures consistent airflow and long system life.
Need help selecting the right motor speed controller or finding a legacy replacement? Contact our motor experts today.
| Total Sales | 0 |
|---|---|
| Brand | Century |
| General Category | AC Motors – NEMA |
| Product Category | HVAC/R Motors |
| Sub Category | Condenser Fans Motors |
| Horsepower | 1/4 |
| Voltage | 208-230 |
| RPM | 1500 |
| Amps | 1.4 |
| Frequency | 50 |
| Enclosure | OAO |
| Rotation | Reversible |
| Mounting | Resilient Ring/Extended Studs |
| Max Ambient | 40°C |
| Phases | 1 |
| Motor Orientation | Any |
| Motor Type | Permanent Split Capacitor |
| Number Of Poles | 4 |
| CSA Certified | Y |
| CE Certified | N |
| Duty Cycle | Air Over |
| Insulation Class | B |
| Starting Type | Across The Line |
| Overload Protector | Automatic |
| Power Rating In Kw | 0.19 |
| Speeds | 1 |
| Service Factor | 1 |
| Speed2 | 1625 |
| De Bearing Type | Ball |
| Ode Bearing Type | Ball |
| Dim Unit | IN |
| Length | 15.55 |
| Width | 6.45 |
| Height | 6.81 |
| Shaft Diameter | 0.500 |
| Shaft Extension | 4.9 |
| Shaft Type | Double Flat |
| C Dim | 9.42 |
| Frame Length | 3.38 |
| Frame Material | Rolled Steel |
| Weight Unit | LB |
| Weight | 11.00 |
| Url-datapack | https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4564/Article_FS1024S_DataPack_9.pdf |
| Connection Drawing No | 614131-242 |
| Outline Drawing No | FS1024S-S01 |
| Ul | Recognized |
| Manufacturer | Regal Beloit |
| Part ID | FS1024S |
| UPC | 786674021236 |
| Supersedes | N/A |
| Features | Condenser Fan – Heat Pump – Refrigeration Motor 5.6" Diameter – 48 Frame Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor) Thermally Protected Enclosed, Except Open Lead End End-Frame Air Over Class B Insulation, 40°C Ambient Design Upgrade, Converting From Sleeve Bearing to Ball Bearing 1/2" Diameter Shaft with Double FlatЌ" Leads Extended Studs Shaft End and Lead End, Resilient Ring Mounting, Belly Band |
Enter your email and we’ll confirm availability for this item before you place your order.
Century Motors Motors For over 100 years, Century® has led the electric motor industry with breakthrough solutions across heating, ventilation, air conditioning (HVAC), recreational water, and industrial sectors. As a trusted partner to global clients, Century delivers high-performance, energy-efficient, and durable motor systems designed to meet evolving demand in commercial, industrial, residential, and recreational applications.
Whether your project requires an HVAC blower, pool pump motor, or heavy-duty industrial drive, Century continues to push boundaries, providing trusted, future-ready solutions for modern systems.

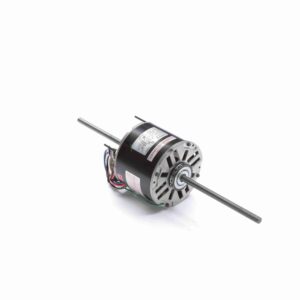

Matched products based on similar HP, RPM, Frame, Voltage, and Enclosure type.
HP: 1/4, RPM: 1500, Frame: 48Y, Voltage: 208, 230, Enclosure: OAO
| HP | 1/4 |
| RPM | 1500 |
| VOLTAGE | 208, 230 |
| FRAME | 48Y |
| PHASE | 1 |
| ENCLOSURE | OAO |
