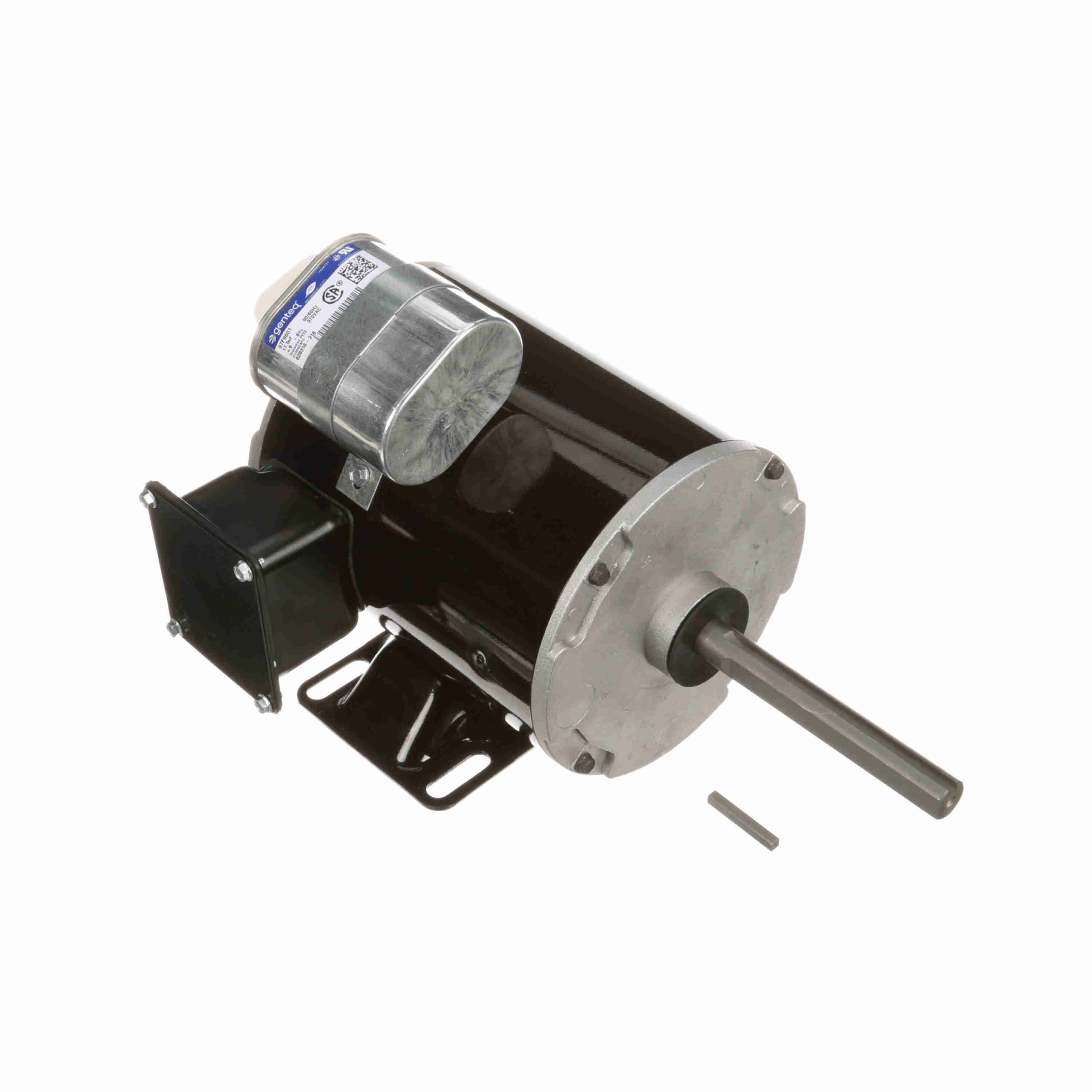

Our selection of Century Motors Condenser Fans FR1076 drives offers reliable variable speed control for Condenser Fans applications. Select a drive rated for 3/4-rated motors, with a wide range of input and output voltage options.
They feature 1 phase, 3/4 HP, 208-230/460 Voltage Rating, 1200 RPM Speed, Rigid Base mounting, 5.0/2.5 Amps, B Insulation Class, Air Over Duty, OAO Enclosure Type. As trusted Century Motors motor suppliers and dealers, we make it easy to find the right model for industrial, commercial, or HVAC use.
The Century Motors is perfect for fans, blowers, furnaces, and air conditioners, providing a reliable, direct replacement that ensures consistent airflow and long system life.
Need help selecting the right motor speed controller or finding a legacy replacement? Contact our motor experts today.
| Total Sales | 0 |
|---|---|
| Brand | Century |
| General Category | AC Motors – NEMA |
| Product Category | HVAC/R Motors |
| Sub Category | Condenser Fans Motors |
| Horsepower | 3/4 |
| Voltage | 208-230/460 |
| RPM | 1200 |
| Amps | 5.0/2.5 |
| Frequency | 60 |
| Enclosure | OAO |
| Rotation | Reversible |
| Mounting | Rigid Base |
| Max Ambient | 60°C |
| Phases | 1 |
| Motor Orientation | Any |
| Motor Type | Permanent Split Capacitor |
| Number Of Poles | 6 |
| CSA Certified | Y |
| CE Certified | N |
| Duty Cycle | Air Over |
| Insulation Class | B |
| Starting Type | Across The Line |
| Overload Protector | Automatic |
| Power Rating In Kw | 0.56 |
| Speeds | 1 |
| Service Factor | 1 |
| Speed2 | 1075 |
| De Bearing Type | Ball |
| Ode Bearing Type | Ball |
| Dim Unit | IN |
| Length | 12.87 |
| Width | 9.81 |
| Height | 9.81 |
| Shaft Diameter | 0.625 |
| Shaft Extension | 4.94 |
| Shaft Type | Keyed |
| C Dim | 12.19 |
| Frame Length | 6.25 |
| Frame Material | Rolled Steel |
| Weight Unit | LB |
| Weight | 27.00 |
| Url-datapack | https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4565/Article_FR1076_DataPack_9.pdf |
| Connection Drawing No | 614131-122 |
| Outline Drawing No | FR1076-S01 |
| Ul | Recognized |
| Manufacturer | Regal Beloit |
| Part ID | FR1076 |
| UPC | 786674021199 |
| Supersedes | N/A |
| Features | Condenser Fan Motor 5.6" Diameter – 48 Frame Permanent Split Capacitor (PSC); Capacitor Required: 17.5 Mfd-370 Volts (Supplied with Motor) Thermally Protected Open Lead End End-Frame, Shell Half Vented Lead End, Enclosed Shaft End End-Frame, Air Over Class B Insulation, 60°C Ambient Ball Bearing 5/8" Diameter Keyed Shaft with Flat Conduit Box Rigid Base |
Enter your email and we’ll confirm availability for this item before you place your order.
Century Motors Motors For over 100 years, Century® has led the electric motor industry with breakthrough solutions across heating, ventilation, air conditioning (HVAC), recreational water, and industrial sectors. As a trusted partner to global clients, Century delivers high-performance, energy-efficient, and durable motor systems designed to meet evolving demand in commercial, industrial, residential, and recreational applications.
Whether your project requires an HVAC blower, pool pump motor, or heavy-duty industrial drive, Century continues to push boundaries, providing trusted, future-ready solutions for modern systems.

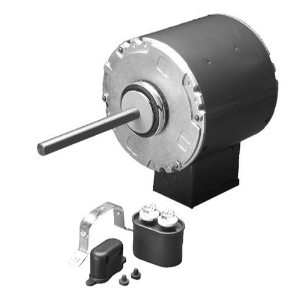

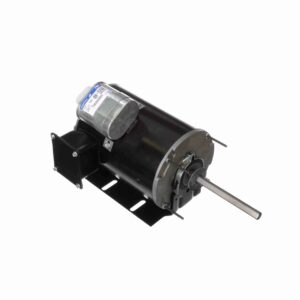

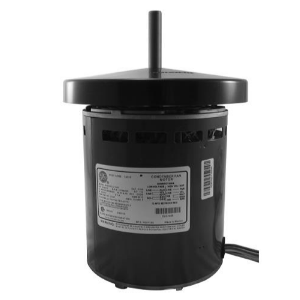

Matched products based on similar HP, RPM, Frame, Voltage, and Enclosure type.
