FM1076 Fan Coil & Air Conditioner Motors by Century Motors

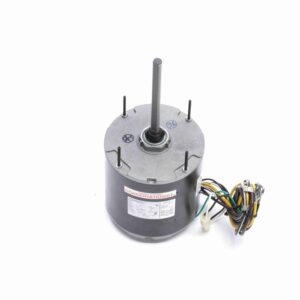

Century FM1076 3/4 HP 208-230V 1200 RPM OAO 1-Phase Motor

Name: Century FM1076 3/4 HP 208-230V 1200 RPM OAO 1-Phase Motor
Brand: Century
SKU: FM1076

Fan Coil & Air Conditioner Motors HVAC Motors

Brand: Century Motors

Category: Fan Coil & Air Conditioner Motors, HVAC Motors

Our selection of Century Motors Fan Coil & Air Conditioner Motors FM1076 drives offers reliable variable speed control for Fan Coil & Air Conditioner Motors applications. Select a drive rated for 3/4-rated motors, with a wide range of input and output voltage options.

They feature 1 phase, 3/4 HP, 208-230 Voltage Rating, 1200 RPM Speed, Lug mounting, 5.0 Amps, B Insulation Class, Air Over Duty, OAO Enclosure Type. As trusted Century Motors motor suppliers and dealers, we make it easy to find the right model for industrial, commercial, or HVAC use.

The Century Motors is perfect for fans, blowers, furnaces, and air conditioners, providing a reliable, direct replacement that ensures consistent airflow and long system life.

Need help selecting the right motor speed controller or finding a legacy replacement? Contact our motor experts today.

Free Canadian Shipping on orders 499+Authorized Canadian distributorExpert tech support (phone & email)30-day return policy

Total Sales	0
Brand	Century
General Category	AC Motors – NEMA
Product Category	HVAC/R Motors
Sub Category	Fan Coil & Air Conditioner Motors
Horsepower	3/4
Voltage	208-230
RPM	1200
Amps	5.0
Frequency	60
Enclosure	OAO
Rotation	Reversible
Mounting	Lug
Max Ambient	50°C
Phases	1
Motor Orientation	Horizontal
Motor Type	Permanent Split Capacitor
Number Of Poles	6
CSA Certified	Y
CE Certified	N
Duty Cycle	Air Over
Insulation Class	B
Starting Type	Across The Line
Overload Protector	Automatic
Power Rating In Kw	0.56
Speeds	3
Service Factor	1
Speed2	1075
De Bearing Type	Sleeve
Ode Bearing Type	Sleeve
Dim Unit	IN
Length	12.87
Width	12.81
Height	12.81
Shaft Diameter	0.500
Shaft Extension	6
Shaft Type	Flat
C Dim	11.36
Frame Length	4.75
Frame Material	Rolled Steel
Weight Unit	LB
Weight	19.00
Url-datapack	https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4564/Article_FM1076_DataPack_9.pdf
Outline Drawing No	FM1076-S01
Ul	Recognized
Manufacturer	Regal Beloit
Part ID	FM1076
UPC	786674021144
Supersedes	N/A
Features	Fan Coil – Room Air Conditioner – Blower Motor 5.6" Diameter – 48 Frame Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor) Thermally Protected Open Air Over Class B Insulation, 50°C Ambient Sleeve Bearing 1/2" Diameter Shaft with FlatЂ" Leads Flex Mount

Enter your email and we’ll confirm availability for this item before you place your order.

Product Info

Fan Coil – Room Air Conditioner – Blower Motor 5.6″ Diameter – 48 Frame Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor) Thermally Protected Open Air Over Class B Insulation, 50°C Ambient Sleeve Bearing 1/2″ Diameter Shaft with FlatЂ” Leads Flex Mount

Brand: Century

HP: 3/4

Voltage: 208, 230

RPM: 1200

Amperage: 5.0

Frame: 48Y

Enclosure: OAO

Phase: 1

-

Mounting Type: Lug

Insulation Class: B

Service Factor: 1

Duty Cycle: Air Over

-

Century Motors Motors For over 100 years, Century® has led the electric motor industry with breakthrough solutions across heating, ventilation, air conditioning (HVAC), recreational water, and industrial sectors. As a trusted partner to global clients, Century delivers high-performance, energy-efficient, and durable motor systems designed to meet evolving demand in commercial, industrial, residential, and recreational applications.

Whether your project requires an HVAC blower, pool pump motor, or heavy-duty industrial drive, Century continues to push boundaries, providing trusted, future-ready solutions for modern systems.
