FH1076 Condenser Fans by Century Motors

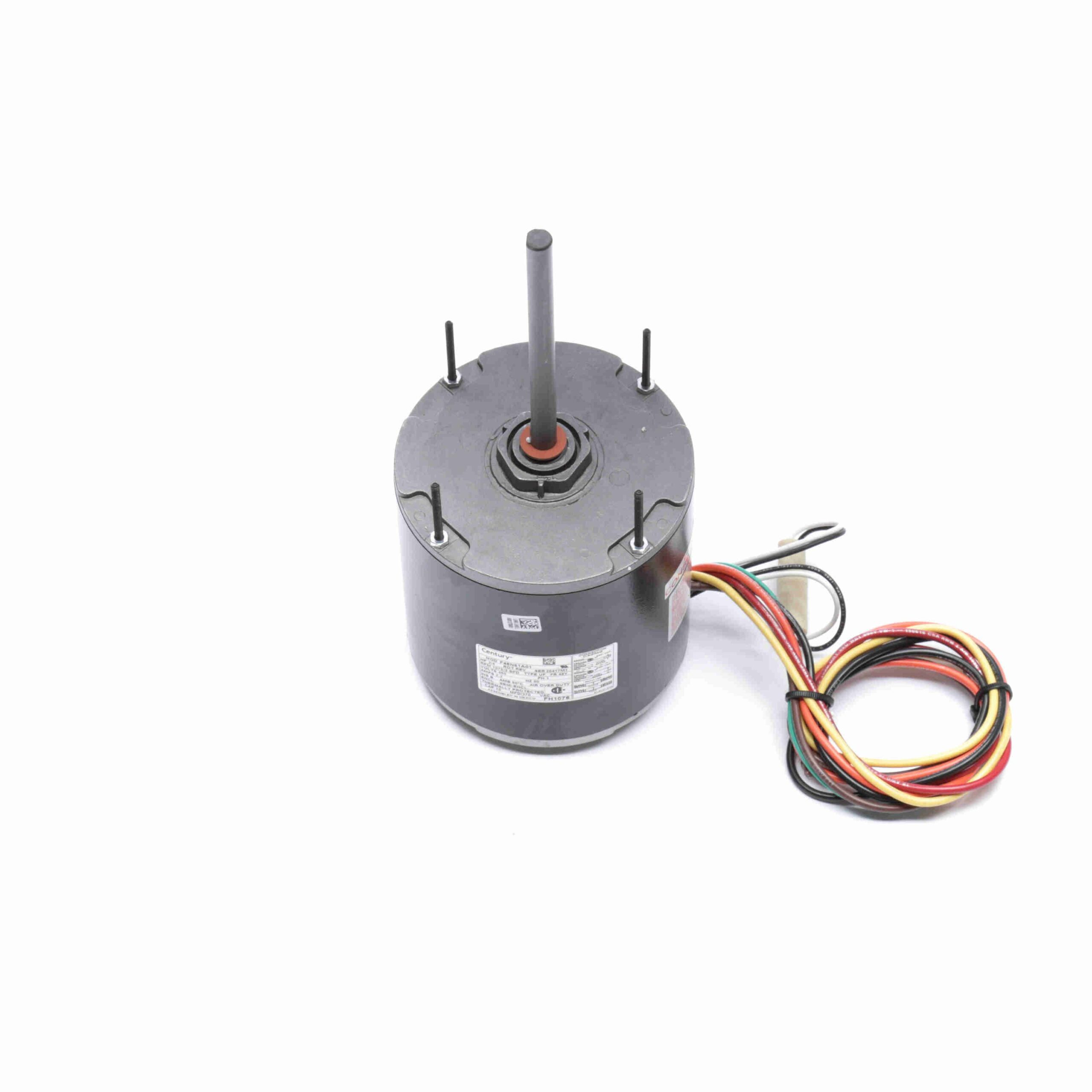

Century FH1076 3/4 HP 460V 1200 RPM OAO 1-Phase Motor

Name: Century FH1076 3/4 HP 460V 1200 RPM OAO 1-Phase Motor
Brand: Century
SKU: FH1076
Availability: LimitedAvailability

Condenser Fans HVAC Motors

Brand: Century Motors

Category: HVAC Motors, Condenser Fans

Our selection of Century Motors Condenser Fans FH1076 drives offers reliable variable speed control for Condenser Fans applications. Select a drive rated for 3/4-rated motors, with a wide range of input and output voltage options.

They feature 1 phase, 3/4 HP, 460 Voltage Rating, 1200 RPM Speed, Extended Studs mounting, 2.2 Amps, B Insulation Class, Air Over Duty, OAO Enclosure Type. As trusted Century Motors motor suppliers and dealers, we make it easy to find the right model for industrial, commercial, or HVAC use.

The Century Motors is perfect for fans, blowers, furnaces, and air conditioners, providing a reliable, direct replacement that ensures consistent airflow and long system life.

Need help selecting the right motor speed controller or finding a legacy replacement? Contact our motor experts today.

Authorized Canadian distributorExpert tech support (phone & email)30-day return policy

Brand	Century
General Category	AC Motors – NEMA
Product Category	HVAC/R Motors
Sub Category	Condenser Fans Motors
Horsepower	3/4
Voltage	460
RPM	1200
Amps	2.2
Frequency	60
Enclosure	OAO
Rotation	Reversible
Mounting	Extended Studs
Max Ambient	60°C
Phases	1
Motor Orientation	Any
Motor Type	Permanent Split Capacitor
Number Of Poles	6
CSA Certified	Y
CE Certified	N
Duty Cycle	Air Over
Insulation Class	B
Starting Type	Across The Line
Overload Protector	Automatic
Power Rating In Kw	0.56
Speeds	2
Service Factor	1
Speed2	1075
De Bearing Type	Ball
Ode Bearing Type	Ball
Dim Unit	IN
Length	16.12
Width	7.31
Height	7.37
Shaft Diameter	0.500
Shaft Extension	6.4
Shaft Type	Double Flat
C Dim	12.62
Frame Length	5.13
Frame Material	Rolled Steel
Weight Unit	LB
Weight	20.00
Url-datapack	https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4564/Article_FH1076_DataPack_9.pdf
Connection Drawing No	614131-244
Outline Drawing No	FH1076-S01
Ul	Recognized
Manufacturer	Regal Beloit
Part ID	FH1076
UPC	786674021090
Supersedes	N/A
Features	Condenser Fan – Heat Pump – Refrigeration Motor 5.6" Diameter – 48 Frame Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor) Thermally Protected Enclosed, Except Open Lead End End-Frame Air Over Class B Insulation, 60°C Ambient Ball Bearing 1/2" Diameter Shaft with Double FlatЃ" Leads Extended Studs Shaft End, Hex Mounting Hub on Both Ends for Resilient Base Mounting (Resilient Rings Not Included), Belly Band

Enter your email and we’ll confirm availability for this item before you place your order.

Product Info

Condenser Fan – Heat Pump – Refrigeration Motor 5.6″ Diameter – 48 Frame Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor) Thermally Protected Enclosed, Except Open Lead End End-Frame Air Over Class B Insulation, 60°C Ambient Ball Bearing 1/2″ Diameter Shaft with Double FlatЃ” Leads Extended Studs Shaft End, Hex Mounting Hub on Both Ends for Resilient Base Mounting (Resilient Rings Not Included), Belly Band

Brand: Century

HP: 3/4

Voltage: 460

RPM: 1200

Amperage: 2.2

Frame: 48Y

Enclosure: OAO

Phase: 1

-

Mounting Type: Extended Studs

Insulation Class: B

Service Factor: 1

Duty Cycle: Air Over

-

Century Motors Motors For over 100 years, Century® has led the electric motor industry with breakthrough solutions across heating, ventilation, air conditioning (HVAC), recreational water, and industrial sectors. As a trusted partner to global clients, Century delivers high-performance, energy-efficient, and durable motor systems designed to meet evolving demand in commercial, industrial, residential, and recreational applications.

Whether your project requires an HVAC blower, pool pump motor, or heavy-duty industrial drive, Century continues to push boundaries, providing trusted, future-ready solutions for modern systems.
