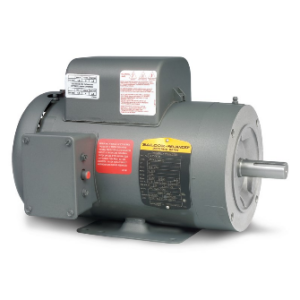

The Baldor-Reliance Farm Duty FDL3516TM-C motor delivers exceptional performance and efficiency for demanding industrial, commercial, and HVAC applications. Built with 1 phase, 2 HP, 208-230 Voltage Rating, 1800 RPM Speed, 56HCZ Frame, C-Face / Rigid mounting, 7.9 Amps, F Insulation Class, Continuous Duty, TEFC Enclosure Type, this motor ensures dependable power and long-term reliability.
Featuring a 1, TEFC, and C-Face / Rigid, this Baldor motor runs cooler, quieter, and longer—making it ideal for continuous operation in pumps, fans, compressors, conveyors, and gear reducers.
Whether used in manufacturing, agriculture, or HVAC systems, the Baldor-Reliance Farm Duty FDL3516TM-C provides the durability and performance professionals trust worldwide.
| Total Sales | 0 |
|---|---|
| Brand | Baldor |
| General Category | Motors > Farm Duty |
| Product Category | Farm Duty |
| Horsepower | 2 |
| Voltage | 208-230 |
| RPM | 1800 |
| Amps | 7.9 |
| Frequency | 60 Hz |
| Frame | 56HCZ |
| Enclosure | TEFC |
| Rotation | Reversible |
| Mounting | C-Face / Rigid |
| Phases | 1 |
| Motor Orientation | Horizontal |
| Number Of Poles | 4 |
| Duty Cycle | Continuous |
| Efficiency | 82.5 |
| Insulation Class | F |
| KVA Code | H |
| NEMA Design | L |
| Power Factor | 99 |
| Service Factor | 1.15 |
| De Bearing Type | 6205 |
| Ode Bearing Type | 6203 |
| Shaft Diameter | 0.875" |
| Shaft Extension | 2.25" |
| C Dim | 14.19" |
| Frame Material | Rolled Steel |
| Weight | 54lb |
| Url-datapack | x |
| Ambient Temp | 40°C |
| Grease | Polyrex EM |
| Greasable | Yes |
| Rpm Actual | 1800 |
| Lead Qty | 2 |
| Double Drilled | Yes |
| Baldor Datapack | tm1Aqw8BcmGC-12-2.pdf |
Enter your email and we’ll confirm availability for this item before you place your order.
Baldor-Reliance Motors is a trusted manufacturer of IEC electric motors designed for reliability, energy efficiency, and long service life. Our three‑phase TEFC motors are engineered for industrial performance in pumps, fans, compressors, conveyors, and HVAC systems. With a strong focus on innovation, sustainability, and global customer support, Baldor delivers motors that meet international standards (IE1, IE2, IE3) and provide dependable power for every application.
Matched products based on similar HP, RPM, Frame, Voltage, and Enclosure type.
HP: 2, RPM: 1800, Frame: 56HCZ, Voltage: 208, 230, Enclosure: TEFC
| HP | 2 |
| RPM | 1800 |
| VOLTAGE | 208, 230 |
| FRAME | 56HCZ |
| PHASE | 1 |
| ENCLOSURE | TEFC |
