FC.75402W01DOE General Purpose by WEG

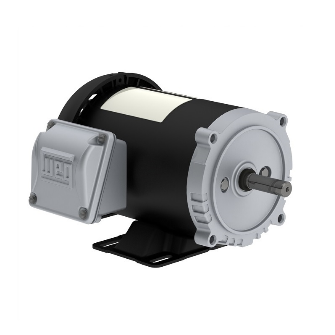

WEG FC.75402W01DOE 3/4 HP 230, 460V 3600 RPM 56C TEFC Motor

Name: WEG FC.75402W01DOE 3/4 HP 230, 460V 3600 RPM 56C TEFC Motor
Brand: WEG
SKU: FC.75402W01DOE
Price: 454.82 CAD
Availability: LimitedAvailability

General Purpose Motor

Brand: WEG

Category: General Purpose, Motors

$454.82

Harnessing the power of a global leader in industrial electrical engineering, the WEG Motors General Purpose FC.75402W01DOE is engineered for maximum operational uptime and superior energy efficiency across demanding applications. With primary specifications including 3/4 HP, 230, 460 Voltage Rating, 3600 RPM Speed, 56C Frame, C-Face / Rigid mounting, F Insulation Class, Continuous Duty, TEFC Enclosure Type, this motor delivers sustainable, reliable power right out of the box.

Built with premium cast-iron construction and high-grade F insulation, the motor features a TEFC enclosure for superior protection in harsh environments. Its Inverter Duty capability is standard, combined with WEG’s focus on innovative features and unwavering reliability, ensuring seamless variable-speed control, reduced energy waste, and extended motor life.

Designed to excel in core industrial processes, the WEG General Purpose FC.75402W01DOE is the motor of choice for water treatment pumps, specialised compressors, heavy-duty conveyors, and high-performance fans. Its robust construction is particularly suited for severe-duty industries like Mining, Oil & Gas, and Pulp & Paper, where dependability is non-negotiable.

As a commitment to long-term value, WEG models are highly rated, guaranteeing top-tier performance and the lowest total cost of ownership. Partner with Electracore, your certified Canadian WEG supplier, for expert selection advice, authentic products, and fast, reliable delivery.

Authorized Canadian distributorExpert tech support (phone & email)30-day return policy

Brand	WEG
General Category	Motors > General Purpose
Horsepower	3/4
Voltage	230, 460
RPM	3600
Frequency	60 Hz
Frame	56C
Enclosure	TEFC
Rotation	Reversible
Mounting	C-Face / Rigid
Max Ambient	40°C
Motor Orientation	Horizontal
Number Of Poles	2
Duty Cycle	Continuous
Efficiency	77
Insulation Class	F
IP Rating	IP55
NEMA Design	B
Power Factor	0.85
Service Factor	1.15
De Bearing Size	6203-ZZ
Ode Bearing Size	6202-ZZ
Shaft Diameter	0.625"
Shaft Extension	1.875"
C Dim	10.713"
Frame Material	Rolled Steel
Weight	20.5lb
Url-datapack	x
Warranty	2-Year
Grease	Polyrex EM
Greasable	Yes
Model Number	FC.75402
Approvals	CSA, cULus
Removable Feet	No
Warranty Details	2-Year

Enter your email and we’ll confirm availability for this item before you place your order.

Product Info

Brand: WEG

HP: 3/4

Voltage: 230, 460

RPM: 3600

-

Frame: 56C

Enclosure: TEFC

Phase: 3

Efficiency Rating: 77

Mounting Type: C-Face / Rigid

Insulation Class: F

Service Factor: 1.15

Duty Cycle: Continuous

-

WEG is a global powerhouse in electrical engineering, renowned for manufacturing highly reliable, energy-efficient motors and industrial solutions. The company is distinguished by its vertical integration, ensuring stringent quality control from raw material to finished product. WEG motors feature robust cast-iron construction, standardised Inverter Duty (VFD) capability, and a strong focus on IE3 and IE4 Premium Efficiency ratings. They are the ideal choice for severe-duty and mission-critical applications in sectors like Mining, Oil & Gas, and Water Treatment, where durability and minimising total cost of ownership are paramount. Trust Electracore as your certified Canadian supplier for authentic WEG products and expert support.
