F135 Farm Duty, General Purpose Farm Duty Motors by Marathon Motors

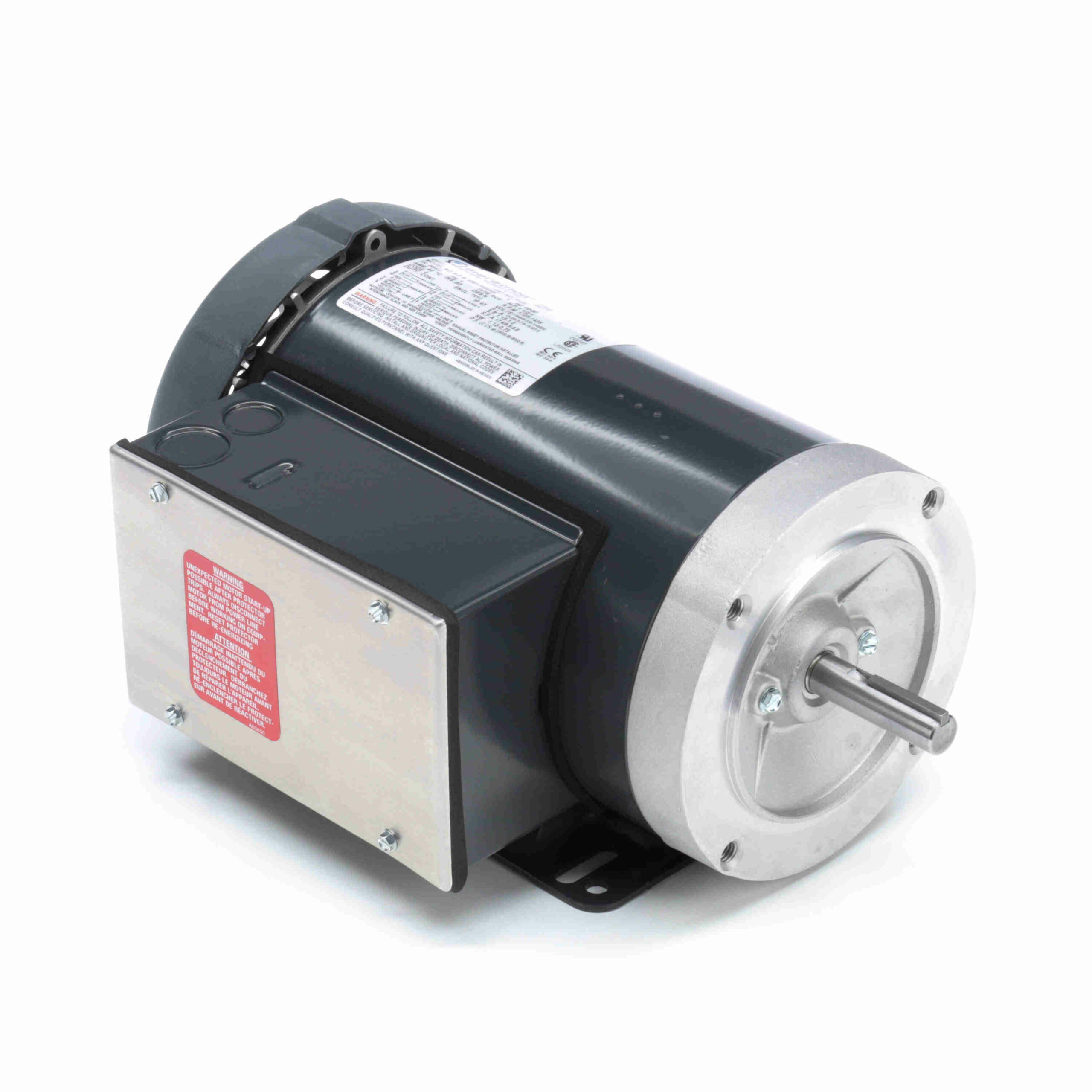

Marathon F135 1 1/2 HP 115/208-230V 1800 RPM 56HC TEFC 1-Phase Motor

Name: Marathon F135 1 1/2 HP 115/208-230V 1800 RPM 56HC TEFC 1-Phase Motor
Brand: Marathon
SKU: F135
Price: 505.34 CAD
Availability: LimitedAvailability

General Purpose Farm Duty Motors Motor

Brand: Marathon Motors

Category: Motors, Farm Duty, General Purpose Farm Duty Motors

$505.34

1 1/2HP

115/208-230Voltage

1800RPM

56HCFrame

Powered by Marathon’s century-long heritage of American engineering excellence, the Marathon F135 Farm Duty, General Purpose Farm Duty Motors is built to deliver robust performance, high efficiency, and consistent torque across demanding industrial and commercial applications. With key specifications including 1 1/2 HP, 115/208-230 V, 1800 RPM, a durable 56HC frame, and 15.2/8.2-7.6 Amps, this motor provides reliable, stable operation from the moment it is installed.

Constructed using premium materials and Class B insulation, the F135 features a rugged TEFC enclosure designed to withstand harsh environments, including high-moisture, dusty, and heavy-load conditions. Engineered for continuous Continuous duty, it delivers reduced thermal stress, lower vibration, and long-lasting durability, even in severe-duty or inverter-driven applications.

Designed for versatility, the Marathon F135 Farm Duty, General Purpose Farm Duty Motors performs exceptionally well in pumps, compressors, HVAC systems, conveyors, material-handling equipment, agricultural machinery, and OEM industrial systems. Its Rigid Base configuration and broad NEMA/IEC compatibility make integration simple for both new installations and direct replacement scenarios.

Backed by Marathon’s reputation for durability, energy efficiency, and industry-proven reliability, this motor offers an excellent balance of performance and long service life. Electracore is your trusted Canadian supplier of genuine Marathon motors, providing expert technical guidance and fast nationwide delivery.

Authorized Canadian distributorExpert tech support (phone & email)30-day return policy

Brand	Marathon
General Category	Motors > Farm Duty > General Purpose Farm Duty Motors
Product Category	Farm and Agriculture Motors
Sub Category	General Purpose Farm Duty Motors
Horsepower	1 1/2
Voltage	115/208-230
RPM	1800
Amps	15.2/8.2-7.6
Frequency	60
Frame	56HC
Enclosure	TEFC
Rotation	Selective Counterclockwise
Mounting	Rigid Base
Max Ambient	40°C
Phases	1
Assemblybox Mounting	F1 ONLY
Motor Orientation	Horizontal
Motor Type	Capacitor Start Induction Run
Number Of Poles	4
CSA Certified	Yes
CE Certified	Yes
Duty Cycle	Continuous
Efficiency	80
Insulation Class	B
IP Rating	43
KVA Code	J
NEMA Design	N
Starting Type	Across The Line
Overload Protector	Manual
Power Rating In Kw	1.1
Speeds	1
Power Factor	80
Service Factor	1.15
Resistance Main	0
Speed2	1725
De Bearing Size	6203
De Bearing Type	Ball
Ode Bearing Size	6203
Ode Bearing Type	Ball
Dim Unit	IN
Length	16.38
Width	10.50
Height	8.12
Shaft Diameter	0.625
Shaft Extension	2.06
Shaft Type	T
C Dim	13.82
Frame Length	8.56
Frame Material	Rolled Steel
Weight Unit	LB
Weight	41.00
Url-3d Cad	https://ids.regalbeloit.com/CnxDocRequest/PublishedPDF/2017/documents/104450-856_Rev2.zip
Url-datapack	https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/1995/Article_056B17F5584_DataPack_9.pdf
Connection Drawing No	102006-52
Outline Drawing No	A-104450-856
Ul	Recognized ( Not Protector)
Manufacturer	Regal Beloit
Part ID	056B17F5584
UPC	722856003300
Supersedes	N/A
Features	Double-shielded bearings extend the service life of the motor. EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C). Shaft flingers protect bearings from damage caused by dirt and rain. Condensation drains allow the motor to expel and drain built-up moisture.

Enter your email and we’ll confirm availability for this item before you place your order.

Product Info

Double-shielded bearings extend the service life of the motor. EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C). Shaft flingers protect bearings from damage caused by dirt and rain. Condensation drains allow the motor to expel and drain built-up moisture.

Brand: Marathon

HP: 1 1/2

Voltage: 115, 208, 230

RPM: 1800

Amperage: 15.2/8.2-7.6

Frame: 56HC

Enclosure: TEFC

Phase: 1

Efficiency Rating: 80

Mounting Type: Rigid Base

Insulation Class: B

Service Factor: 1.15

Duty Cycle: Continuous

-

Marathon Motors provides durable, energy-efficient electric motors designed for industrial and commercial applications, including pumps, HVAC systems, compressors, conveyors, and material-handling equipment. Built for long service life and dependable performance, Marathon’s NEMA and IEC motors are trusted worldwide. Electracore is your reliable Canadian supplier of authentic Marathon products with fast delivery and technical guidance.
