EM3603 General Purpose by Baldor

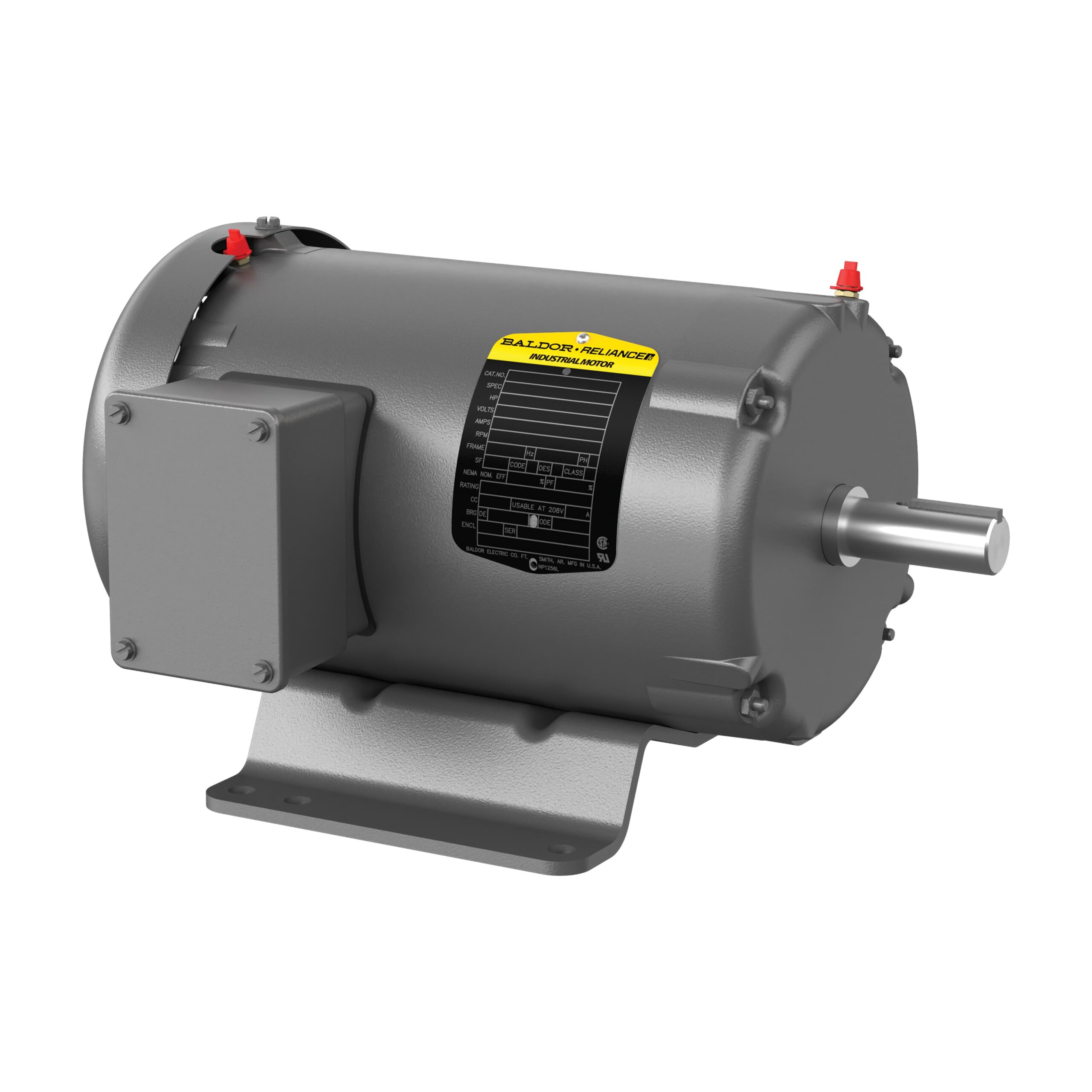

Baldor EM3603 1 HP 230, 460V 1800 RPM 182 TEFC 3-Phase Motor

Name: Baldor EM3603 1 HP 230, 460V 1800 RPM 182 TEFC 3-Phase Motor
Brand: Baldor
SKU: EM3603
Availability: LimitedAvailability

General Purpose Motor

Brand: Baldor

Category: General Purpose, Motors

The Baldor-Reliance General Purpose EM3603 motor delivers exceptional performance and efficiency for demanding industrial, commercial, and HVAC applications. Built with 3 phase, 1 HP, 230, 460 Voltage Rating, 1800 RPM Speed, 182 Frame, Rigid mounting, 1.5 Amps, F Insulation Class, Continuous Duty, TEFC Enclosure Type, this motor ensures dependable power and long-term reliability.

Featuring a 3, TEFC, and Rigid, this Baldor motor runs cooler, quieter, and longer—making it ideal for continuous operation in pumps, fans, compressors, conveyors, and gear reducers.

Whether used in manufacturing, agriculture, or HVAC systems, the Baldor-Reliance General Purpose EM3603 provides the durability and performance professionals trust worldwide.

Authorized Canadian distributorExpert tech support (phone & email)30-day return policy

Brand	Baldor
General Category	Motors > General Purpose
Product Category	Motors > General Purpose
Horsepower	1
Voltage	230, 460
RPM	1800
Amps	1.5
Frequency	60 Hz
Frame	182
Enclosure	TEFC
Rotation	Reversible
Mounting	Rigid
Phases	3
Number Of Poles	4
Duty Cycle	Continuous
Efficiency	85.5
Insulation Class	F
KVA Code	F
NEMA Design	B
Speeds	1 Speed
Power Factor	71
Service Factor	1.15
De Bearing Type	6206
Ode Bearing Type	6203
Shaft Diameter	0.875"
Shaft Extension	2.25"
C Dim	13.76"
Frame Material	Rolled Steel
Weight	38lb
Url-datapack	x
Ambient Temp	40 °C
Grease	Polyrex EM
Greasable	Yes
Spec Number	35L108M492G1
Rpm Actual	1800
Full Load Amps	3.1
Lead Qty	9
Double Drilled	No
Baldor Datapack	https://www.baldor.com/api/products/EM3603/infopacket

Enter your email and we’ll confirm availability for this item before you place your order.

Product Info

Brand: Baldor

HP: 1

Voltage: 230, 460

RPM: 1800

Amperage: 1.5

Frame: 182

Enclosure: TEFC

Phase: 3

Efficiency Rating: 85.5

Mounting Type: Rigid

Insulation Class: F

Service Factor: 1.15

Duty Cycle: Continuous

Ambient Temperature Rating: 40 °C

Baldor-Reliance Motors is a trusted manufacturer of IEC electric motors designed for reliability, energy efficiency, and long service life. Our three‑phase TEFC motors are engineered for industrial performance in pumps, fans, compressors, conveyors, and HVAC systems. With a strong focus on innovation, sustainability, and global customer support, Baldor delivers motors that meet international standards (IE1, IE2, IE3) and provide dependable power for every application.
