EM2551T-CI General Purpose by Baldor

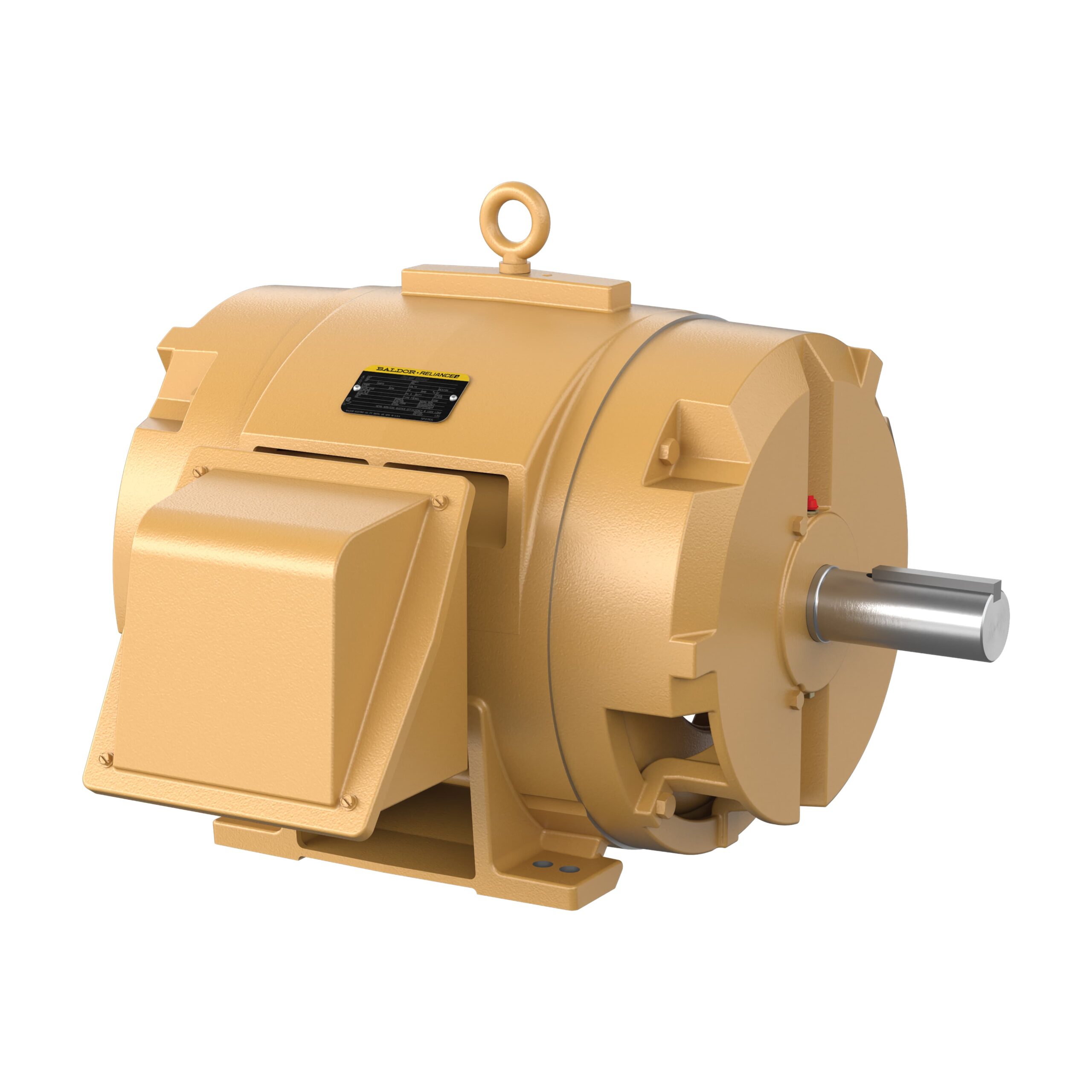

Baldor EM2551T-CI 75 HP 230, 460V 1800 RPM 365T ODP 3-Phase Motor

Name: Baldor EM2551T-CI 75 HP 230, 460V 1800 RPM 365T ODP 3-Phase Motor
Brand: Baldor
SKU: EM2551T-CI
Price: 9632.95 CAD
Availability: LimitedAvailability

General Purpose Motor

Brand: Baldor

Category: General Purpose, Motors

$9,632.95

75HP

230, 460Voltage

1800RPM

365TFrame

The Baldor-Reliance General Purpose EM2551T-CI motor delivers exceptional performance and efficiency for demanding industrial, commercial, and HVAC applications. Built with 3 phase, 75 HP, 230, 460 Voltage Rating, 1800 RPM Speed, 365T Frame, Rigid mounting, 173/86.5 Amps, F Insulation Class, Continuous Duty, ODP Enclosure Type, this motor ensures dependable power and long-term reliability.

Featuring a 3, ODP, and Rigid, this Baldor motor runs cooler, quieter, and longer—making it ideal for continuous operation in pumps, fans, compressors, conveyors, and gear reducers.

Whether used in manufacturing, agriculture, or HVAC systems, the Baldor-Reliance General Purpose EM2551T-CI provides the durability and performance professionals trust worldwide.

Authorized Canadian distributorExpert tech support (phone & email)30-day return policy

Brand	Baldor
General Category	Motors > General Purpose
Product Category	Motors > General Purpose
Horsepower	75
Voltage	230, 460
RPM	1800
Amps	173/86.5
Frequency	60 Hz
Frame	365T
Enclosure	ODP
Rotation	Reversible
Mounting	Rigid
Phases	3
Motor Orientation	Horizontal
Number Of Poles	4
Duty Cycle	Continuous
Efficiency	95
Insulation Class	F
KVA Code	G
NEMA Design	P
Power Factor	86
Service Factor	1.15
De Bearing Type	65BC03J30X
Ode Bearing Type	65BC03J30X
Shaft Diameter	2.375"
Shaft Extension	5.874"
C Dim	29.7"
Frame Material	Rolled Steel
Weight	762lb
Url-datapack	x
Warranty	3-Year
Ambient Temp	40°C
Grease	Polyrex EM
Greasable	Yes
Spec Number	P36G52
Rpm Actual	1780
Full Load Amps	86
Lead Qty	3
Double Drilled	Yes
Baldor Datapack	https://www.baldor.com/api/products/EM2551T-CI/infopacket

Enter your email and we’ll confirm availability for this item before you place your order.

Product Info

Brand: Baldor

HP: 75

Voltage: 230, 460

RPM: 1800

Amperage: 173/86.5

Frame: 365T

Enclosure: ODP

Phase: 3

Efficiency Rating: 95

Mounting Type: Rigid

Insulation Class: F

Service Factor: 1.15

Duty Cycle: Continuous

Ambient Temperature Rating: 40°C

Baldor-Reliance Motors is a trusted manufacturer of IEC electric motors designed for reliability, energy efficiency, and long service life. Our three‑phase TEFC motors are engineered for industrial performance in pumps, fans, compressors, conveyors, and HVAC systems. With a strong focus on innovation, sustainability, and global customer support, Baldor delivers motors that meet international standards (IE1, IE2, IE3) and provide dependable power for every application.
