ECP49306T-4 General Purpose by Baldor

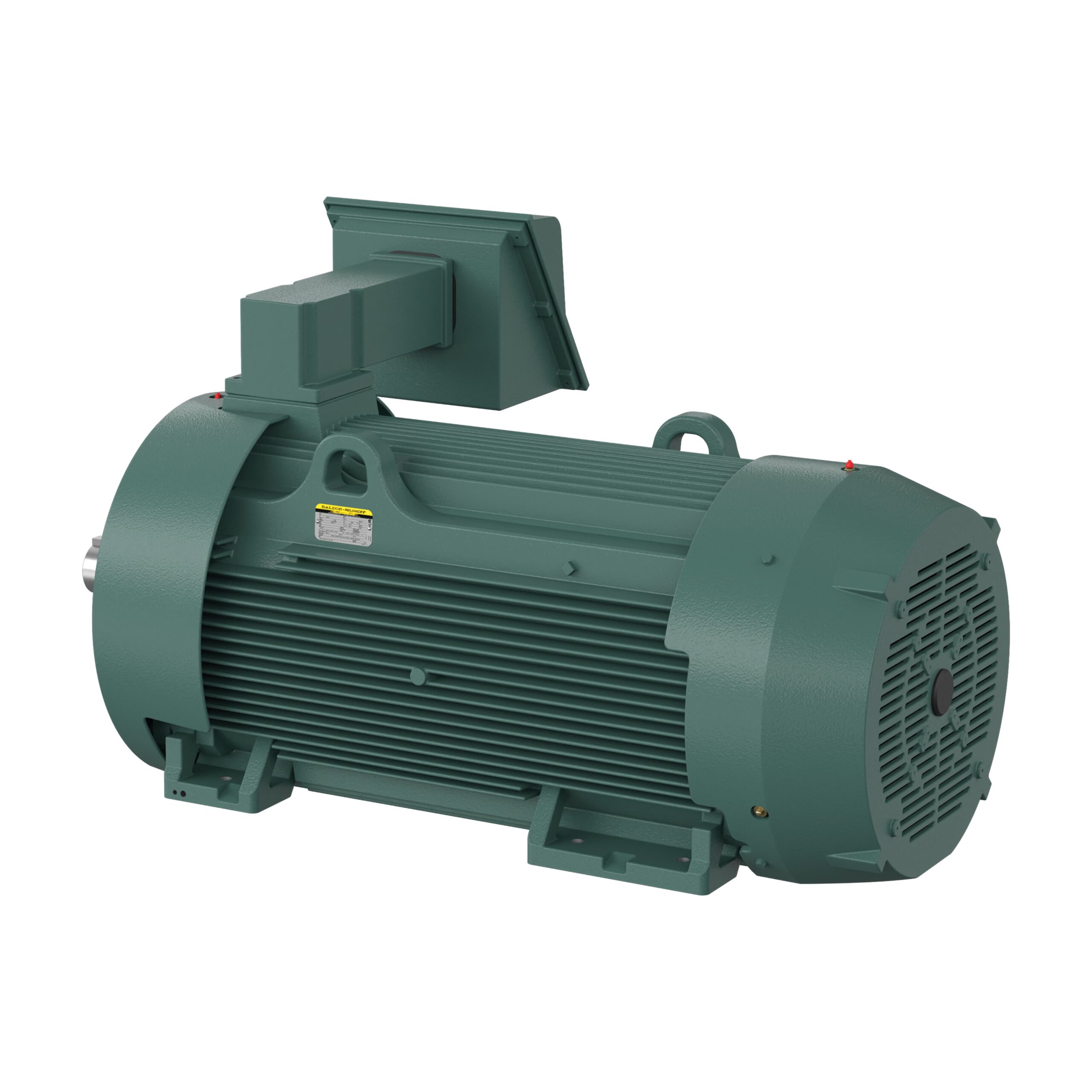

Baldor ECP49306T-4 300 HP 460V 1200 RPM 449T TEFC 3-Phase Motor

Name: Baldor ECP49306T-4 300 HP 460V 1200 RPM 449T TEFC 3-Phase Motor
Brand: Baldor
SKU: ECP49306T-4
Availability: LimitedAvailability

General Purpose Motor

Brand: Baldor

Category: General Purpose, Motors

The Baldor-Reliance General Purpose ECP49306T-4 motor delivers exceptional performance and efficiency for demanding industrial, commercial, and HVAC applications. Built with 3 phase, 300 HP, 460 Voltage Rating, 1200 RPM Speed, 449T Frame, Rigid mounting, 340 Amps, F Insulation Class, Continuous Duty, TEFC Enclosure Type, this motor ensures dependable power and long-term reliability.

Featuring a 3, TEFC, and Rigid, this Baldor motor runs cooler, quieter, and longer—making it ideal for continuous operation in pumps, fans, compressors, conveyors, and gear reducers.

Whether used in manufacturing, agriculture, or HVAC systems, the Baldor-Reliance General Purpose ECP49306T-4 provides the durability and performance professionals trust worldwide.

Authorized Canadian distributorExpert tech support (phone & email)30-day return policy

Brand	Baldor
General Category	Motors > General Purpose
Product Category	Motors > General Purpose
Horsepower	300
Voltage	460
RPM	1200
Amps	340
Frequency	60 Hz
Frame	449T
Enclosure	TEFC
Rotation	Reversible
Mounting	Rigid
Phases	3
Number Of Poles	6
Duty Cycle	Continuous
Efficiency	95.8
Insulation Class	F
KVA Code	G
NEMA Design	B
Speeds	1 Speed
Power Factor	86
Service Factor	1.15
De Bearing Type	6222
Ode Bearing Type	6318
Shaft Diameter	3.375"
Shaft Extension	8.5"
C Dim	60.13"
Frame Material	Cast Iron
Weight	3125lb
Url-datapack	x
Ambient Temp	40 °C
Grease	Polyrex EM
Greasable	Yes
Temp Code Sine Wave Power	T2C
Spec Number	A44-2587-4970
Rpm Actual	1190
Lead Qty	6
Double Drilled	No
Baldor Datapack	https://www.baldor.com/api/products/ECP49306T-4/infopacket

Enter your email and we’ll confirm availability for this item before you place your order.

Product Info

Brand: Baldor

HP: 300

Voltage: 460

RPM: 1200

Amperage: 340

Frame: 449T

Enclosure: TEFC

Phase: 3

Efficiency Rating: 95.8

Mounting Type: Rigid

Insulation Class: F

Service Factor: 1.15

Duty Cycle: Continuous

Ambient Temperature Rating: 40 °C

Baldor-Reliance Motors is a trusted manufacturer of IEC electric motors designed for reliability, energy efficiency, and long service life. Our three‑phase TEFC motors are engineered for industrial performance in pumps, fans, compressors, conveyors, and HVAC systems. With a strong focus on innovation, sustainability, and global customer support, Baldor delivers motors that meet international standards (IE1, IE2, IE3) and provide dependable power for every application.
