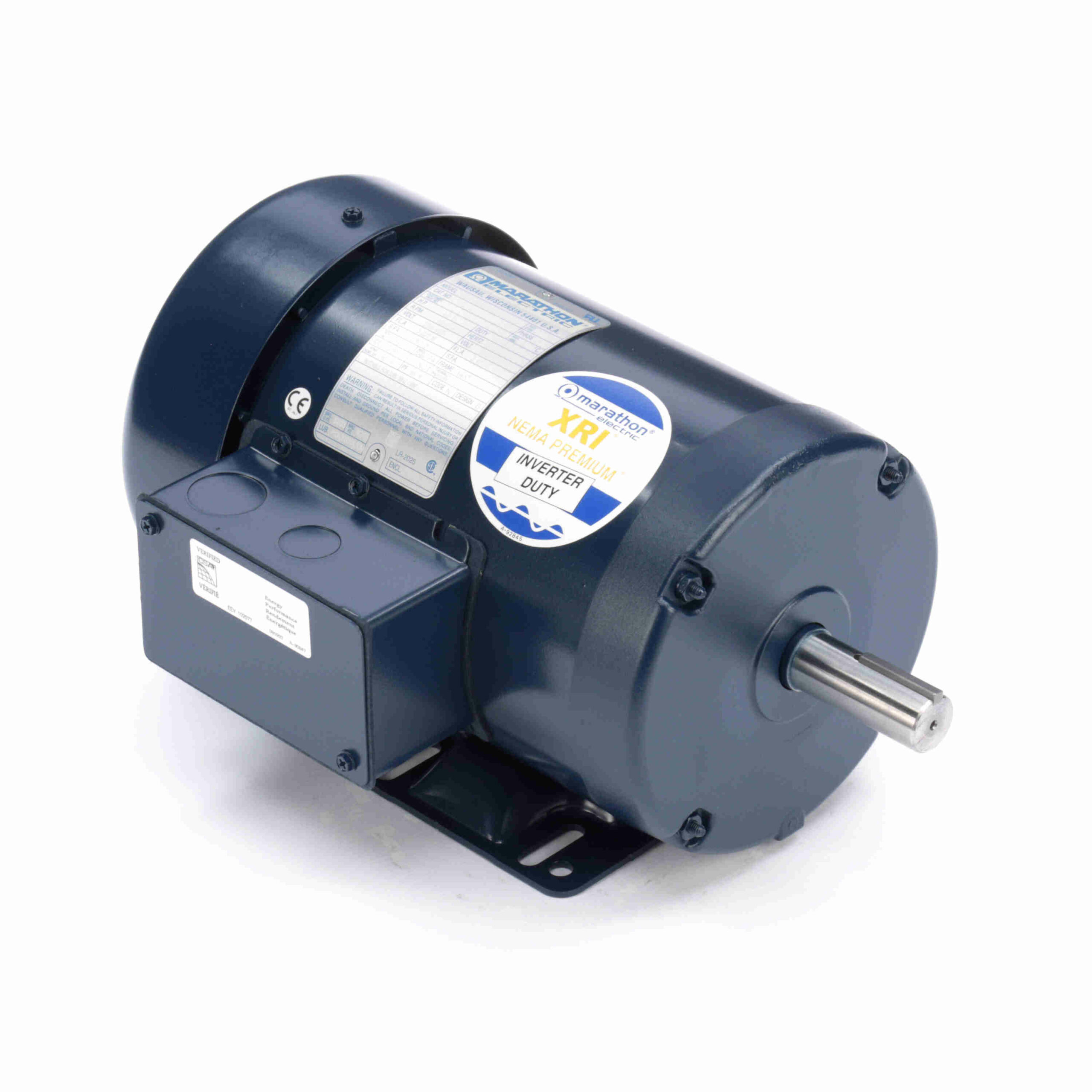

Marathon E2101 1 HP 208-230/460V 1800 RPM 143T TEFC 3-Phase Motor

Name: Marathon E2101 1 HP 208-230/460V 1800 RPM 143T TEFC 3-Phase Motor
Brand: Marathon
SKU: E2101
Price: 645.71 CAD
Availability: LimitedAvailability

Uncategorized Uncategorized

Brand: Marathon Motors

Category: Uncategorized

$645.71

1HP

208-230/460Voltage

1800RPM

143TFrame

Powered by Marathon’s century-long heritage of American engineering excellence, the Marathon E2101 Uncategorized is built to deliver robust performance, high efficiency, and consistent torque across demanding industrial and commercial applications. With key specifications including 1 HP, 208-230/460 V, 1800 RPM, a durable 143T frame, and 3.2-3.2/1.6 Amps, this motor provides reliable, stable operation from the moment it is installed.

Constructed using premium materials and Class F insulation, the E2101 features a rugged TEFC enclosure designed to withstand harsh environments, including high-moisture, dusty, and heavy-load conditions. Engineered for continuous Continuous duty, it delivers reduced thermal stress, lower vibration, and long-lasting durability, even in severe-duty or inverter-driven applications.

Designed for versatility, the Marathon E2101 Uncategorized performs exceptionally well in pumps, compressors, HVAC systems, conveyors, material-handling equipment, agricultural machinery, and OEM industrial systems. Its Rigid Base configuration and broad NEMA/IEC compatibility make integration simple for both new installations and direct replacement scenarios.

Backed by Marathon’s reputation for durability, energy efficiency, and industry-proven reliability, this motor offers an excellent balance of performance and long service life. Electracore is your trusted Canadian supplier of genuine Marathon motors, providing expert technical guidance and fast nationwide delivery.

Authorized Canadian distributorExpert tech support (phone & email)30-day return policy

Brand	Marathon
General Category	AC Motors – NEMA
Product Category	General Purpose Motors
Horsepower	1
Voltage	208-230/460
RPM	1800
Amps	3.2-3.2/1.6
Frequency	60
Frame	143T
Enclosure	TEFC
Rotation	Reversible
Mounting	Rigid Base
Max Ambient	40°C
Phases	3
Assemblybox Mounting	F1 ONLY
Motor Orientation	Horizontal
Motor Type	Squirrel Cage Induction Run
Number Of Poles	4
CSA Certified	Yes
CE Certified	Yes
Duty Cycle	Continuous
Efficiency	85.5
Insulation Class	F
IP Rating	43
KVA Code	N
NEMA Design	B
Starting Type	Across The Line
Overload Protector	No Protection
Power Rating In Kw	0.75
Speeds	1
Power Factor	68.5
Service Factor	1.15
Resistance Main	12.96
Speed2	1760
De Bearing Size	6205
De Bearing Type	Ball
Ode Bearing Size	6203
Ode Bearing Type	Ball
Dim Unit	IN
Length	19.50
Width	10.44
Height	10.88
Shaft Diameter	0.875
Shaft Extension	2.38
Shaft Type	T
C Dim	13.25
Frame Length	7.
Frame Material	Rolled Steel
Weight Unit	LB
Weight	32.00
Url-3d Cad	https://ids.regalbeloit.com/CnxDocRequest/PublishedPDF/2017/documents/028753-700_Rev01.zip
Url-datapack	https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/1997/Article_143TTFR15642_DataPack_9.pdf
Connection Drawing No	00501001ME
Outline Drawing No	028753-700
Ul	Recognized
Manufacturer	Regal Beloit
Part ID	143TTFR15642
UPC	722856016379
Supersedes	N/A
Features	UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications. Continuous duty cycle design allows maximum operation at the rated power specifications. Class B or F Insulation protects motor for a maximum temperature rating. Permanently lubricated, double-sealed bearings extend the lifetime of the motor.

Enter your email and we’ll confirm availability for this item before you place your order.

Product Info

UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications. Continuous duty cycle design allows maximum operation at the rated power specifications. Class B or F Insulation protects motor for a maximum temperature rating. Permanently lubricated, double-sealed bearings extend the lifetime of the motor.

Brand: Marathon

HP: 1

Voltage: 208, 230, 460

RPM: 1800

Amperage: 3.2-3.2/1.6

Frame: 143T

Enclosure: TEFC

Phase: 3

Efficiency Rating: 85.5

Mounting Type: Rigid Base

Insulation Class: F

Service Factor: 1.15

Duty Cycle: Continuous

-

Marathon Motors provides durable, energy-efficient electric motors designed for industrial and commercial applications, including pumps, HVAC systems, compressors, conveyors, and material-handling equipment. Built for long service life and dependable performance, Marathon’s NEMA and IEC motors are trusted worldwide. Electracore is your reliable Canadian supplier of authentic Marathon products with fast delivery and technical guidance.
