D2C2J14 General Purpose by U.S. Motors

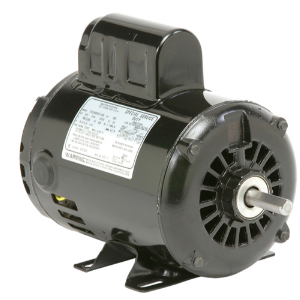

US Motors D2C2J14 2 HP 115 , 208-230V 1800 RPM 145T ODP 1-Phase Motor

Name: US Motors D2C2J14 2 HP 115 , 208-230V 1800 RPM 145T ODP 1-Phase Motor
Brand: US Motors
SKU: D2C2J14
Price: 519.20 CAD
Availability: LimitedAvailability

General Purpose Motor

Brand: U.S. Motors

Category: General Purpose, Motors

$519.20

2HP

115 , 208-230Voltage

1800RPM

145TFrame

Designed for performance and built to last, the U.S. Motors General Purpose D2C2J14 offers dependable power and energy-efficient operation across industrial, commercial, and HVAC systems. With specifications including 1 phase, 2 HP, 115 , 208-230 Voltage Rating, 1800 RPM Speed, 145T Frame, Rigid mounting, 20.0/11.3-10.0 Amps, B Insulation Class, Continuous Duty, ODP Enclosure Type, it’s designed to meet the toughest demands while minimizing maintenance and downtime.

Equipped with 1, ODP, and Rigid, this motor combines durable cast-iron construction, sealed bearings, and high-grade insulation to deliver consistent performance in both general-purpose and severe-duty environments.

Its inverter-duty capability supports variable-speed control, making it ideal for applications such as pumps, blowers, compressors, conveyors, and fans.

Many models are NEMA Premium® and EISA compliant, ensuring top-tier energy efficiency and long-term cost savings. From agriculture to industrial manufacturing, the U.S. Motors General Purpose D2C2J14 stands out for its reliability, flexibility, and proven engineering quality.

Looking for the right motor solution?

Partner with Electracore, your trusted Canadian U.S. Motors dealer, for authentic products, expert guidance, and quick nationwide delivery.

Authorized Canadian distributorExpert tech support (phone & email)30-day return policy

Brand	US Motors
General Category	Motors > General Purpose
Horsepower	2
Voltage	115 , 208-230
RPM	1800
Amps	20.0/11.3-10.0
Frequency	60
Frame	145T
Enclosure	ODP
Rotation	Reversible
Mounting	Rigid
Max Ambient	40 °C
Phases	1
Motor Orientation	Horizontal
Number Of Poles	4
Duty Cycle	Continuous
Efficiency	78.5
Insulation Class	B
KVA Code	H
Power Rating In Kw	1.5
Speeds	1 Speed
Service Factor	1.15
De Bearing Size	6203
De Bearing Type	BALL
Ode Bearing Size	6205
Shaft Diameter	0.875"
Shaft Extension	2.25"
C Dim	13.8"
Frame Material	Rolled Steel
Weight	42lb
Pdf 1	tU5wUsFT4T8U-104-50.pdf
Pdf 1 Link	/product-pdf/USM/tz5KTTROzJaT-87-14.pdf
Warranty	1-Year
Full Load Amps	11.3
Model Number	T063DCL1644012B
Overview	General Purpose Single Phase ODP Rigid Base Capacitor Start
Mfd	50
Approvals	CSA, UL & CE
Greasable	No
Rpm Actual	1725
Warranty Details	1-Year
Pdf 2 Link	/product-pdf/USM/tU5wUsFT4T8U-104-50.pdf
Ref Product Title 1	d2ca2j14
Product 1 Url	/product/d2ca2j14
Ref Product Title 2	d2cm2j14
Product 2 Url	/product/d2cm2j14
Ref Product Title 3	v102
Product 3 Url	/product/v102
Ref Product Title 4	l1322t
Product 4 Url	/product/l1322t
Ref Product Title 5	l1322tm
Product 5 Url	/product/l1322tm
Ref Product Title 6	i127
Product 6 Url	/product/i127
Pdf 3 Link	tWg38mj4Q6a0-102-68.pdf
Pdf 7 Link	tWg38mj4Q6a0-102-69.pdf
Pdf Catalog Page	tz5KTTROzJaT-87-14.pdf
Pdf Dimension Drawing	tU5wUsFT4T8U-104-50.pdf
Pdf Dimension Print	tWg38mj4Q6a0-102-68.pdf
Pdf Wiring Diagram	tWg38mj4Q6a0-102-69.pdf

General Purpose Single Phase ODP Rigid Base Capacitor Start

Enter your email and we’ll confirm availability for this item before you place your order.

Product Info

General Purpose Single Phase ODP Rigid Base Capacitor Start

Brand: US Motors

HP: 2

Voltage: 115, 208, 230

RPM: 1800

Amperage: 20.0/11.3-10.0

Frame: 145T

Enclosure: ODP

Phase: 1

Efficiency Rating: 78.5

Mounting Type: Rigid

Insulation Class: B

Service Factor: 1.15

Duty Cycle: Continuous

-

Since 1908, U.S. Motors® has been a trusted name in industrial motors, known for delivering reliable performance across a broad spectrum of applications. Their product line spans from fractional horsepower to 4,000 HP, covering general and special-purpose motors for HVAC, water treatment, mining, agriculture, industrial equipment, and more.

When stock solutions don’t match the need, their Commercial Engineering group offers customization to tailor motors specifically to your application. As your Canadian supplier, Electracore brings you authentic U.S. Motors products backed with technical support, warranty assurance, and reliable delivery.
