$389.25

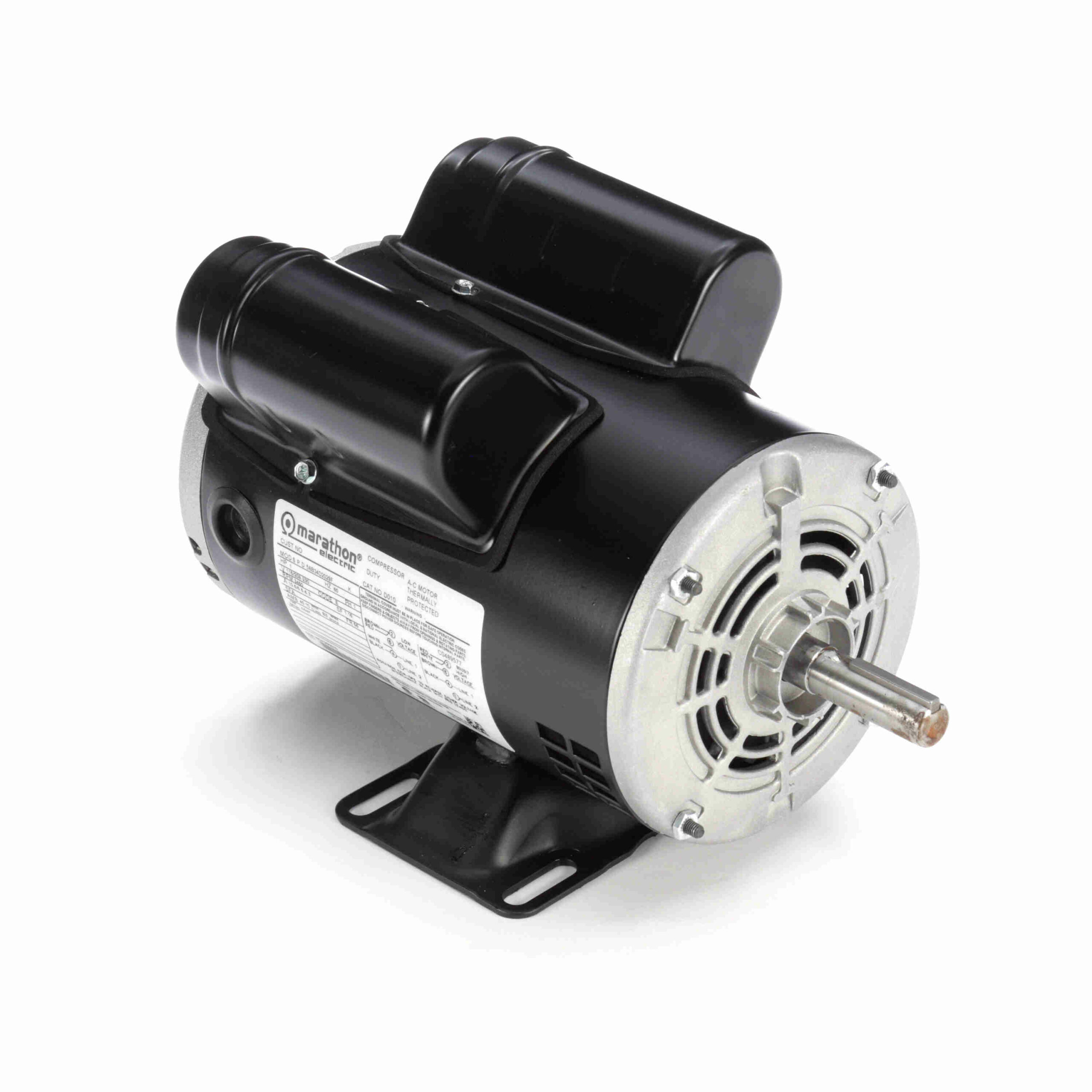

Powered by Marathon’s century-long heritage of American engineering excellence, the Marathon D010 Pressure Washer Motors, Definite Purpose is built to deliver robust performance, high efficiency, and consistent torque across demanding industrial and commercial applications. With key specifications including 1 HP, 115/208-230 V, 3600 RPM, a durable 56 frame, and 10.6/5.5-5.3 Amps, this motor provides reliable, stable operation from the moment it is installed.
Constructed using premium materials and Class B insulation, the D010 features a rugged DP enclosure designed to withstand harsh environments, including high-moisture, dusty, and heavy-load conditions. Engineered for continuous Continuous duty, it delivers reduced thermal stress, lower vibration, and long-lasting durability, even in severe-duty or inverter-driven applications.
Designed for versatility, the Marathon D010 Pressure Washer Motors, Definite Purpose performs exceptionally well in pumps, compressors, HVAC systems, conveyors, material-handling equipment, agricultural machinery, and OEM industrial systems. Its Rigid Base configuration and broad NEMA/IEC compatibility make integration simple for both new installations and direct replacement scenarios.
Backed by Marathon’s reputation for durability, energy efficiency, and industry-proven reliability, this motor offers an excellent balance of performance and long service life. Electracore is your trusted Canadian supplier of genuine Marathon motors, providing expert technical guidance and fast nationwide delivery.
| Brand | Marathon |
|---|---|
| General Category | Motors > Definite Purpose > Pressure Washer Motors |
| Product Category | Definite Purpose Motors |
| Sub Category | Pressure Washer Motors |
| Horsepower | 1 |
| Voltage | 115/208-230 |
| RPM | 3600 |
| Amps | 10.6/5.5-5.3 |
| Frequency | 60 |
| Frame | 56 |
| Enclosure | DP |
| Rotation | Selective Counterclockwise |
| Mounting | Rigid Base |
| Max Ambient | 40°C |
| Phases | 1 |
| Assemblybox Mounting | F1 ONLY |
| Motor Orientation | Horizontal |
| Motor Type | Capacitor Start Capacitor Run |
| Number Of Poles | 2 |
| CSA Certified | Yes |
| CE Certified | No |
| Duty Cycle | Continuous |
| Efficiency | 72 |
| Insulation Class | B |
| IP Rating | 22 |
| KVA Code | E |
| NEMA Design | NO DESIGN CODE |
| Starting Type | Across The Line |
| Overload Protector | Manual |
| Power Rating In Kw | 0.75 |
| Speeds | 1 |
| Power Factor | 83 |
| Service Factor | 1.15 |
| Resistance Main | 0 |
| Speed2 | 3450 |
| De Bearing Size | 6203 |
| De Bearing Type | Ball |
| Ode Bearing Size | 6203 |
| Ode Bearing Type | Ball |
| Dim Unit | IN |
| Length | 13.75 |
| Width | 7.88 |
| Height | 8.75 |
| Shaft Diameter | 0.625 |
| Shaft Extension | 1.88 |
| Shaft Type | T |
| C Dim | 11.72 |
| Frame Material | Rolled Steel |
| Weight Unit | LB |
| Weight | 23.00 |
| Url-3d Cad | https://ids.regalbeloit.com/CnxDocRequest/PublishedPDF/2017/documents/SS73736-775_Rev06.zip |
| Url-datapack | https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/2002/Article_056B34D2029_DataPack_9.pdf |
| Connection Drawing No | A-EE9002F |
| Outline Drawing No | A-SS73736-775 |
| Ul | Recognized |
| Manufacturer | Regal Beloit |
| Part ID | 056B34D2029 |
| UPC | 722856040107 |
| Cross Reference | 110160.00 |
| Supersedes | N/A |
| Features | Thermal protection prevents dangerous overheating that causes motor failure. Heavy-duty, rolled steel construction ensures motor durability. Double-shielded bearings extend the service life of the motor. High service factor rating (as noted). |
