Corrosion-resistant, powder coated epoxy finish
Durable, cast iron construction
Cast iron switch case, motor and pump housing
Engineered thermoplastic base
No sheet metal parts to rust or corrode
All castings are cast iron class 25-30 25000# tensile strength
Stainless steel screws, guard, handle, arm and seal assembly

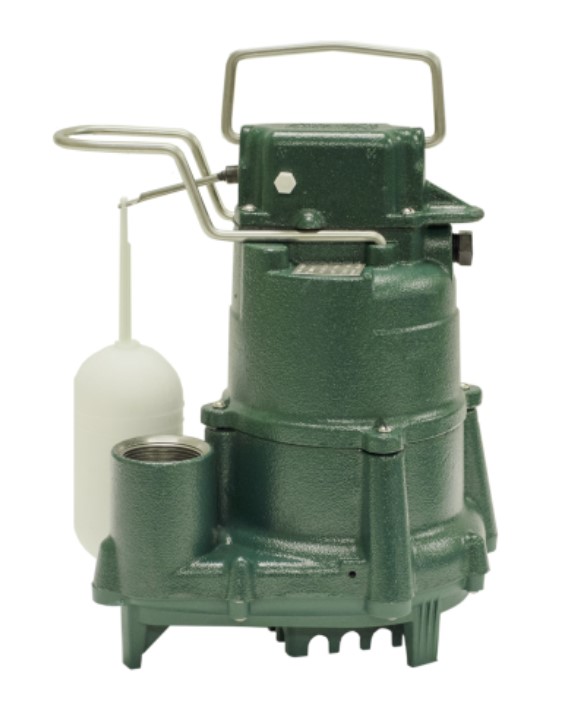

Float-operated 2-pole mechanical switch
Permanent split capacitor motor, oil-filled and hermetically-sealed, automatic reset thermal overload protection
Bearings – upper and lower oil-fed cast iron
Carbon and ceramic shaft seal
Entire unit pressure-tested after assembly
Watertight, neoprene square ring between motor and pump housing
Maximum temperature for effluent or dewatering: 130 °F (54 °C)
Passes 1/2” (13 mm) spherical solids
No screens to clog
1-1/2” NPT discharge (1-1/2” x 2” PVC adapter included with BN and BE Models)
On point: 9-1/2” (24 cm)
Off point: 3” (8 cm)
Major width: 10-1/8″ (25.7 cm)
Major height: 12″ (30 cm)
Simplex and duplex systems available
Packaged systems available
Automatic and non-automatic available

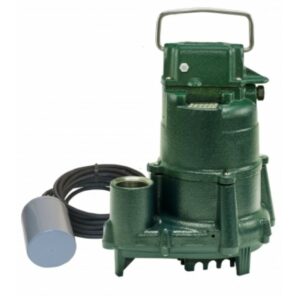

Available with piggyback variable level float switch
3 year limited warranty
Consult Factory for Special ApplicationsElectrical alternators for duplex systems are available and supplied with an alarm
Mechanical alternators for duplex systems are available with or without alarm switches
Variable level float switches are available for controlling single and three phase systems
Double piggyback, variable level float switches are available for variable level long cycle controls
Refer to FM1922 and FM0806 for temperatures above 130 °F (54 °C)
