$642.63

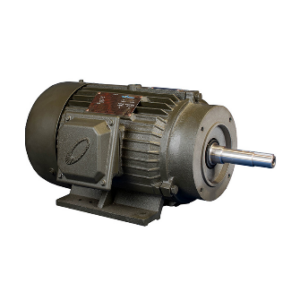

The TECO Westinghouse Pump CJM00345 motor delivers legendary power and modern performance for demanding industrial, marine, and utility applications. Built with 3 phase, 3 HP, 575 Voltage Rating, 1800 RPM Speed, 182JM Frame, C-Face / Rigid mounting, 3 Amps, F Insulation Class, Continuous Duty, TEFC Enclosure Type, this motor ensures exceptional reliability, high torque output, and long operational life, even in the harshest environments. Featuring a 3, TEFC, and C-Face / Rigid, the TECO Westinghouse motor is engineered for efficiency and endurance, utilizing Thermalastic® insulation systems that resist moisture, heat, and thermal stress.
Its robust AC and DC designs, coupled with precision-balanced rotors and heavy-duty bearings, make it ideal for continuous-duty applications such as pumps, compressors, conveyors, fans, and marine drives.
Each unit is built to meet or exceed NEMA and IEC standards, supporting both direct-on-line and inverter-duty systems. Whether used in steel mills, petrochemical facilities, mining operations, or power generation, the TECO Westinghouse Pump CJM00345 motor delivers the durability, efficiency, and performance trusted by professionals worldwide.
Looking for expert help selecting the right TECO Westinghouse motor? Contact Electracore, your trusted Canadian TECO Westinghouse supplier, for genuine products, technical support, and fast nationwide shipping.
| Total Sales | 0 |
|---|---|
| Brand | TECO-Westinghouse |
| General Category | Pump |
| Horsepower | 3 |
| Voltage | 575 |
| RPM | 1800 |
| Amps | 3 |
| Frequency | 60 Hz |
| Frame | 182JM |
| Enclosure | TEFC |
| Rotation | Reversible |
| Mounting | C-Face / Rigid |
| Phases | 3 |
| Motor Orientation | Horizontal |
| Number Of Poles | 4 |
| CSA Certified | Class I, Div 2, Groups B, C & D |
| Duty Cycle | Continuous |
| Efficiency | 89.5 |
| Insulation Class | F |
| IP Rating | IP54 |
| KVA Code | K |
| NEMA Design | B |
| Power Rating In Kw | 2.24 |
| Speeds | 1 Speed |
| Power Factor | 84 |
| Service Factor | 1.15 |
| De Bearing Size | 6307ZZ |
| Ode Bearing Size | 6306ZZ |
| Shaft Diameter | 1.00" (0.875") |
| Shaft Extension | 4.25" |
| Frame Material | Cast Iron |
| Weight | 44.898 |
| Warranty | 3-Year |
| Locked Rotor Current | 25.6 AMP |
| Leads | 3 |
| Connection | Wye |
| Variable Torque Ratio | 20:01 |
| Constant Torque Ratio | 10:01 |
| Connection Box Location | F1 |
| Ambient Temp | -40 to 40 °C |
| Temp Code | T3C |
| Grease | Multemp SRL |
| Greasable | No |
| Temp Code Sine Wave Power | T3C |
| Dim Unit | cm |
| Length | 109.22 |
| Width | 88.9 |
| Height | 63.5 |
| Weight Unit | kg |
| Teco Datapack Link | /product-pdf/TECO-DATAPACK/tSbQdv9b-g8d-48-6.pdf |
| Teco Manual Link | /product-pdf/TECO-MANUALS/t9Tm7OMRj_ik-27-19.pdf |
| Teco Brochure Link | /product-pdf/TECO_BROCHURE/tyrSwERcD99u-5-75.pdf |
| Teco Features Link | /product-pdf/TECO-FEATURESHEET/t9Tm6AtSGn9F-26-9.pdf |
| Ref Product Title 1 | jmpp-17 |
| Product 1 Url | /product/jmpp-17 |
| Ref Product Title 2 | jm003504npw01 |
| Product 2 Url | /product/jm003504npw01 |
| Ref Product Title 3 | uj3p2gm |
| Product 3 Url | /product/uj3p2gm |
| Ref Product Title 4 | jm003504npw22 |
| Product 4 Url | /product/jm003504npw22 |
| Teco Datapack | tSbQdv9b-g8d-48-6.pdf |
| Teco Manual | t9Tm7OMRj_ik-27-19.pdf |
| Teco Brochure | tyrSwERcD99u-5-75.pdf |
| Teco Features | t9Tm6AtSGn9F-26-9.pdf |
Enter your email and we’ll confirm availability for this item before you place your order.
TECO-Westinghouse, born from the heritage of Westinghouse and TECO innovation, delivers electric motors and power solutions from fractional duty to 100,000 HP.
Their products, power pumps, compressors, grinders, marine systems, and mining equipment, are used across various industries worldwide, built for rugged use in petrochemical, utility, steel, and marine environments.
As a trusted Canadian supplier and dealer, Electracore brings TECO-Westinghouse’s full line to your doorstep. We offer genuine products, expert support, and fast shipping to customers across Canada.

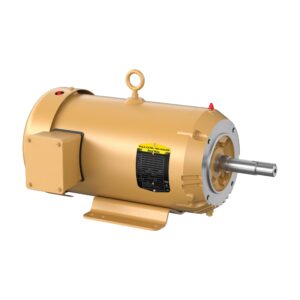

Matched products based on similar HP, RPM, Frame, Voltage, and Enclosure type.
