APH07565-841 Robust IEEE 841 Motors for Heavy-Duty Applications by TECO-Westinghouse Motors

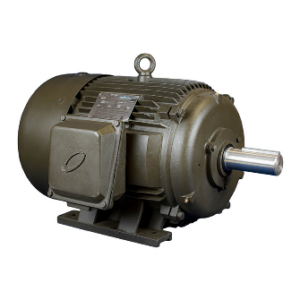

TECO-Westinghouse APH07565-841 75 HP 575V 1200 RPM 405T TEFC 3-Phase Motor

Name: TECO-Westinghouse APH07565-841 75 HP 575V 1200 RPM 405T TEFC 3-Phase Motor
Brand: TECO-Westinghouse
SKU: APH07565-841
Price: 10708.02 CAD
Availability: InStock

Robust IEEE 841 Motors for Heavy-Duty Applications Motor

Brand: TECO-Westinghouse Motors

Category: Robust IEEE 841 Motors for Heavy-Duty Applications, Motors

$10,708.02

75HP

575Voltage

1200RPM

405TFrame

The TECO Westinghouse Robust IEEE 841 Motors for Heavy-Duty Applications APH07565-841 motor delivers legendary power and modern performance for demanding industrial, marine, and utility applications. Built with 3 phase, 75 HP, 575 Voltage Rating, 1200 RPM Speed, 405T Frame, Rigid mounting, 68.7 Amps, F Insulation Class, Continuous Duty, TEFC Enclosure Type, this motor ensures exceptional reliability, high torque output, and long operational life, even in the harshest environments. Featuring a 3, TEFC, and Rigid, the TECO Westinghouse motor is engineered for efficiency and endurance, utilizing Thermalastic® insulation systems that resist moisture, heat, and thermal stress.

Its robust AC and DC designs, coupled with precision-balanced rotors and heavy-duty bearings, make it ideal for continuous-duty applications such as pumps, compressors, conveyors, fans, and marine drives.

Each unit is built to meet or exceed NEMA and IEC standards, supporting both direct-on-line and inverter-duty systems. Whether used in steel mills, petrochemical facilities, mining operations, or power generation, the TECO Westinghouse Robust IEEE 841 Motors for Heavy-Duty Applications APH07565-841 motor delivers the durability, efficiency, and performance trusted by professionals worldwide.

Looking for expert help selecting the right TECO Westinghouse motor? Contact Electracore, your trusted Canadian TECO Westinghouse supplier, for genuine products, technical support, and fast nationwide shipping.

Authorized Canadian distributorExpert tech support (phone & email)30-day return policy

Brand	TECO-Westinghouse
General Category	Motors > IEEE 841
Horsepower	75
Voltage	575
RPM	1200
Amps	68.7
Frequency	60 Hz
Frame	405T
Enclosure	TEFC
Rotation	Reversible
Mounting	Rigid
Phases	3
Motor Orientation	Horizontal
Number Of Poles	6
CSA Certified	Class I, Div 2, Groups B, C & D
Duty Cycle	Continuous
Efficiency	94.5
Insulation Class	F
IP Rating	IP56
KVA Code	G
NEMA Design	B
Power Rating In Kw	55.95
Speeds	1 Speed
Power Factor	86.5
Service Factor	1.15
De Bearing Size	6317C3
Ode Bearing Size	6313ZC3
Shaft Diameter	2.875"
Shaft Extension	7.16"
C Dim	37.99"
Frame Material	Cast Iron
Weight	607.710
Warranty	3-Year
Locked Rotor Current	434.4 AMP
Leads	3
Connection	Delta
Variable Torque Ratio	20:01
Constant Torque Ratio	10:01
Connection Box Location	F1
Ambient Temp	-40 to 40 °C
Temp Code	T3C
Grease	Polyrex EM
Greasable	Yes
Temp Code Sine Wave Power	T3
Dim Unit	cm
Length	97
Width	76
Height	53
Weight Unit	kg
Teco Datapack Link	/product-pdf/TECO-DATAPACK/tSbQdv9b-g8d-49-3.pdf
Teco Manual Link	/product-pdf/TECO-MANUALS/t9Tm7OMRj_ik-5-65.pdf
Teco Brochure Link	/product-pdf/TECO_BROCHURE/tyrSwERcD99u-24-14.pdf
Teco Features Link	/product-pdf/TECO-FEATURESHEET/0
Ref Product Title 1	8d75p3g
Product 1 Url	/product/8d75p3g
Ref Product Title 2	ecp84404t-5
Product 2 Url	/product/ecp84404t-5
Ref Product Title 3	ie075506w22is
Product 3 Url	/product/ie075506w22is
Ref Product Title 4	8p75p3gb
Product 4 Url	/product/8p75p3gb
Teco Datapack	tSbQdv9b-g8d-49-3.pdf
Teco Manual	t9Tm7OMRj_ik-5-65.pdf
Teco Brochure	tyrSwERcD99u-24-14.pdf
Teco Features	0

Enter your email and we’ll confirm availability for this item before you place your order.

Product Info

Brand: TECO-Westinghouse

HP: 75

Voltage: 575

RPM: 1200

Amperage: 68.7

Frame: 405T

Enclosure: TEFC

Phase: 3

Efficiency Rating: 94.5

Mounting Type: Rigid

Insulation Class: F

Service Factor: 1.15

Duty Cycle: Continuous

Ambient Temperature Rating: -40 to 40 °C

TECO-Westinghouse, born from the heritage of Westinghouse and TECO innovation, delivers electric motors and power solutions from fractional duty to 100,000 HP.

Their products, power pumps, compressors, grinders, marine systems, and mining equipment, are used across various industries worldwide, built for rugged use in petrochemical, utility, steel, and marine environments.

As a trusted Canadian supplier and dealer, Electracore brings TECO-Westinghouse’s full line to your doorstep. We offer genuine products, expert support, and fast shipping to customers across Canada.
