APH0202 General Purpose by TECO-Westinghouse Motors

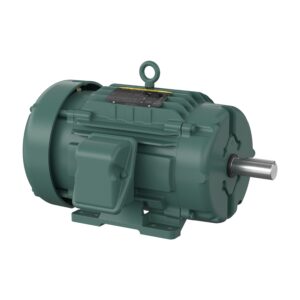

TECO-Westinghouse APH0202 20 HP 460V 3600 RPM 256T TEFC 3-Phase Motor

Name: TECO-Westinghouse APH0202 20 HP 460V 3600 RPM 256T TEFC 3-Phase Motor
Brand: TECO-Westinghouse
SKU: APH0202
Price: 1801.41 CAD
Availability: InStock

General Purpose Motor

Brand: TECO-Westinghouse Motors

Category: General Purpose, Motors

$1,801.41

The TECO Westinghouse General Purpose APH0202 motor delivers legendary power and modern performance for demanding industrial, marine, and utility applications. Built with 3 phase, 20 HP, 460 Voltage Rating, 3600 RPM Speed, 256T Frame, Rigid mounting, 21.9 Amps, F Insulation Class, Continuous Duty, TEFC Enclosure Type, this motor ensures exceptional reliability, high torque output, and long operational life, even in the harshest environments. Featuring a 3, TEFC, and Rigid, the TECO Westinghouse motor is engineered for efficiency and endurance, utilizing Thermalastic® insulation systems that resist moisture, heat, and thermal stress.

Its robust AC and DC designs, coupled with precision-balanced rotors and heavy-duty bearings, make it ideal for continuous-duty applications such as pumps, compressors, conveyors, fans, and marine drives.

Each unit is built to meet or exceed NEMA and IEC standards, supporting both direct-on-line and inverter-duty systems. Whether used in steel mills, petrochemical facilities, mining operations, or power generation, the TECO Westinghouse General Purpose APH0202 motor delivers the durability, efficiency, and performance trusted by professionals worldwide.

Looking for expert help selecting the right TECO Westinghouse motor? Contact Electracore, your trusted Canadian TECO Westinghouse supplier, for genuine products, technical support, and fast nationwide shipping.

Free Canadian Shipping on orders 499+Authorized Canadian distributorExpert tech support (phone & email)30-day return policy

Total Sales	0
Brand	TECO-Westinghouse
General Category	Motors > General Purpose
Horsepower	20
Voltage	460
RPM	3600
Amps	21.9
Frequency	60 Hz
Frame	256T
Enclosure	TEFC
Rotation	Reversible
Mounting	Rigid
Phases	3
Motor Orientation	Horizontal
Number Of Poles	2
CSA Certified	Class I, Div 2, Groups B, C & D
Duty Cycle	Continuous
Efficiency	92.4
Insulation Class	F
IP Rating	IP55
KVA Code	G
NEMA Design	B
Power Rating In Kw	14.92
Speeds	1 Speed
Power Factor	92.5
Service Factor	1.15
De Bearing Size	6309ZC3
Ode Bearing Size	6307ZC3
Shaft Diameter	1.625"
Shaft Extension	3.9"
C Dim	25.52"
Frame Material	Cast Iron
Weight	152.834
Warranty	3-Year
Locked Rotor Current	145 AMP
Leads	3
Connection	Delta
Variable Torque Ratio	20:01
Constant Torque Ratio	10:01
Connection Box Location	F1
Ambient Temp	-40 to 40 °C
Temp Code	T3C
Grease	Polyrex EM
Greasable	Yes
Temp Code Sine Wave Power	T3B
Dim Unit	cm
Length	66
Width	48
Height	33
Weight Unit	kg
Teco Datapack Link	/product-pdf/TECO-DATAPACK/tSbQdv9b-g8d-22-59.pdf
Teco Manual Link	/product-pdf/TECO-MANUALS/t9Tm7OMRj_ik-41-10.pdf
Teco Brochure Link	/product-pdf/TECO_BROCHURE/tyrSwERcD99u-21-66.pdf
Teco Features Link	/product-pdf/TECO-FEATURESHEET/0
Ref Product Title 1	gt1024a
Product 1 Url	/product/gt1024a
Ref Product Title 2	pdh0202
Product 2 Url	/product/pdh0202
Ref Product Title 3	elp20p1d
Product 3 Url	/product/elp20p1d
Ref Product Title 4	cd20p1e
Product 4 Url	/product/cd20p1e
Teco Datapack	tSbQdv9b-g8d-22-59.pdf
Teco Manual	t9Tm7OMRj_ik-41-10.pdf
Teco Brochure	tyrSwERcD99u-21-66.pdf
Teco Features	0

Enter your email and we’ll confirm availability for this item before you place your order.

Product Info

Brand: TECO-Westinghouse

HP: 20

Voltage: 460

RPM: 3600

Amperage: 21.9

Frame: 256T

Enclosure: TEFC

Phase: 3

Efficiency Rating: 92.4

Mounting Type: Rigid

Insulation Class: F

Service Factor: 1.15

Duty Cycle: Continuous

Ambient Temperature Rating: -40 to 40 °C
