9644 Fan and Blower Motors by Century Motors

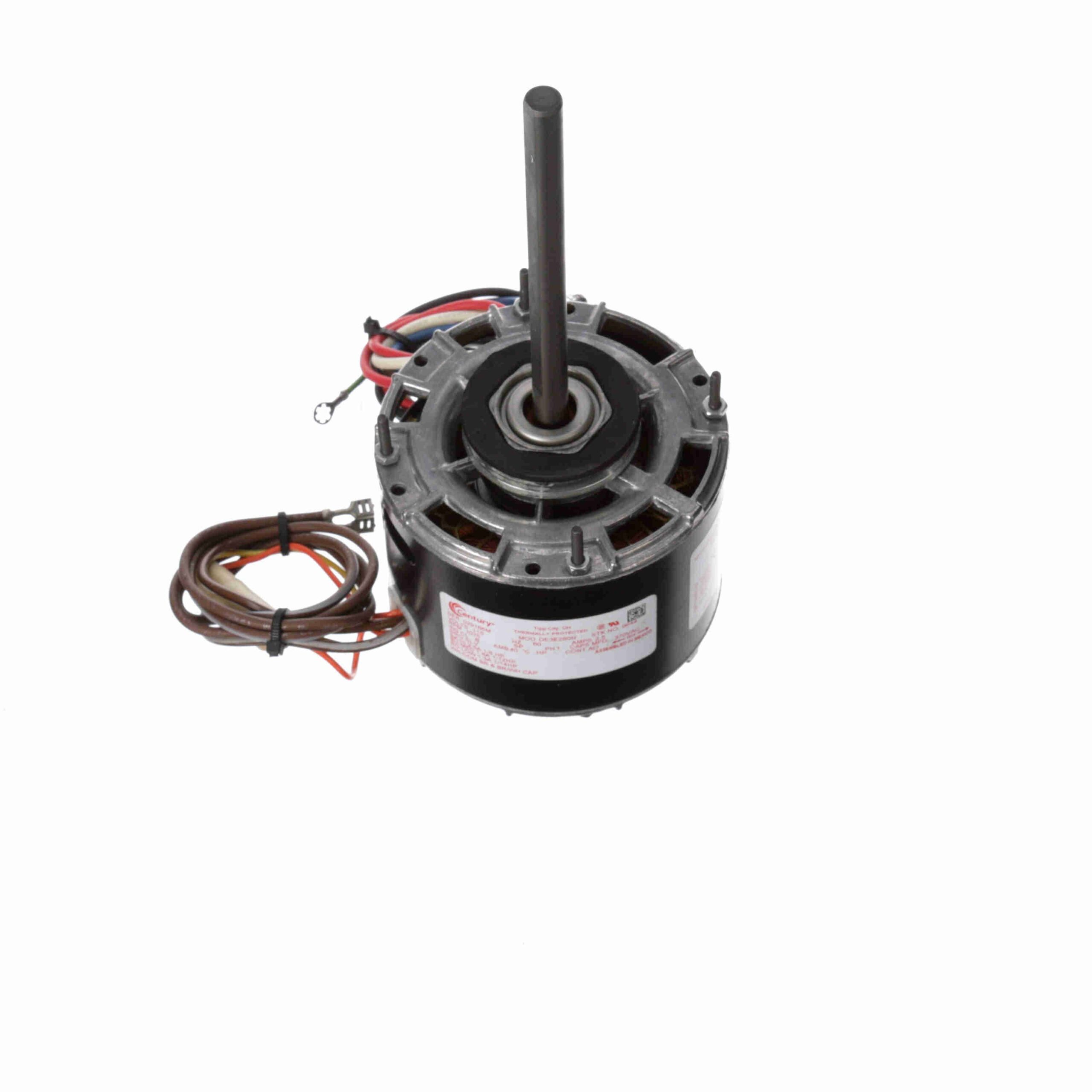

Century 9644 1/8 HP 115V 1200 RPM OAO 1-Phase Motor

Name: Century 9644 1/8 HP 115V 1200 RPM OAO 1-Phase Motor
Brand: Century
SKU: 9644
Price: 1106.82 CAD
Availability: InStock

Fan and Blower Motors HVAC Motors

Brand: Century Motors

Category: Fan and Blower Motors, HVAC Motors

$1,106.82

Our selection of Century Motors Fan and Blower Motors 9644 drives offers reliable variable speed control for Fan and Blower Motors applications. Select a drive rated for 1/8-rated motors, with a wide range of input and output voltage options.

They feature 1 phase, 1/8 HP, 115 Voltage Rating, 1200 RPM Speed, Resilient Rings mounting, 2.5/1.6/1.3 Amps, B Insulation Class, Air Over Duty, OAO Enclosure Type. As trusted Century Motors motor suppliers and dealers, we make it easy to find the right model for industrial, commercial, or HVAC use.

The Century Motors is perfect for fans, blowers, furnaces, and air conditioners, providing a reliable, direct replacement that ensures consistent airflow and long system life.

Need help selecting the right motor speed controller or finding a legacy replacement? Contact our motor experts today.

Free Canadian Shipping on orders 499+Authorized Canadian distributorExpert tech support (phone & email)30-day return policy

Total Sales	0
Brand	Century
General Category	AC Motors – NEMA
Product Category	HVAC/R Motors
Sub Category	Fan and Blower Motors
Horsepower	1/8
Voltage	115
RPM	1200
Amps	2.5/1.6/1.3
Frequency	60
Enclosure	OAO
Rotation	Reversible
Mounting	Resilient Rings
Max Ambient	40°C
Phases	1
Motor Orientation	Horizontal
Motor Type	Permanent Split Capacitor
Number Of Poles	6
CSA Certified	Y
CE Certified	N
Duty Cycle	Air Over
Insulation Class	B
Starting Type	Across The Line
Overload Protector	Automatic
Power Rating In Kw	0.10
Speeds	3
Service Factor	1
Speed2	1075
De Bearing Type	Sleeve
Ode Bearing Type	Sleeve
Dim Unit	IN
Length	11.88
Width	5.81
Height	7.31
Shaft Diameter	0.500
Shaft Extension	6.5
Shaft Type	Flat
C Dim	10.68
Frame Length	3.17
Frame Material	Rolled Steel
Weight Unit	LB
Weight	8.00
Url-datapack	https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4565/Article_9644_DataPack_9.pdf
Outline Drawing No	DE3E7280-S01
Ul	Recognized
Manufacturer	Regal Beloit
Part ID	9644
UPC	786674009180
Supersedes	N/A
Features	Furnace Blower – Air Handler – Fan Coil – Air Conditioning Motor 5" Diameter – 42 Frame Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor) Thermally Protected Semi-Enclosed Air Over Class B Insulation, 40°C Ambient Sleeve Bearing 1/2" Diameter Shaft with FlatЀ" Leads Extended Studs Shaft End, Resilient Ring Mounting

Enter your email and we’ll confirm availability for this item before you place your order.

Product Info

Furnace Blower – Air Handler – Fan Coil – Air Conditioning Motor 5″ Diameter – 42 Frame Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor) Thermally Protected Semi-Enclosed Air Over Class B Insulation, 40°C Ambient Sleeve Bearing 1/2″ Diameter Shaft with FlatЀ” Leads Extended Studs Shaft End, Resilient Ring Mounting

Brand: Century

HP: 1/8

Voltage: 115

RPM: 1200

Amperage: 2.5/1.6/1.3

Frame: 42Y

Enclosure: OAO

Phase: 1

-

Mounting Type: Resilient Rings

Insulation Class: B

Service Factor: 1

Duty Cycle: Air Over

-

Century Motors Motors For over 100 years, Century® has led the electric motor industry with breakthrough solutions across heating, ventilation, air conditioning (HVAC), recreational water, and industrial sectors. As a trusted partner to global clients, Century delivers high-performance, energy-efficient, and durable motor systems designed to meet evolving demand in commercial, industrial, residential, and recreational applications.

Whether your project requires an HVAC blower, pool pump motor, or heavy-duty industrial drive, Century continues to push boundaries, providing trusted, future-ready solutions for modern systems.

Downloads
